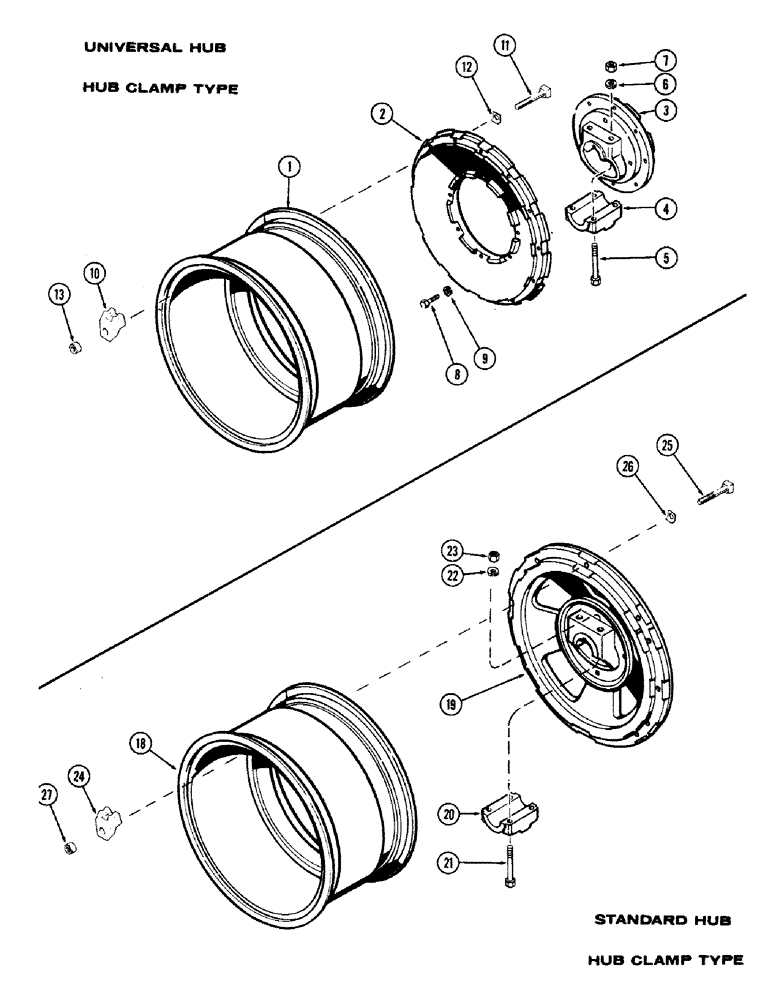

Запчасти Case IH 870 (200) - REAR WHEELS W/34" RIMS, MANUAL ADJUSTABLE, (USED WITH 3-3/16" DIAMETER AXLE) (06) - POWER TRAIN

1

A33168

RIM

- rear wheel (Takes 16.9 x 34 tire)

2шт.

1

A57045

RIM

- rear wheel (Takes 18.4 x 34 tire)

2шт.

2

A33172

WHEEL

- rear, universal hub

2шт.

3

A22668

HUB ASSY. - universal (Cast) (includes ref. 4 - 7)

2шт.

4

A57032

CAP

- hub, rear wheel

1шт.

5

A22389

WHEEL BOLT

BOLT - cap to hub (7/8 x 7-1/2" N.F., hex)

4шт.

6

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

7

25-1114

NUT,7/8"-14, G5

- hex (7/8" N.F.)

4шт.

8

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Rear wheel to hub Hex, 5/8"-11 x 2 1/2", G5

16шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

10

A57654

CLAMP

- double ramp, Serial Range: rim-wheel

12шт.

11

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- sq.hd. (3/4 x 3-1/2" N.C., cadmium plated)

12шт.

12

A34799

LOCK WASHER

- lock, rim to wheel clamp bolt

12шт.

13

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex (3/4" N.C. heavy, cadmium plated)

12шт.

18

A33168

RIM

- rear wheel (Takes 16.9 x 34 tire)

2шт.

18

A57045

RIM

- rear wheel (Takes 18.4 x 34 tire)

2шт.

19

A60016

RIM

WHEEL ASSY. - rear, standard hun (includes ref. 20 - 23)

2шт.

20

A57032

CAP

- hub

1шт.

21

A22389

WHEEL BOLT

BOLT - cap to wheel hub (7/8 x 7-1/2" N.F. hex)

4шт.

22

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

23

25-1114

NUT,7/8"-14, G5

- hex (7/8" N.F.)

4шт.

24

A57654

CLAMP

- double ramp, Serial Range: rim-wheel

12шт.

25

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- sq. hd. (3/4 x 3-1/2" N.C. cadmium plated)

12шт.

26

A34799

LOCK WASHER

- lock, rim to wheel clamp bolt

12шт.

27

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex (3/4" N.C. cadmium plated)

12шт.
