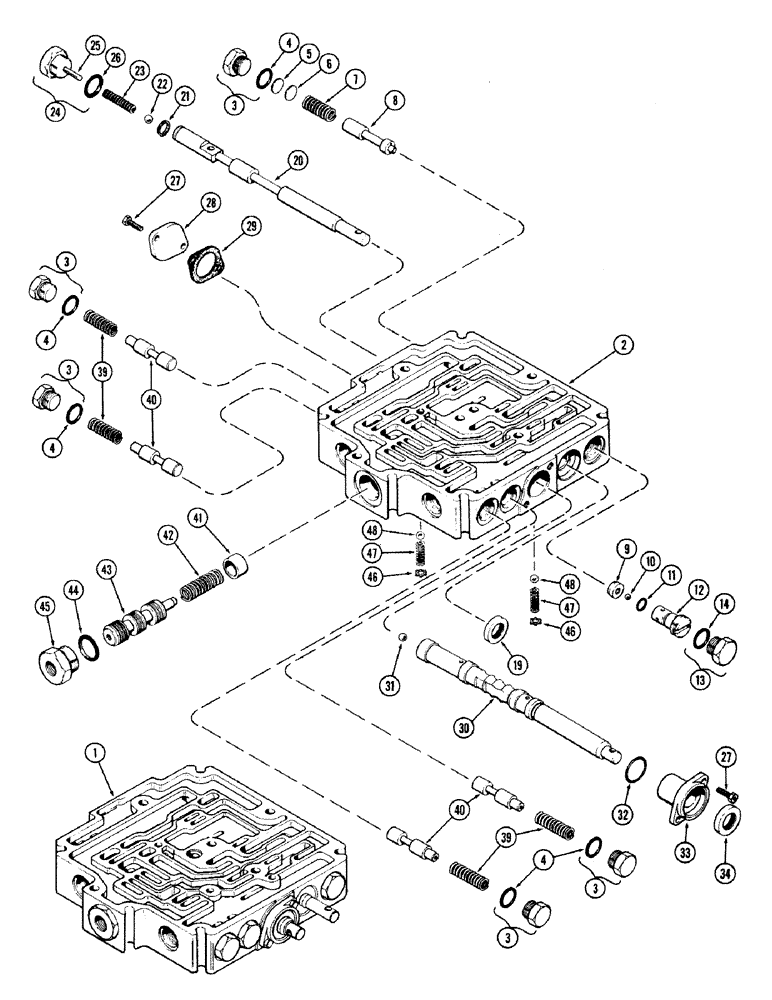

Запчасти Case IH 870 (171C) - A59070 TRANSMISSION CONTROL VALVE, POWER SHIFT, USED PRIOR TO TRANS. SER. NO. 2359227 (06) - POWER TRAIN

1

A59070

HYDRAULIC VALVE

VALVE ASSY. - trans. control (includes ref. 2 - 14, 19 - 34 and 39 - 48)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - trans. control valve (Order A59070)

1шт.

3

A62564

PLUG

ASSY. - pressure regulator

5шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

Part of Case flow divider & PTO control valve repair kit P/N A42884

1шт.

5

A37554

SHIM,.0269" Thk

Regulator adjusting (10 PSI) .0269" Thk

1шт.

6

A37555

SHIM,.0120" Thk

Regulator adjusting (5 PSI) .0120" Thk

1шт.

7

A58436

SPRING

- compression, regulator (1-3/8" free length)

1шт.

8

A37551

PLUNGER

- pressure regulator

1шт.

9

A58441

SEAT

- ball, shuttle valve

1шт.

10

211-7

BALL,1/4" Dia

- shuttle valve ball seat 1/4" Dia

1шт.

12

A58440

SLEEVE

- shuttle valve

1шт.

11

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING l - shuttle valve sleeve (3/32 x 1/2 x 11/16")

1шт.

Part of control valve seal kit P/N A42885

1шт.

13

86512512

PLUG,7/8" - 14 ORB

(Incl. Ref. 14) Hex Hd, 7/8"-14 ORB

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

Part of control valve seal kit P/N A42885

1шт.

19

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- clutch control spool

1шт.

Part of control valve seal kit P/N A42885

1шт.

20

A60515

SPOOL - clutch control

1шт.

21

G46176

SNAP RING,#56, Ext

RING, snap, , clutch control spool #56, Ext

1шт.

22

211-8

BALL,9/32" Dia

- chrome steel, (grade 3) 9/32" Dia

1шт.

23

A60517

SPRING - clutch modulator (1-43/64" free length)

1шт.

25

A60519

PIN - spring guide

1шт.

24

A60516

PLUG ASSY. - modulator (includes ref. 25 & 26)

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

Part of control valve seal kit P/N A42885

1шт.

27

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

- 1/4 x 3/4" N.C. hex, sckt. hd. cap

4шт.

28

A58429

COVER

- selector spool

1шт.

29

A58427

GASKET

- selector spool cover

1шт.

Part of control valve seal kit P/N A42885

1шт.

30

A60550

SPOOL

ASSY. - selector (includes ref. 31)

1шт.

31

NSS

NOT SOLD SEPARAT

BALL - chrome steel (9/32" dia.) (Order A60550)

1шт.

32

A59066

O-RING,1.239" ID x 1.379" OD

"O" RING - selector spool sleeve (1-1/4 x 1-3/8 x 1/16")

1шт.

Part of control valve seal kit P/N A42885

1шт.

33

A58426

SLEEVE

- selector spool

1шт.

34

A58428

SEAL

- oil, selector spool

1шт.

Part of control valve seal kit P/N A42885

1шт.

39

A58271

SPRING

- spool return (1-49/64" free length)

4шт.

40

A59063

SPOOL

- pilot

4шт.

41

A61033

SLEEVE

- reverse lock-out spool

1шт.

43

A61032

SPOOL

- reverse lock-out

1шт.

42

A58432

SPRING

- compression, reverse lock-out spool

1шт.

44

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

Part of control valve seal kit P/N A42885

1шт.

45

A58434

BUSHING - boss reducer, reverse lock-out spool

1шт.

46

A58439

RETAINER

- retard check spring

2шт.

47

A58438

SPRING

- compression, retard check (15/16" free length)

2шт.

48

211-8

BALL,9/32" Dia

- pilot release retard check 9/32" Dia

2шт.

A42885

SEAL KIT

SEAL KIT - control valve (includes ref. 4, 11, 14, 19, 26, 29, 32, 34 and 44)

1шт.
