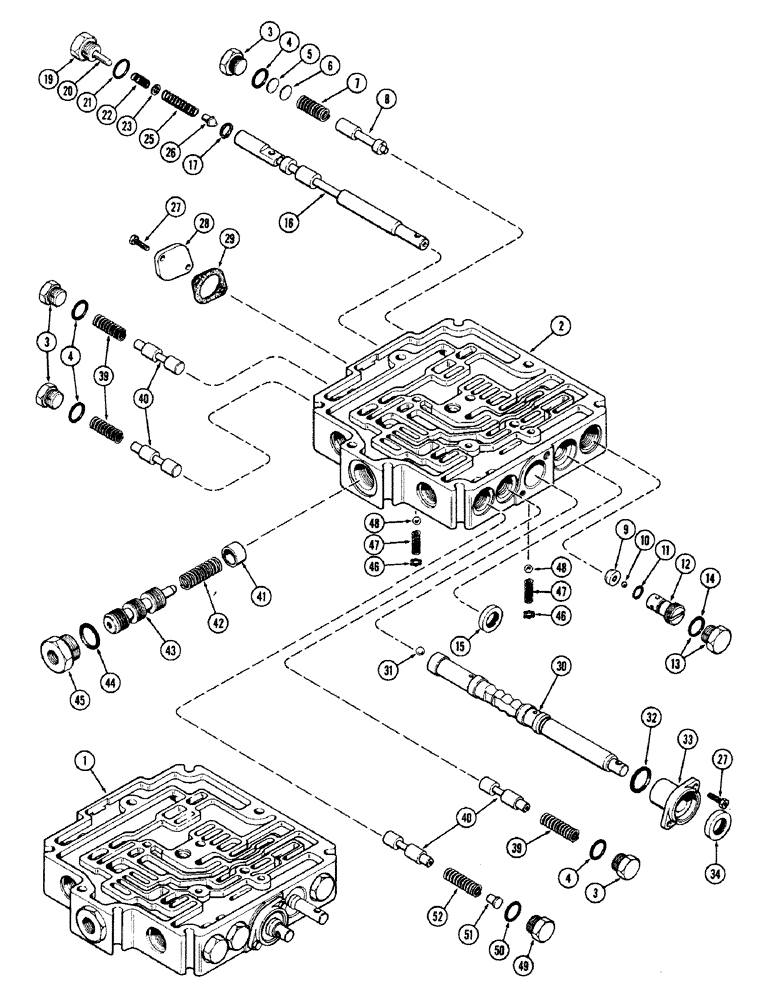

Запчасти Case IH 870 (170) - A62634 TRANSMISSION CONTROL VALVE, POWER SHIFT, 1ST USED TRANSMISSION SERIAL. NUMBER 2366001 (06) - POWER TRAIN

1

A62634

CONTROL VALVE

VALVE ASSY. - transmission control (includes ref. 2 - 17, 19 - 23, 25 - 34 and 39 - 52)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order A62634)

1шт.

3

A62564

PLUG

- pressure regulator

4шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

4шт.

Part of control valve seal kit P/N A42885

1шт.

5

A37554

SHIM,.0269" Thk

Pressure regulating (10 PSI) .0269" Thk

1шт.

6

A37555

SHIM,.0120" Thk

Pressure regulating (5 PSI) .0120" Thk

1шт.

7

A58436

SPRING

- compression, regulator (1-3/8" free length)

1шт.

8

A37551

PLUNGER

- pressure regulator

1шт.

9

A58441

SEAT

- ball, shuttle valve

1шт.

10

211-7

BALL,1/4" Dia

- shuttle valve ball seat 1/4" Dia

1шт.

11

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - 3/32 x 1/2 x 11/16"

1шт.

Part of control valve seal kit P/N A42885

1шт.

12

A58440

SLEEVE

- shuttle valve

1шт.

13

86512512

PLUG,7/8" - 14 ORB

- Shuttle valve bore (Incl. Ref. 14) Hex Hd, 7/8"-14 ORB

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

Part of control valve seal kit P/N A42885

1шт.

15

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- clutch control spool

1шт.

Part of control valve seal kit P/N A42885

1шт.

16

A62636

SPOOL

- clutch control

1шт.

17

G46176

SNAP RING,#56, Ext

RING, snap, , clutch control spool (includes ref. 19 - 23, 25 & 26) #56, Ext

1шт.

A42887

KIT

- clutch modulator

1шт.

19

A61985

PLUG

ASSY. - modulator (includes ref. 20 & 21)

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - spring guide (Order A61985)

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

Part of control valve seal kit P/N A42885

1шт.

22

A61988

SPRING

- clutch modulator, 49/64" free length

1шт.

23

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide (includes ref. 25 & 26)

1шт.

A60155

SPRING

POINT & SPRING ASSY. - clutch modulator (includes ref. 25 & 26)

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - modulator, 1-39/64" free length

1шт.

26

NSS

NOT SOLD SEPARAT

POINT - modulator

1шт.

27

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

- 1/4 x 3/4" N.C. hex, sckt. hd. cap

4шт.

28

A58429

COVER

- selector spool

1шт.

29

A58427

GASKET

- selector spool cover

1шт.

Part of control valve seal kit P/N A42885

1шт.

30

A60550

SPOOL

ASSY. - selector (includes ref. 31)

1шт.

31

NSS

NOT SOLD SEPARAT

BALL - 9/32" dia. chrome steel (Order A60550)

1шт.

32

A59066

O-RING,1.239" ID x 1.379" OD

"O" RING - 1-1/4 x 1-3/8 x 1/16"

1шт.

Part of control valve seal kit P/N A42885

1шт.

33

A58426

SLEEVE

- selector spool

1шт.

34

A58428

SEAL

- oil, selector spool

1шт.

Part of control valve seal kit P/N A42885

1шт.

39

A58271

SPRING

- spool return, 1-49/64" free length

3шт.

40

A59063

SPOOL

- pilot

4шт.

41

A61033

SLEEVE

- reverse lock-out spool

1шт.

42

A58432

SPRING

- reverse lock-out spool

1шт.

43

A61032

SPOOL

- reverse lock-out

1шт.

44

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

Part of control valve seal kit P/N A42885

1шт.

45

A58434

BUSHING - reducer, reverse lock-out spool

1шт.

46

A62641

PLUG

RETAINER - retard check spring

2шт.

47

A58438

SPRING

- retard check, 15/16" free length

2шт.

48

211-8

BALL,9/32" Dia

- pilot release retard check 9/32" Dia

2шт.

49

A62641

PLUG

- pilot spool bore

1шт.

50

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

Part of control valve seal kit P/N A42885

1шт.

51

A62640

STOP

- pilot spool return, C-4

1шт.

52

A62639

SPRING

- pilot spool return, C-4

1шт.

A42885

SEAL KIT

SEAL KIT - control valve, Includes: Ref. 4, 11, 14, 15, 21, 29, 32, 34, 44 and 50

1шт.
