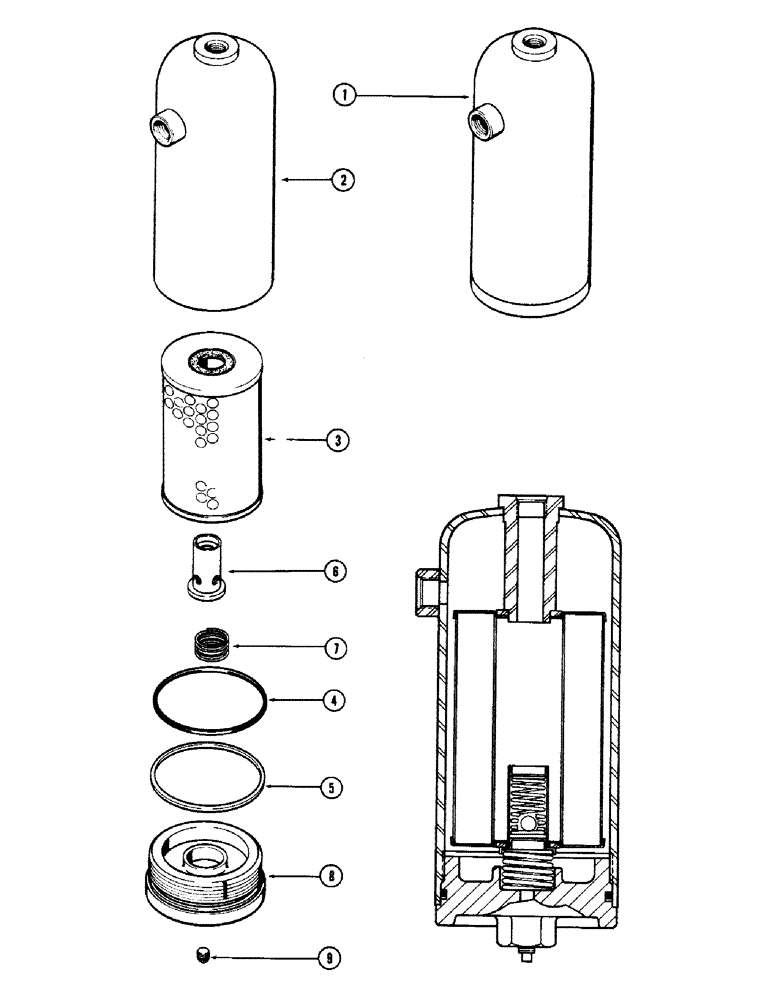

Запчасти Case IH 870 (168) - A60766 HYDRAULIC OIL FILTER, POWER SHIFT (06) - POWER TRAIN

1

A60766

SPROCKET

FILTER ASSY. - hydraulic oil (10 Micron) (White wrapper) (includes ref. 2 - 9)

1шт.

2

A60767

BODY

- oil filter (includes ref. 3, 4 & 5)

1шт.

A61235

KIT

- oil filter element (Not illust.) (includes ref. 3, 4 & 5)

1шт.

3

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter (10 Micron) (White color code) (Order A61235)

1шт.

4

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - sealing, oil filter body to cap (4 x 4-1/4 x 1/8")

1шт.

5

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

(Leather) Oil filter, Serial Range: body-cap

1шт.

6

D37207

VALVE

- relief, oil filter

1шт.

7

D31212

SPRING

- retaining, oil filter

1шт.

8

A60765

CAP

- end, oil filter

1шт.

9

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe (1/8" square head)

1шт.
