(167C) - TRANSMISSION CONTROL VALVE, COVERS, GASKETS & TUBES, POWER SHIFT, USED PRIOR TO TRANS. S/N 2366001

Запчасти Case IH 870 (167C) - TRANSMISSION CONTROL VALVE, COVERS, GASKETS & TUBES, POWER SHIFT, USED PRIOR TO TRANS. S/N 2366001 (06) - POWER TRAIN

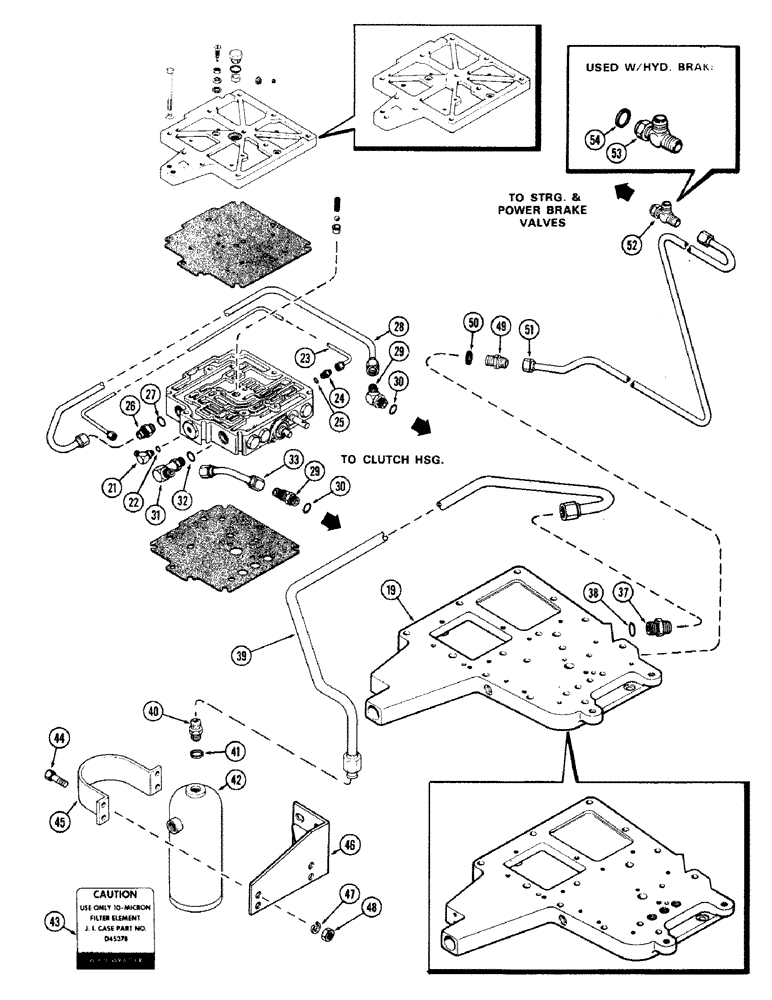

Схема запчастей Case IH 870 - (167C) - TRANSMISSION CONTROL VALVE, COVERS, GASKETS & TUBES, POWER SHIFT, USED PRIOR TO TRANS. S/N 2366001 (06) - POWER TRAIN
42
22
29
28
52
31
47
21
32
49
43
24
39
45
19
46
41
44
33
25
54
29
26
37
51
53
38
50
48
23
30
27
40
30
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

21

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSY. - 90 degree adjustable, 1/4" O.D. x 7/16" P.T. (includes ref. 22)

1шт.

22

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - 1/4 x 23/64 x 5/64"

1шт.

23

A60656

TUBE

- pilot, trans. control valve reverse lock-out

1шт.

24

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

CONNECTOR ASSY. - 1/4" tube, 37 degree flare w/"O" ring , Incl. Ref. 25

1шт.

25

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - 1/4 x 23/64 x 5/64"

1шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - 1/2" tube O.D. x 3/4" P.T. (Incl. Ref 27)

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

28

A60269

TUBE

- trans. control valve to clutch hsg.

1шт.

29

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 45 degree adjustable, 1/2" tube O.D. (Incl. ref. 30)

2шт.

31

A62102

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16 O-Ring, Long

ASSY. - 1/2" tube O.D. (Replaces 222-1661) (includes ref. 32)

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

33

A62101

TUBE

- valve to clutch hsg. (Replaces A61054)

1шт.

37

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - 3/4" tube O.D. x 1-1/16" P.T. (includes ref. 38)

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

39

A60859

TUBE

- hyd. oil filter to trans. control valve

1шт.

40

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - 3/4" tube O.D. x 1-1/16" P.T. (includes ref. 41)

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

43

321-1295

DECAL

- "Warning", oil filter (White wrapper)

1шт.

42

A60766

SPROCKET

FILTER ASSY. - hyd. oil (See Figure 168)

1шт.

45

A60857

CLAMP - hyd. oil, Serial Range: filter-bracket

1шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

46

A60854

BRACKET - mounting, hyd. oil filter

1шт.

44

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

2шт.

47

92-6

LOCK WASHER,3/8"

4шт.

49

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - w/"O" ring, 1/2" tube O.D. x 3/4" P.T. (Incl. Ref 50)

1шт.

51

A59923

TUBE - tee junction to trans. cover

1шт.

48

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

52

218-594

TEE,3/4"-16, 37 Degree

- junction, 1/2" tube O.D. (Used w/power brakes)

1шт.

53

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - adj., 1/2" tube O.D. (Used w/hyd. brakes) (includes ref. 54)

1шт.

50

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

54

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.
