Запчасти Case IH 870 (167A) - TRANSMISSION CONTROL VALVE, COVERS, GASKETS & TUBES, POWER SHIFT, USED PRIOR TO TRANS. S/N 2366001 (06) - POWER TRAIN

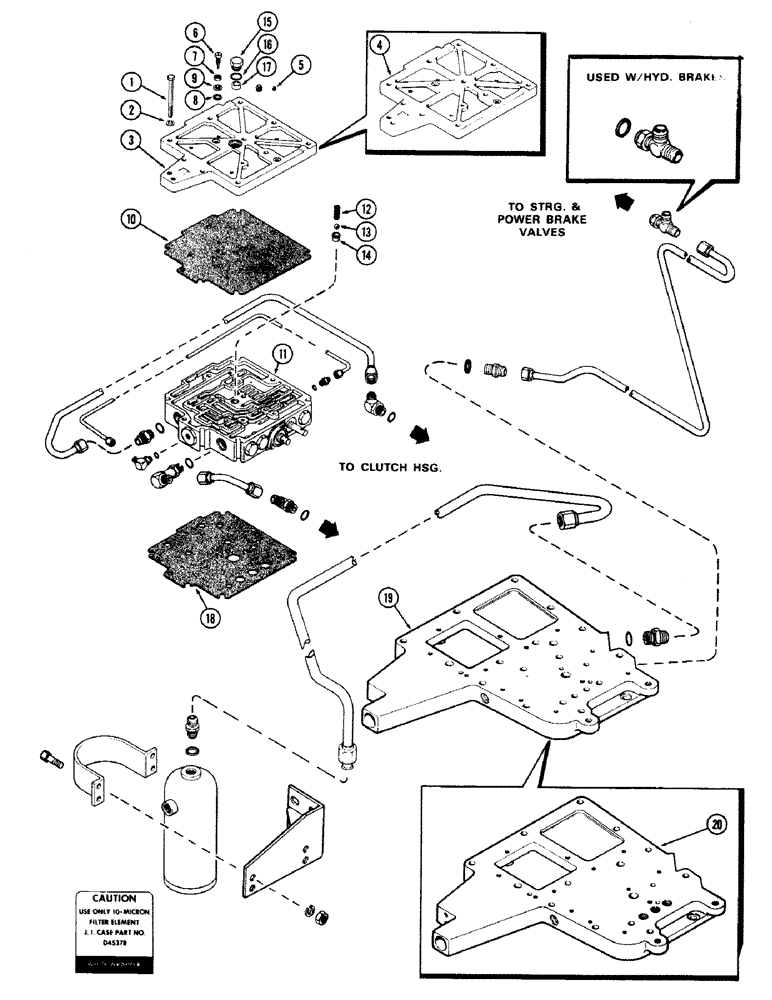

Схема запчастей Case IH 870 - (167A) - TRANSMISSION CONTROL VALVE, COVERS, GASKETS & TUBES, POWER SHIFT, USED PRIOR TO TRANS. S/N 2366001 (06) - POWER TRAIN
17
13
10
4
6
7
20
16
2
1
3
12
9
8
15
19
5
11
14
18

Артикул

Название

Примечание

Количество

1

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex

10шт.

2

92-6

LOCK WASHER,3/8"

10шт.

3

A62105

COVER - control valve (1st used trans. ser. no. 2338762)

1шт.

4

A61695

COVER

- trans. control valve (Used prior to trans. ser. no. 2338762) (Replaces A59072)

1шт.

5

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, valve cover (1/8" sq. hd.)

5шт.

6

A59073

NEEDLE

- retard orifice

2шт.

7

25-154

JAM NUT,Jam, 1/4"-28, G5

- 1/4" N.F. hex, jam

2шт.

8

A59074

SEAL

- 1/4" thread

2шт.

9

122-13

GROMMET

WASHER - flat, 1/4"

2шт.

10

A62270

GASKET

- control valve to valve cover (Replaces A61035)

1шт.

11

A61984

VALVE

ASSY. - trans. control (See Figure 171A) (Used trans. ser., Serial Range: #2359227-2366001)

1шт.

11

A59070

HYDRAULIC VALVE

VALVE ASSY. - trans. control (See Figure 171C) (Used prior to trans. ser. no. 2359227)

1шт.

12

A61696

SPRING

- trans. control valve detent ball (Replaces A13544)

1шт.

13

211-12

BALL,7/16 Dia

- detent, 7/16" diameter

1шт.

14

A59062

SLEEVE

- valve body detent

1шт.

15

A62588

PLUG

- detent (Replaces A62106)

1шт.

17

A62107

SPACER

- detent

1шт.

18

A62269

GASKET

- control valve to trans. cover (Replaces A61034)

1шт.

19

A61682

COVER - trans. front top (1st used trans. ser. no. 2388762)

1шт.

20

A58244

SHIELD

COVER - trans. front top (Used prior to trans. ser. no. 2338762)

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

Выбрано товаров: 21
