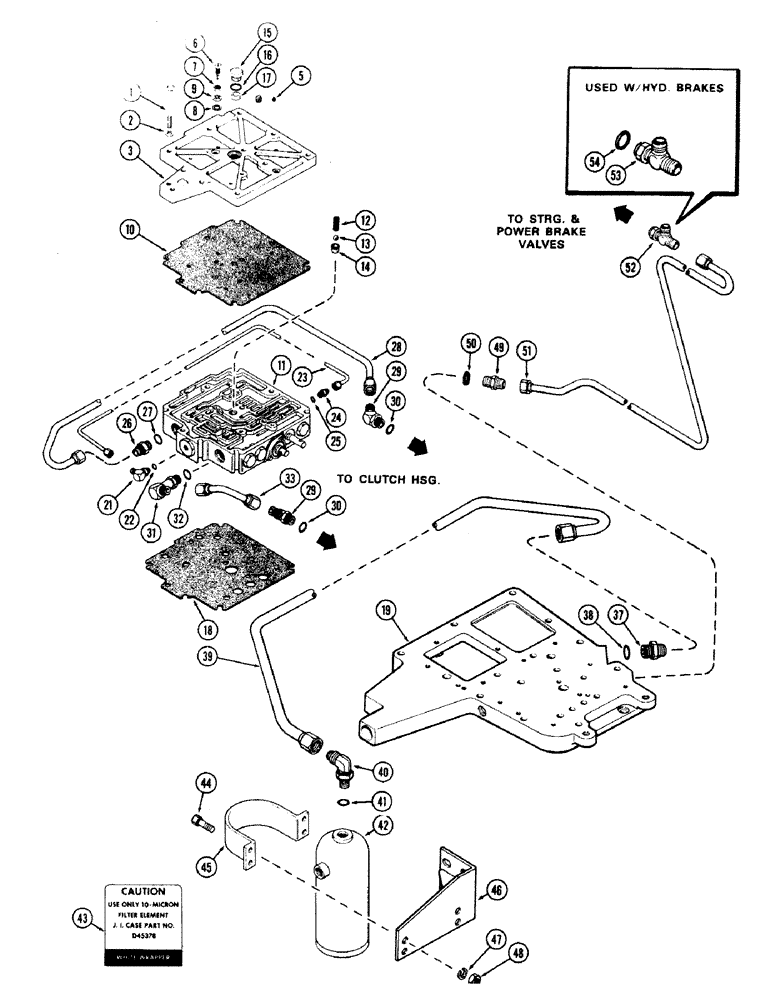

Запчасти Case IH 870 (166) - TRANSMISSION CONTROL VALVE COVERS, GASKETS AND TUBES, POWER SHIFT, 1ST USED TRANS. SER. NO. 2366001 (06) - POWER TRAIN

1

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex hd. (3/8 x 3-1/2" N.C.) (Grade 5)

10шт.

2

92-6

LOCK WASHER,3/8"

10шт.

3

A62105

COVER - control valve

1шт.

5

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, valve cover (1/8" sq. hd.)

5шт.

6

A59073

NEEDLE

- retard orifice

2шт.

7

25-154

JAM NUT,Jam, 1/4"-28, G5

- 1/4" N.F. hex, jam

2шт.

8

A59074

SEAL

- (1/4" thread)

2шт.

9

122-13

GROMMET

WASHER - flat (1/4" steel)

2шт.

10

A62270

GASKET

- conrol valve to valve cover (Replaces A61035)

1шт.

11

A62634

CONTROL VALVE

VALVE ASSY. - trans. control (See page 170 for repairs) (1st used trans. ser. no. 2366001)

1шт.

12

A61696

SPRING

- trans. control valve detent ball (Replaces A13544)

1шт.

13

211-12

BALL,7/16 Dia

- detent (7/16" diameter)

1шт.

14

A59062

SLEEVE

- valve body detent

1шт.

15

A62588

PLUG

- detent (Replaces A62186)

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

17

A62107

SPACER

- detent

1шт.

18

A62637

GASKET

- control valve to cover (Replaces A62269)

1шт.

19

A62638

COVER - trans. front top

1шт.

21

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSY. - 90 degree adjustable (1/4" tube O.D. x 7/16") (includes ref. 22)

1шт.

22

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - (1/4 x 23/64 x 5/64")

1шт.

23

A60656

TUBE

- pilot, trans. control valve reverse lock-out

1шт.

24

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

CONNECTOR ASSY. - 3/8" P.T., 1/4" tube (Incl. Ref. 25)

1шт.

25

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - (1/4 x 23/64 x 3/32")

1шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - (1/2" tube O.D. x 3/4" P.T.) (Incl. Ref 27)

1шт.

28

A60269

TUBE

- trans. control valve to clutch hsg.

1шт.

29

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 45 degree adjustable (1/2" tube O.D.) (Incl. ref. 30)

2шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

31

A62102

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16 O-Ring, Long

ASSY. - (1/2" tube O.D.) (Replaces 222-1661) (includes ref. 32)

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

33

A62101

TUBE

- valve to clutch hsg. (Replaces A61054)

1шт.

37

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - (3/4" tube O.D. x 1-1/16" P.T.) (includes ref. 38)

1шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

39

A61780

TUBE

- hyd. oil filter to trans. control valve

1шт.

40

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY. - 1-1/16" P.T., 3/4" tube (Incl. ref. 41)

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

42

A60766

SPROCKET

FILTER ASSY. - (10 Micron) (White wrapper) (See Figure 168)

1шт.

43

321-1762

DECAL

- "Warning", trans. oil filter (White wrapper)

1шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

44

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex hd. (3/8 x 1-1/2" N.C.)

2шт.

45

A60857

CLAMP - hyd. oil, Serial Range: filter-bracket

1шт.

46

A62650

BRACKET

- mounting, hyd. oil filter

1шт.

47

92-6

LOCK WASHER,3/8"

4шт.

48

25-106

NUT,3/8"-16, G5

- hex (3/8" N.C.)

4шт.

49

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - w/"O" ring (Incl. Ref 50)

1шт.

50

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

51

A59923

TUBE - tee junction to trans. cover

1шт.

52

218-594

TEE,3/4"-16, 37 Degree

- junction (1/2" tube O.D.) (Used w/power brakes)

1шт.

53

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - adjustable (1/2" tube O.D.) (Used w/hyd. brakes) (includes ref. 54)

1шт.

54

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.
