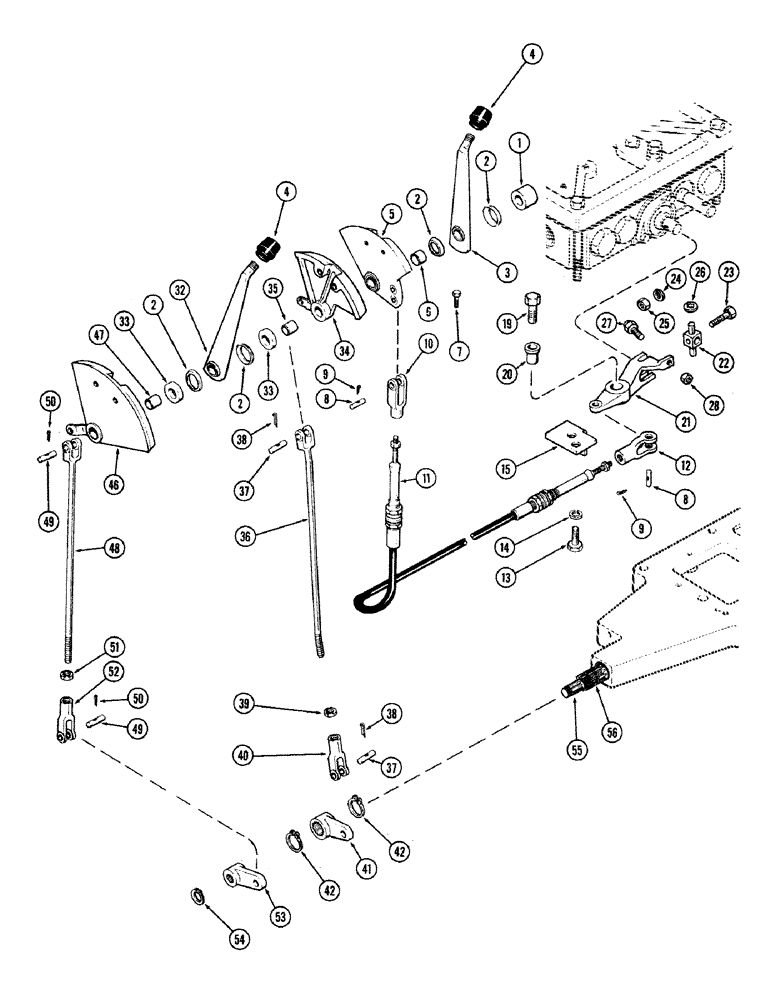

Запчасти Case IH 870 (154) - GEAR AND RANGE SHIFT LINKAGE, POWER SHIFT (06) - POWER TRAIN

1

A59664

SPACER

- power shift hand lever shaft

1шт.

2

A59662

WASHER

- power & range shift hand lever

4шт.

3

A59661

LEVER

- hand, power shift

1шт.

4

A62078

KNOB

- power & range shift hand lever (Replaces A23885)

2шт.

5

A59663

QUADRANT

- power shift (Order A61862 when stock depleted) (includes ref. 6)

1шт.

6

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- quadrant

1шт.

7

A59463

BOLT

- control lever stop

2шт.

8

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Power shift yoke 3/8" x 1.060"

2шт.

9

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4", clevis pin yoke

2шт.

10

A60661

YOKE

- power shift cable, upper

1шт.

11

A60659

CABLE

- power shift console control (26")

1шт.

12

A60663

YOKE

- power shift cable, lower

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Bracket to valve cover Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

A60662

BRACKET

- cable, power shift

1шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Power shift lever to top cover Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

20

A59772

BUSHING

- power shift spool, operating lever

1шт.

21

A59771

LEVER

- operating, power shift spool

1шт.

22

A59150

LINK

- power shift spool operating

1шт.

23

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Link to spool Hex, 1/4"-20 x 1 1/4", G5

1шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25

25-104

NUT,1/4"-20, G5

1шт.

26

A59773

RING

- retaining, power shift spool operating link

1шт.

27

A59774

ADJUSTMENT SCREW,5/16" - 18 x 1 3/8", Mild Steel

SCREW - adjusting, power shift spool

1шт.

28

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex, adj. screw (5/16" N.C. jam)

1шт.

32

A60360

LEVER

- hand, range shift

1шт.

33

A60367

SPACER

- range shift quadrant (41/64 x 1-1/4 x 1/4")

2шт.

34

A60366

QUADRANT

- range shift (2nd & 4th) (Order A61872 when stock depleted) (includes ref. 35)

1шт.

35

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

36

A60373

ROD

- range shift (2nd & 4th)

1шт.

37

A59258

PIN

- range shift linkage

2шт.

38

132-30

COTTER PIN,3/32" x 1 1/4"

PIN, split (Cotter), 3/32" x 1-1/4"

2шт.

39

25-116

NUT,Hex, 3/8"-24, G5

- hex, yoke to rod (3/8" N.F.)

1шт.

40

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - range shift rod (3/8")

1шт.

41

A60369

LEVER

- range shift (2nd & 4th)

1шт.

42

B18208

SNAP RING,#100, Ext

range shift lever, 1" dia. shaft #100, Ext

2шт.

46

A60362

QUADRANT

- range shift (1st & 3rd) (Order A61867 when stock depleted) (includes ref. 47)

1шт.

47

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

48

A59665

ROD

- range shift (1st & 3rd)

1шт.

49

A59258

PIN

- range shift linkage

2шт.

50

132-30

COTTER PIN,3/32" x 1 1/4"

PIN, split (Cotter), 3/32" x 1-1/4"

2шт.

51

25-116

NUT,Hex, 3/8"-24, G5

- hex, yoke to rod (3/8" N.F.)

1шт.

52

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - range shift rod (3/8")

1шт.

53

A60363

LEVER

- range shift (1st & 3rd)

1шт.

54

A59594

RING

SNAP RING - retaining, range shift lever

1шт.

55

A59591

SHAFT

- lever, internal range shift

1шт.

56

A58245

SHAFT

ASSY. - external range shift w/bushings

1шт.
