(136) - FRONT END WEIGHTS

Запчасти Case IH 870 (136) - FRONT END WEIGHTS (05) - STEERING

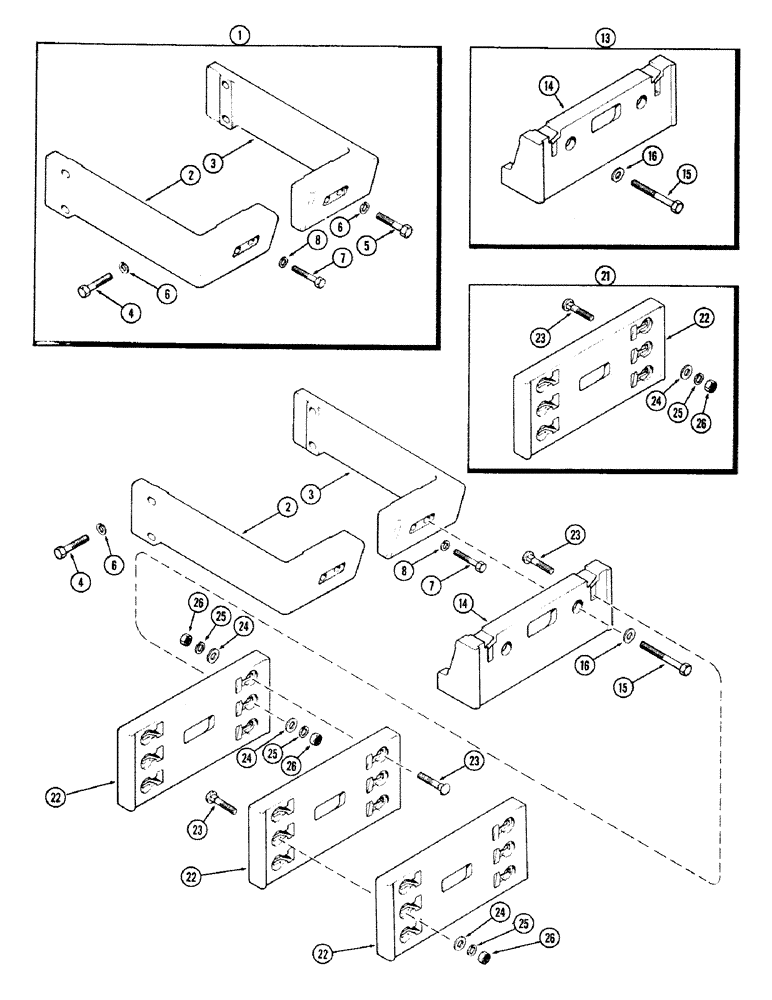

Схема запчастей Case IH 870 - (136) - FRONT END WEIGHTS (05) - STEERING
8
24
4
24
15
7
22
26
25
6
24
22
21
13
25
5
23
23
26
23
2
2
14
26
8
4
15
3
26
25
1
14
6
6
22
16
16
3
7
25
22
23
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A60536

WEIGHT

KIT - front end wrapper (Machinery item) (includes ref. 2 - 8)

1шт.

2

A59352

WEIGHT

- wrapper, front end (R.H.) (185 lbs.) (Mach. item)

1шт.

3

A59353

WEIGHT

- wrapper, front end (L.H.) (185 lbs.) (Mach. item)

1шт.

4

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

5

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

7

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex hd. (5/8 x 4" N.C.)

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

A60537

WEIGHT

KIT - adapter, front end wrapper (Mach. item) (Used w/A60536 weight kit) (One adapter only per tractor) (includes ref. 14, 15 & 16)

1шт.

14

A59354

ADAPTER

- wrapper weight (36 lbs.) (Mach item)

1шт.

15

A59351

BOLT

- hex hd., adapter to front end (3/4"-10 N.C. x 7")

2шт.

16

195-46

WASHER,3/4" x 1 3/4" x .148"

- plain (3/4")

2шт.

21

A60538

WEIGHT

KIT - additional, front end wrapper, (Used w/A60537 weight kit) (Mach. item) (includes ref. 22 - 26)

1шт.

22

A59355

WEIGHT

- additional front end (100 lbs.) (Mach. item)

1шт.

23

B90584

BOLT

- (3/4 x 4" N.C. round head, square neck)

2шт.

24

195-46

WASHER,3/4" x 1 3/4" x .148"

- plain (3/4")

2шт.

25

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

26

25-1012

NUT,3/4"-10, G5

2шт.
