Запчасти Case IH 870 (133A) - SINGLE FRONT WHEEL (05) - STEERING

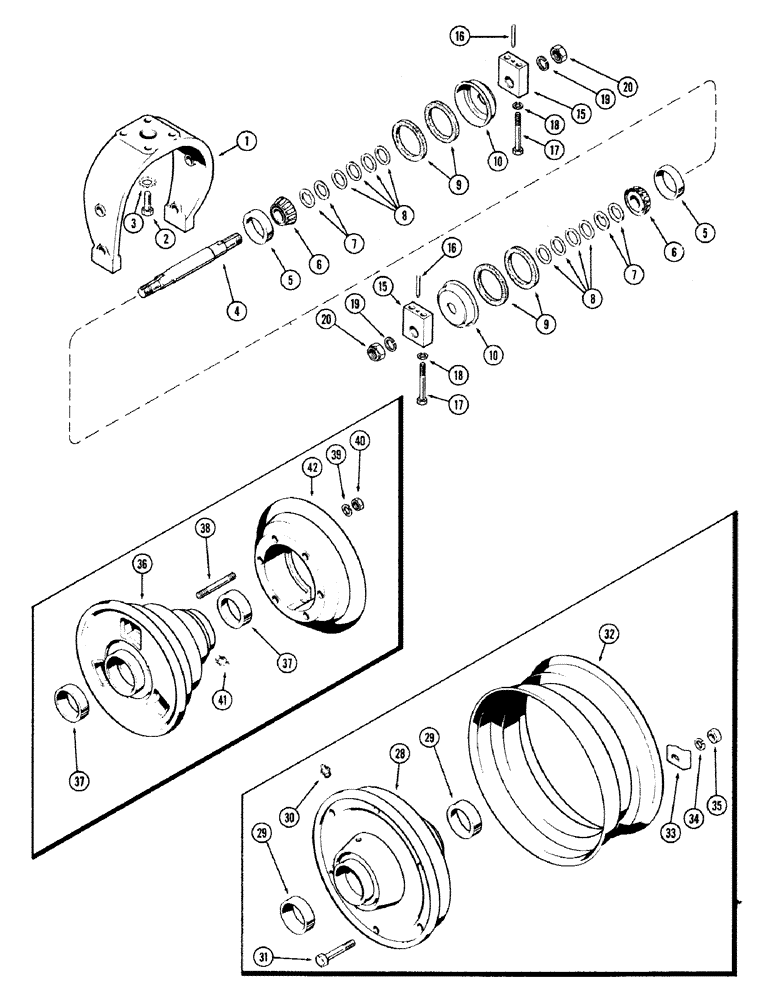

Схема запчастей Case IH 870 - (133A) - SINGLE FRONT WHEEL (05) - STEERING
20
8
18
9
6
7
17
31
20
17
37
8
41
29
7
32
37
10
9
15
36
10
2
42
19
40
28
29
33
19
5
3
4
1
16
38
15
39
35
6
5
18
34
16
30

Артикул

Название

Примечание

Количество

A9766

WHEEL ATTACHMENT - single front wheel for 7.50-16 tire (Mach item) (Not illust.) (includes ref. 1 - 10, 15 - 20 and 28 - 42)

1шт.

A28726

WHEEL ATTACHMENT - single front wheel for 9.00-10 tire (Mach item) (Not illust.) (includes ref. 1 - 10, 15 - 20 and 28 - 42)

1шт.

1

A26349

FORK - single front wheel

1шт.

2

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

4шт.

3

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

4

A28221

SHAFT - single front wheel axle

1шт.

5

A27631

CUP

- bearing (Included w/wheel assemblies)

2шт.

6

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing

2шт.

7

A28222

WASEHR - front wheel axle shaft

4шт.

8

A28223

SHIM,.003" Thk

Front wheel axle shaft .003" Thk

1шт.

8

A28224

SHIM,.005" Thk

Front wheel axle shaft .005" Thk

1шт.

9

A27632

FELT

SEAL - dust (3-1/2 x 4-3/8 x 3/8" felt)

4шт.

10

A28225

RETAINER

- dust seal

2шт.

15

A28723

BLOCK ASSY. - (Used w/9.00 x 10 tire) (2-1/8" high) (includes ref. 16)

2шт.

15

A9764

BLOCK ASSY. - (Used w/7.50 x 16 tire) (3-1/2" high) (includes ref. 16)

2шт.

16

NSS

NOT SOLD SEPARAT

PIN - block (3/16 x 2-5/8") (Order A9764 block)

1шт.

16

NSS

NOT SOLD SEPARAT

PIN - block (3/8 x 1-5/32") (Order A28723 block)

1шт.

17

A9765

BOLT - hex hd. (9/16 x 4-1/2" N.F.) (Used w/A9764 block)

4шт.

17

14-952

BOLT,Hex, 9/16" - 18 x 3-1/4", Gr 5

- hex hd. (9/16 x 3-1/4" N.F.) (Used with A28723 block)

4шт.

18

92-9

BEARING WASHER,9/16"

4шт.

19

92-18

LOCK WASHER,1 1/8"

1 1/8"

2шт.

20

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

- hex (1-1/8" N.F. jam)

2шт.

28

A28722

WHEEL (STEERING)

WHEEL ASSY. - single front for 7.50-16 tire (Used w/A27295 rim)

1шт.

29

A27631

CUP

- bearing (includes ref. 30)

2шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" straight)

1шт.

31

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

- hex hd. (1/2 x 3-1/2" N.F.)

6шт.

32

A27295

RIM - (Takes 7.50 x 16 tire)

1шт.

33

A27228

CLAMP

- front wheel rim

6шт.

34

92-8

LOCK WASHER,1/2"

6шт.

35

25-178

NUT,1/2"-20, G5, Hvy

- hex (1/2" N.F. heavy)

6шт.

36

A28724

WHEEL ASSY. - single front for 9.00-10 tire (Used w/A26245 flange)

1шт.

37

A27631

CUP

- bearing (includes ref. 38 - 41)

2шт.

38

A27704

STUD - flange (1/2" N.C./N.F. x 4")

6шт.

39

92-8

LOCK WASHER,1/2"

6шт.

40

25-178

NUT,1/2"-20, G5, Hvy

- hex (1/2" N.F. heavy)

6шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" straight)

1шт.

42

A26245

FLANGE - (Takes 9.00 x 10 tire)

1шт.

Выбрано товаров: 37
