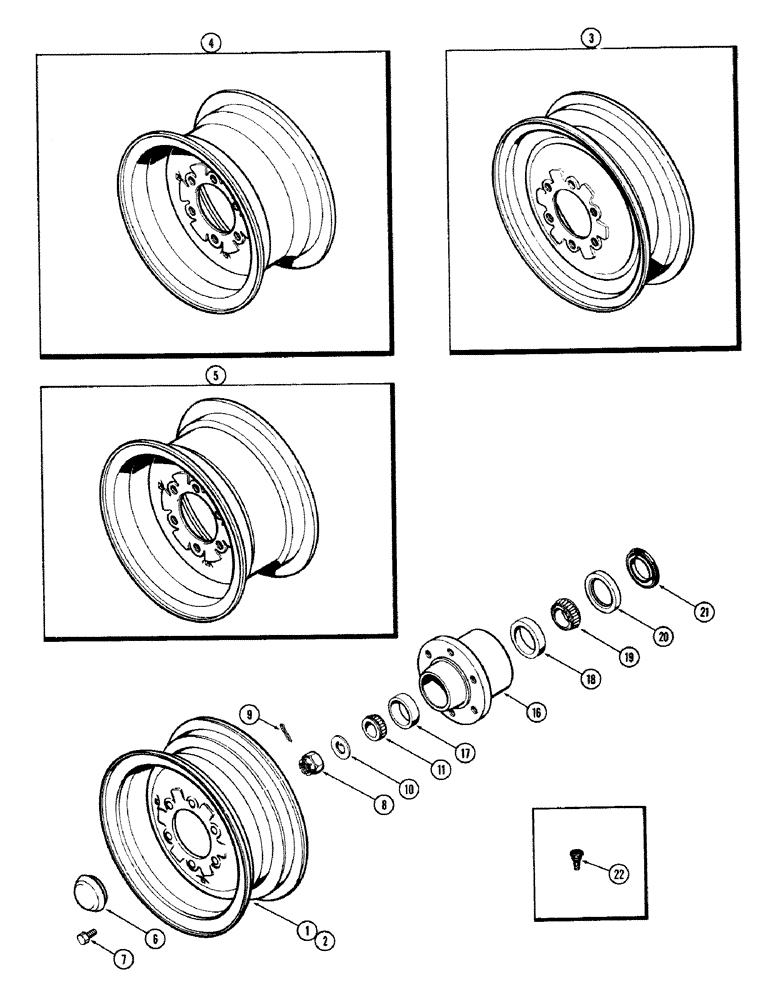

Запчасти Case IH 870 (132) - FRONT WHEELS (05) - STEERING

1

G57007

WHEEL

- front (1-1/8" offset) (Takes 7.50 x 15 tire)

2шт.

2

G57046

WHEEL ASSY.

WHEEL - front (2-1/4" offset) (Takes 7.50 x 16 tire)

2шт.

3

A29050

WHEEL

- front (2-1/4" offset) (Takes 6.00 x 16 tire)

2шт.

4

A60405

WHEEL

- front (1-1/8" offset) (Takes 10.00 x 16 tire)

2шт.

5

A57879

RIM

WHEEL - front (1-1/8" offset) (Takes 11.00 x 15 tire)

2шт.

6

A29425

CAP

- hub, front wheel

2шт.

7

B18264

WHEEL BOLT

BOLT - wheel to hub (9/16"-18 x 1-3/32")

12шт.

8

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex, wheel spindle (1-1/8" N.F. thick, slotted)

2шт.

9

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , Wheel spindle 3/16" x 1 3/4"

2шт.

10

A26789

BEARING WASHER

WASHER - front wheel spindle

2шт.

11

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing, front wheel (1-3/8" I.D.)

2шт.

16

A57336

HUB

ASSY. - front wheel

2шт.

17

A27631

CUP

- front wheel outer bearing (2-7/8" O.D.)

1шт.

18

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - front wheel inner bearing (3-17/64" O.D.)

1шт.

19

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - front wheel inner bearing (1-3/4" I.D.) (includes ref. 20 & 21)

2шт.

A57250

OIL SEAL

KIT - oil seal & retainer (Not illust.) (includes ref. 20 & 21)

2шт.

20

NSS

NOT SOLD SEPARAT

SEAL - oil, outer, front wheel (Order A57250)

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, inner, front wheel (Order A57250)

1шт.

22

A38261

VALVE

- rim, tubeless tire

1шт.
