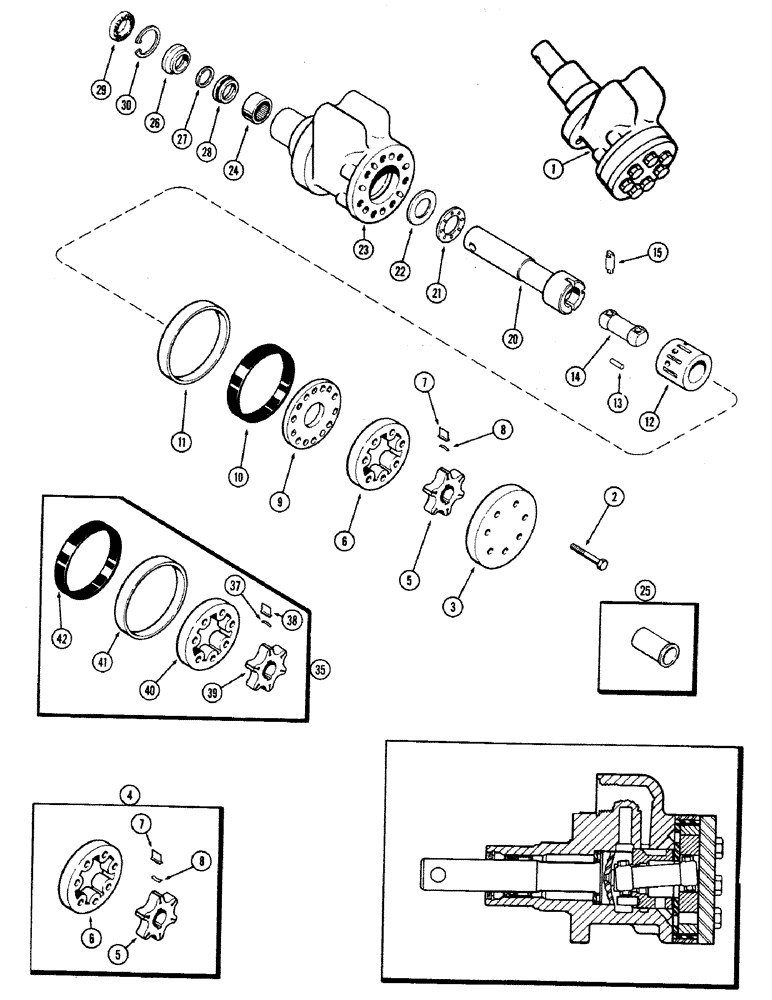

Запчасти Case IH 870 (120) - STEERING HAND PUMP (05) - STEERING

1

A60202

PUMP ASSY. - steering, hand pump (includes ref. 2 - 15 and 20 - 30)

1шт.

2

F19642

BOLT - pump end cover

7шт.

3

F19641

COVER - pump end

1шт.

4

A43545

ROTOR

SET - pump (Replaces A42214) (includes ref. 5 - 8)

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR - pump

1шт.

6

NSS

NOT SOLD SEPARAT

STATOR - pump

1шт.

7

NSS

NOT SOLD SEPARAT

VANE - pump rotor

6шт.

8

A42219

SPRING

- retainer, pump vane sealing

6шт.

9

A42206

SPACER

- pump rotor

1шт.

10

F19640

SEAL

- pump rotor

1шт.

11

F19639

RETAINER

- seal, pump rotor

1шт.

12

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump body

1шт.

13

F19631

PIN

- pump commutator

1шт.

14

F19635

LINK

- pump drive

1шт.

15

F19636

PIN

- pump link

2шт.

20

F12500

SHAFT - pump drive

1шт.

21

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - needle thrust, pump shaft

1шт.

22

F19634

BEARING WASHER

RACE - bearing thrust, pump shaft

1шт.

23

A42213

BODY - pump with needle bearing

1шт.

24

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING - needle, pump shaft to body

1шт.

A44582

REPAIR KIT

KIT - seal, drive shaft (Replaces A43747 & A40624) (includes ref. 25 - 29)

1шт.

25

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - spacer

1шт.

27

NSS

NOT SOLD SEPARAT

RING - shaft seal

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - felt

1шт.

30

A21145

SNAP RING,1.25, Int, #125

RING, snap, 1.25", Int, #125, spacer washer

1шт.

35

A43153

CONVERSION KIT

KIT - conversion, steering hand pump (includes ref. 37 - 42)

1шт.

A43155

ROTOR

SET - (.437 width), steering hand pump coversation kit (includes ref. 37 - 42)

1шт.

37

A44343

SPRING

- rotor vane, steering hand pump coversation kit

6шт.

38

NSS

NOT SOLD SEPARAT

VANE - rotor, steering hand pump coversation kit

6шт.

39

NSS

NOT SOLD SEPARAT

ROTOR - center, steering hand pump coversation kit

1шт.

40

NSS

NOT SOLD SEPARAT

STATOR - steering hand pump coversation kit

1шт.

41

A43157

SEAL

- rotor, 7/16", steering hand pump coversation kit

1шт.

42

A43156

RETAINER

- seal, steering hand pump coversation kit

1шт.
