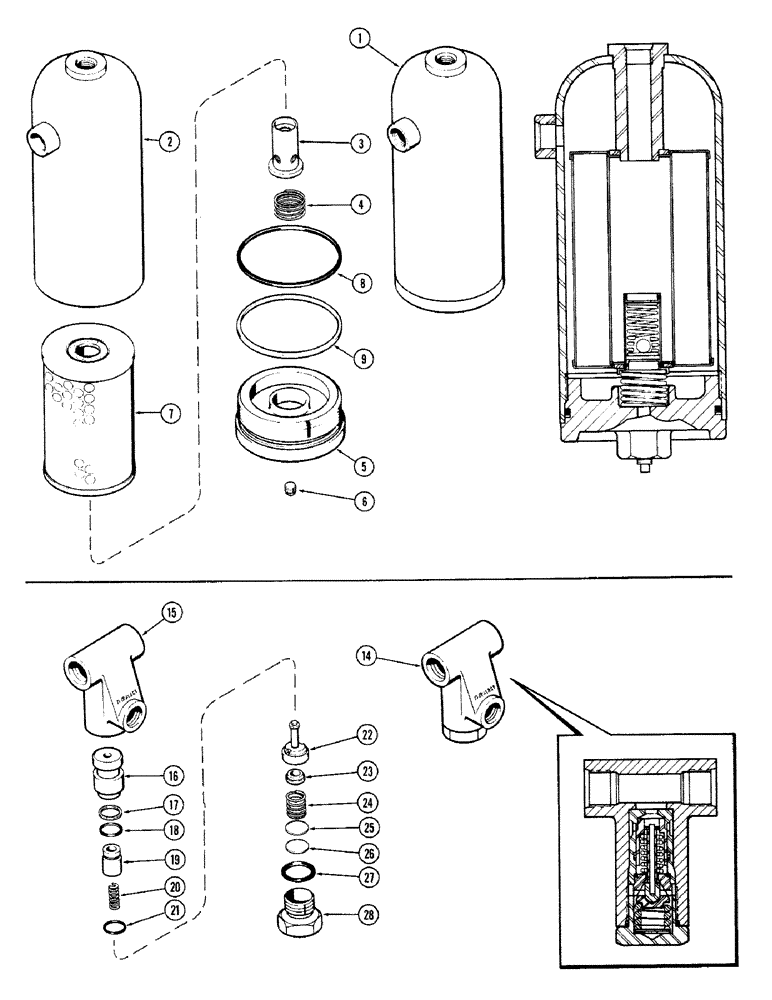

Запчасти Case IH 870 (118) - G32017 OIL FILTER, STEERING-POWER BRAKE SYSTEM (05) - STEERING

1

G32017

FILTER

ASSY. - steering - power brake system (25 Micron) (Replaces A60721) (includes ref. 2 - 9)

1шт.

2

G32018

HYD TUBE,7.89" L

TUBE - oil filter (Replaces A60727)

1шт.

3

D37207

VALVE

ASSY. - relief, oil filter

1шт.

4

D31212

SPRING

- retaining, oil filter

1шт.

5

A60765

CAP

- end, oil filter

1шт.

6

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe (1/8" square head)

1шт.

A61234

HYDRAULIC OIL FILTER

KIT - oil filter element (Not illust.) (includes ref. 7, 8 & 9)

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter (Red color code) (Order A61234)

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - sealing, oil filter cap to body (4 x 4-1/4 x 1/8")

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

(Leather) Filter, Serial Range: cap-body

1шт.

14

A59905

VALVE

ASSY. - steering system relief (includes ref. 15 - 27)

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - relief valve (Order A59905)

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE - relief vale (Order A59905)

1шт.

17

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- back-up, relief valve sleeve, A59905 steering

1шт.

Part of steering system relief valve seal kit P/N A42888

1шт.

18

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - relief valve sleeve (5/8 x 3/4 x 1/16"), A59905 steering

1шт.

19

A57553

PISTON

- relief valve, A59905 steering system

1шт.

20

A34382

SPRING

- pilot piston (1" free length"), A59905 steering system relief valve

1шт.

21

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - pilot piston (5/8 x 3/4 x 1/16"), A59905 steering system relief valve

1шт.

Part of steering system relief valve seal kit P/N A42888

1шт.

22

A57556

PISTON

ASSY. - pilot, A59905 steering system relief valve

1шт.

23

A57558

RETAINER

- pilot spring, A59905 steering system relief valve

1шт.

24

A34492

SPRING

- relief valve (23/32" free length), A59905 steering system

1шт.

25

A34391

SHIM,.0149" Thk

Relief spring, A59905 steering system valve .0149" Thk

1шт.

26

A34390

SHIM,.0329" Thk

Relief spring, A59905 steering system valve .0329" Thk

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - relief valve plug (3/4 x 59/64 x 1/8"), A59905 steering system

1шт.

Part of steering system relief valve seal kit P/N A42888

1шт.

28

A34392

PLUG

- relief valve, A59905 steering system

1шт.

A42888

KIT

- seal, steering system relief valve, Includes: Ref. 17, 18, 21 and 27 (Not Illust.), A59905

1шт.
