Запчасти Case IH 770 (144) - G32017 OIL FILTER, A59905 RELIEF VALVE (05) - STEERING

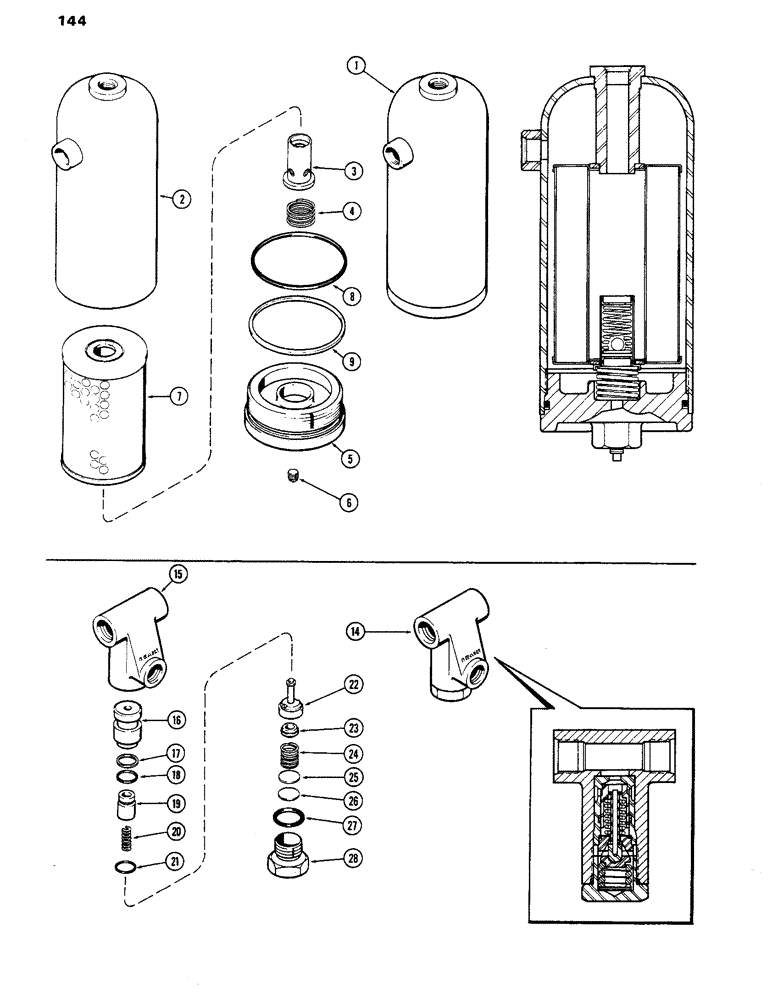

Схема запчастей Case IH 770 - (144) - G32017 OIL FILTER, A59905 RELIEF VALVE (05) - STEERING
8
20
2
18
21
27
6
19
3
15
1
26
25
16
9
28
17
7
24
23
14
22
5
4

Артикул

Название

Примечание

Количество

1

G32017

FILTER

ASSY. - steering - power brake system (25 Micron), Includes: Ref. 2 - 9

1шт.

2

G32018

HYD TUBE,7.89" L

TUBE - oil filter

1шт.

3

D37207

VALVE

ASSY. - relief

1шт.

4

D31212

SPRING

- retaining

1шт.

5

A60765

CAP

- end

1шт.

6

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe (1/8" square head)

1шт.

A61234

HYDRAULIC OIL FILTER

KIT - element (not illust.), Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter (Red Color Code) (Order A61234)

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - sealing (4 x 4-1/4 x 1/8")

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Filter cap to body (Leather)

1шт.

14

A59905

VALVE

ASSY. - relief, steering system, Includes: Ref. 15 - 28, A59905

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - relief valve (Order A59905), A59905

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE - relief valve (Order A59905), A59905

1шт.

17

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- back-up, relief valve sleeve, A59905

1шт.

Part of steering system relief valve seal kit P/N A42888

1шт.

18

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - relief valve sleeve (5/8 x 3/4 x 1/16"), A59905

1шт.

Part of steering system relief valve seal kit P/N A42888

1шт.

19

A57553

PISTON

- relief valve, A59905

1шт.

20

A34382

SPRING

- pilot piston (1" free length), A59905 relief valve

1шт.

21

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - pilot piston (5/8 x 3/4 x 1/16"), A59905 relief valve

1шт.

Part of steering system relief valve seal kit P/N A42888

1шт.

22

A57556

PISTON

ASSY. - pilot, A59905 relief valve

1шт.

23

A57558

RETAINER

- pilot spring, A59905 relief valve

1шт.

24

A34492

SPRING

- relief valve (23/32" free length), A59905

1шт.

25

A34391

SHIM,.0149" Thk

Relief spring, A59905 valve .0149" Thk

1шт.

26

A34390

SHIM,.0329" Thk

Relief spring, A59905 valve .0329" Thk

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - relief valve plug (3/4 x 59/64 x 1/8"), A59905

1шт.

Part of steering system relief valve seal kit P/N A42888

1шт.

28

A34392

PLUG

- relief valve, A59905

1шт.

A42888

KIT

- seal, steering system relief valve, Includes: Ref. 17, 18, 21 and 27, not Illust., A59905

1шт.

Выбрано товаров: 30
