(141A) - STEERING AND BRAKE VALVE SYSTEM, POWER BRAKES WITH POWER SHIFT, 1ST USED TRACTOR S/N 8693001

Запчасти Case IH 770 (141A) - STEERING AND BRAKE VALVE SYSTEM, POWER BRAKES WITH POWER SHIFT, 1ST USED TRACTOR S/N 8693001 (05) - STEERING

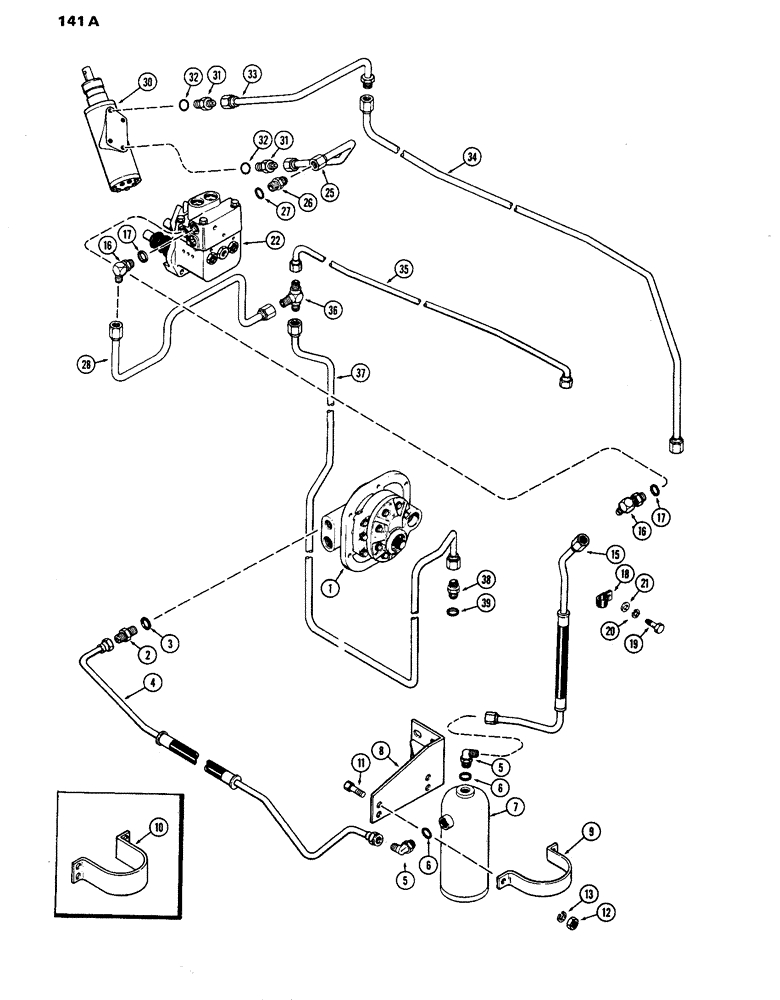

Схема запчастей Case IH 770 - (141A) - STEERING AND BRAKE VALVE SYSTEM, POWER BRAKES WITH POWER SHIFT, 1ST USED TRACTOR S/N 8693001 (05) - STEERING
3
16
20
11
5
22
7
26
30
18
16
1
31
17
35
8
12
6
34
2
17
21
32
4
13
25
27
36
33
37
32
31
28
5
15
10
39
6
9
19
38
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSY. - dual hydraulic (See Fig. 272)

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- tube to pump, 3/4" tube x 1-1/16" 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 1/2 x 5/64"

1шт.

4

A64478

TUBE

-, Serial Range: pump-filter

1шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- filter, 1/2" tube x 3/4"-16, Includes: Ref. 6

2шт.

7

G32017

FILTER

ASSY. - hydraulic oil (Repairs page 144)

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 1/2 x 5/64"

1шт.

8

A62650

BRACKET

- filter mounting

1шт.

9

A65004

CLAMP - hyd. oil filter to bracket (Replaced A60857)

1шт.

10

A60857

CLAMP - hyd. oil filter to bracket (Order A65004)

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

1шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

15

A62369

TUBE

- filter to brake valve

1шт.

18

49833

CLAMP

- tube, filter to brake valve

1шт.

19

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- brake valve, 1/2" tube x 3/4"-16, Includes: Ref. 17

2шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 1/2 x 5/64"

1шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

95-4

WASHER,1/4"

- plain, 5/16 x 3/4 x 1/16"

1шт.

22

REF

INSTRUCTION

VALVE ASSY. - brake (Repairs Figs. 224 thru 227C)

1шт.

25

A64525

TUBE

- pressure, brake, Serial Range: valve-pump

1шт.

28

A64526

TUBE

- brake, Serial Range: valve-tee

1шт.

30

A64500

PUMP

ASSY. - steering (Repairs Fig. 147A)

1шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - valve, 1/2" tube x 3/4"-16, Incl. Ref 27

1шт.

32

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 1/2 x 5/64"

1шт.

33

A64528

TUBE

- pump to oil cooler tube

1шт.

34

A64519

TUBE - oil, Serial Range: cooler-pump

1шт.

35

A64520

TUBE - oil, Serial Range: cooler-tee

1шт.

31

A36663

CONNECTOR, ELEC

CONNECTOR - tube to pump, Includes: Ref. 32

2шт.

36

218-594

TEE,3/4"-16, 37 Degree

- junction, 3/4"-16

1шт.

37

A64531

TUBE - tee to transmission cover

1шт.

38

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - tube to cover, 1/2" tube x 3/4"-16, Incl. Ref 39

1шт.

39

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 1/2 x 5/64"

1шт.
