Запчасти Case IH 770 (140) - STEERING AND BRAKE VALVE SYSTEM, POWER BRAKES WITH POWER SHIFT, USED PRIOR TO TRACTOR S/N 8693001 (05) - STEERING

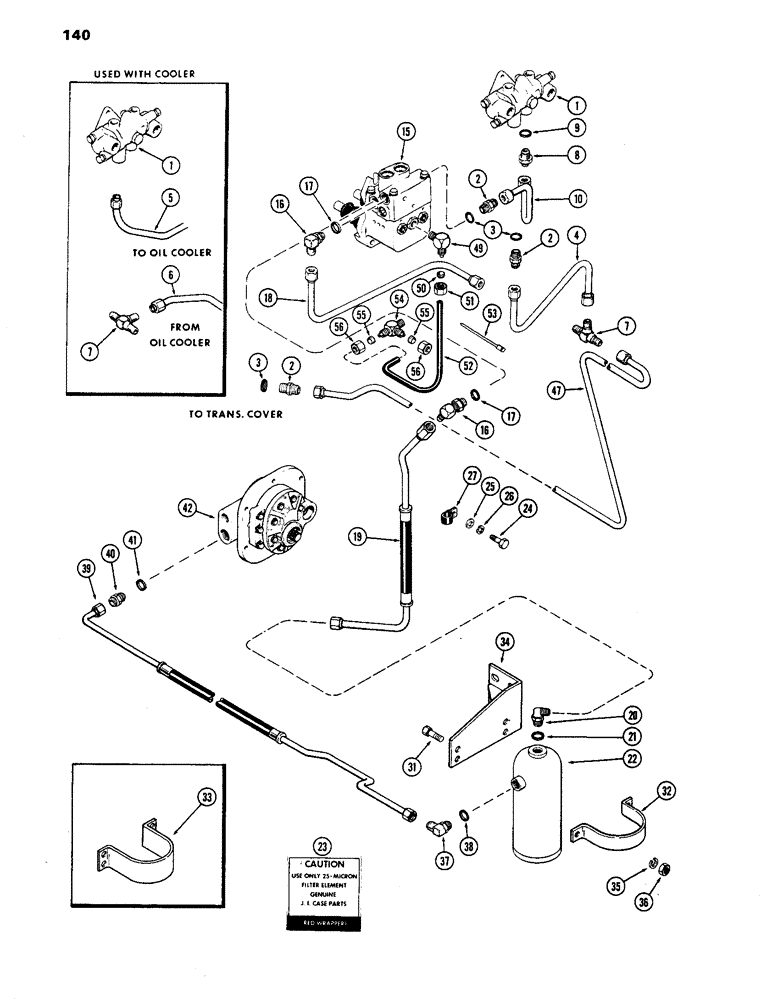

Схема запчастей Case IH 770 - (140) - STEERING AND BRAKE VALVE SYSTEM, POWER BRAKES WITH POWER SHIFT, USED PRIOR TO TRACTOR S/N 8693001 (05) - STEERING
9
17
2
55
38
56
16
2
1
40
24
1
21
42
15
8
19
50
3
35
36
10
41
33
56
22
20
18
34
7
47
2
3
31
53
25
37
16
23
39
26
5
4
17
27
54
55
51
32
52
49
6
7

Артикул

Название

Примечание

Количество

1

A60207

VALVE

ASSY. - steering (See Fig.148)

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - (1/2" tube O.D. x 3/4" P.T.), Incl. Ref 3

3шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

4

A59928

TUBE - return, steering valve to tee (Used w/o cooler)

1шт.

5

A60040

WASHER

TUBE - upper, cooler to steering valve (Used w/cooler)

1шт.

6

A60401

TUBE - lower, cooler to tee (Used w/cooler)

1шт.

7

218-594

TEE,3/4"-16, 37 Degree

- junction (1/2" tube O.D.)

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

8

A36663

CONNECTOR, ELEC

CONNECTOR ASSY. - steering valve pressure inlet, Includes: Ref. 9

1шт.

10

A59918

TUBE

- pressure, power brake valve to steering valve

1шт.

15

REF

INSTRUCTION

VALVE ASSY. - power brake (See Figs. 224 thru 227C)

1шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 90 Deg. adjustable, power inlet & sump ports (1/2" tube O.D. x 3/4"), Includes: Ref. 17

2шт.

18

A59919

TUBE - hydraulic return, power brake, Serial Range: valve-tee

1шт.

19

A62369

TUBE

- pressure, filter to power brake valve

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

22

G32017

FILTER

ASSY. oil, steering - power brake system (25 Micron) (See Fig. 144)

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 90 Deg. (1/2" tube O.D. x 3/4"-16 thread), Includes: Ref. 21

1шт.

23

321-17963

DECAL - "Warning", steering - power brake system oil filter (Red Wrapper)

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (41/64 x 13/64 x 3/32")

1шт.

24

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Clamp to firewall Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

25

95-4

WASHER,1/4"

- wrought (5/16 x 3/4 x 1/16")

1шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

49833

CLAMP

- oil filter, Serial Range: tubes-firewall

1шт.

31

163-624

BOLT - (3/8 x 1-1/2" N.C. hex.)

1шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

32

A65004

CLAMP - hyd. oil filter to bracket (Replaced A60857)

1шт.

33

A60857

CLAMP - hyd. oil filter to bracket (Order A65004)

1шт.

34

A62650

BRACKET

- mounting, hydraulic oil filter (held by platform support bolts)

1шт.

35

92-6

LOCK WASHER,3/8"

2шт.

39

A62371

TUBE ASSY.

TUBE - hydraulic pump to hydraulic oil filter

1шт.

37

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 90 Deg. adjustable (1/2" tube O.D. x 3/4" P.T.), Includes: Ref. 38

1шт.

38

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

42

REF

INSTRUCTION

PUMP ASSY. - hydraulic dual (Order from Fig.272)

1шт.

47

A59923

TUBE - tee junction to transmission cover

1шт.

38

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

50

222-5186

SLEEVE,3/8" Tube

- nylon (for ) 3/8" Tube

1шт.

40

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Assy - pump to tube (1/2" tube O.D. x 7/8" P.T.), Incl. Ref 41 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

41

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

51

222-5181

NUT,9/16"-24

NUT - (for 3/8" tube)

1шт.

52

A60770

TUBE

- brake valve pressure relief (to trans. cover) (Nylon)

1шт.

53

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - brake valve to trans. tube

1шт.

49

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSY. - 90 Deg. male, brake valve pressure relief (3/8" tube O.D. x 1/4" male P.T.), Includes: Ref. 50 and 51

1шт.

55

222-5186

SLEEVE,3/8" Tube

- nylon (for ) 3/8" Tube

2шт.

56

222-5181

NUT,9/16"-24

NUT - (for 3/8" tube)

2шт.

54

222-5120

TEE,7/16"-24 x 1/4" NPT Run

ASSY. - reducing, trans. cover sump return (3/8" tube O.D. x 1/4" male P.T.), Includes: Ref. 55 and 56

1шт.
