Запчасти Case IH 770 (133A) - RIGID STEERING COLUMN, 1ST USED TRACTOR S/N 8693001 (05) - STEERING

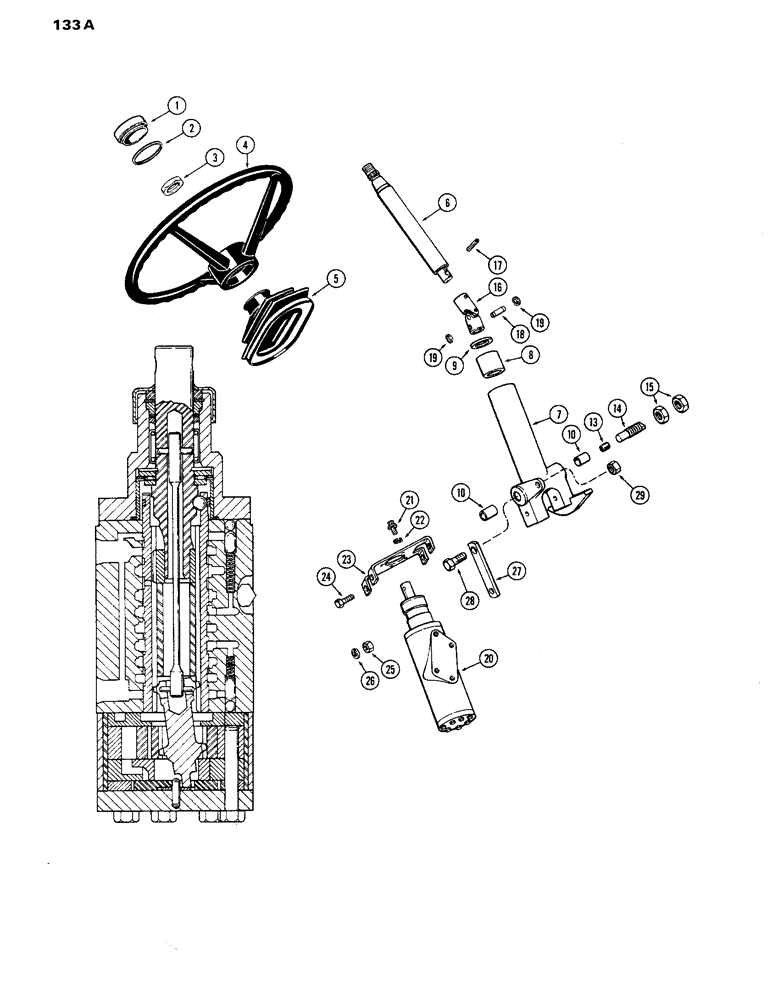

Схема запчастей Case IH 770 - (133A) - RIGID STEERING COLUMN, 1ST USED TRACTOR S/N 8693001 (05) - STEERING
22
13
24
2
17
6
27
1
4
21
23
3
20
16
8
7
26
28
5
10
14
10
29
18
15
19
9
25
19

Артикул

Название

Примечание

Количество

1

A62210

PLUG

MEDALLION - steering wheel

1шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O" RING - medallion (2-1/8 x 2-3/8 x 1/8")

1шт.

3

A14567

JAM NUT

- steering, Serial Range: wheel-shaft

1шт.

4

A65544

STEERING WHEEL

(Replaced A61007)

1шт.

5

A61910

BOOT

BOLT - steering column

1шт.

6

A64548

SHAFT - steering wheel

1шт.

A64122

STEERING ASSY

COLUMN ASSY. - steering, Includes: Ref. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

COLUMN - (Order A64122)

1шт.

8

A59808

BEARING

- steering shaft

1шт.

9

A61736

WIPER SEAL

- wiper, steering shaft

1шт.

10

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- pivot

2шт.

13

A59842

BUMPER

SNUBBER - pivot, steering column

2шт.

14

A59163

STUD

- mounting, column

2шт.

15

425-1410

JAM NUT,Jam, 5/8"-11, G5

- jam, 5/8" N.C. hex.

4шт.

16

A63689

JOINT

- universal, Serial Range: shaft-pump

1шт.

17

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

1шт.

18

A64000

PIN,9.42mm OD x 38.1mm L

- joint to pump shaft

1шт.

19

A27795

RING

"E" RING - pin retaining

2шт.

20

A64500

PUMP

ASSY. - steering (Repairs Figure 147A)

1шт.

21

166-27

SCREW - cap, 5/16 x 3/4" N.C. ferry

4шт.

22

92-5

LOCK WASHER,5/16"

4шт.

23

A64121

BRACKET - pump mounting

1шт.

24

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

25

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

26

92-5

LOCK WASHER,5/16"

4шт.

27

A64550

LINK - lock, steering column

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

29

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

Выбрано товаров: 28
