Запчасти Case IH 770 (132) - RIGID STEERING COLUMN, USED PRIOR TO TRACTOR S/N 8693001 (05) - STEERING

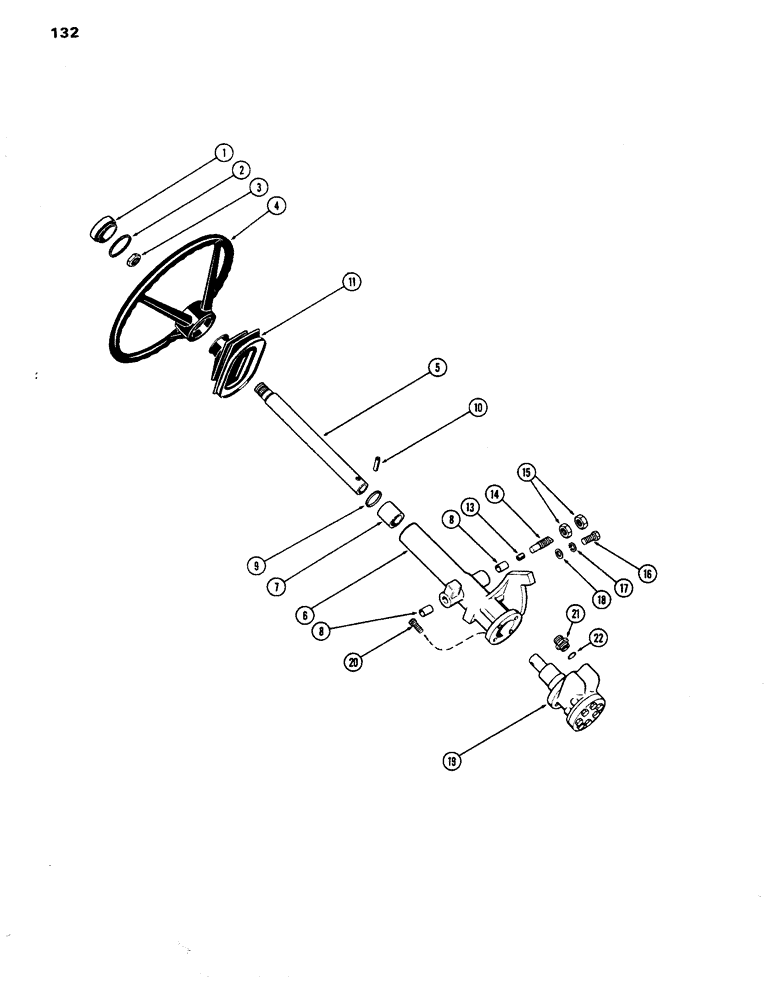

Схема запчастей Case IH 770 - (132) - RIGID STEERING COLUMN, USED PRIOR TO TRACTOR S/N 8693001 (05) - STEERING
21
5
16
14
18
19
22
10
20
1
9
4
7
3
2
17
13
8
6
11
8
15

Артикул

Название

Примечание

Количество

1

A62210

PLUG

CAP - steering wheel lock knob

1шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

RING - retaining, medallion

1шт.

3

A14567

JAM NUT

- steering wheel to steering column shaft (13/16" N.F. thread)

1шт.

4

A65544

STEERING WHEEL

(Replaced A61007)

1шт.

5

A59810

SHAFT - steering column

1шт.

A61734

STEERING COLUMN

COLUMN ASSY. - steering (not illust.), Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

COLUMN - steering (Order A61734)

1шт.

7

A59808

BEARING

- steering column

1шт.

8

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- steering column mounting stud

2шт.

9

A61736

WIPER SEAL

- wiper, steering column

1шт.

10

138-173

LOCK PIN,3/8" x 1 3/8", Slotted

PIN, , Rigid column 3/8" x 1 3/8", Slotted

1шт.

11

A61910

BOOT

- steering column

1шт.

13

A59842

BUMPER

SNUBBER - steering column mounting stud

2шт.

14

A59163

STUD

- mounting, steering column

2шт.

15

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex., strg. column mounting stud (5/8" N.C. jam)

4шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- bracket to strg. column (1/2 x 1-1/4" N.C. hex.)

1шт.

17

92-8

LOCK WASHER,1/2"

1шт.

18

95-8

WASHER,1/2"

- standard wrot (9/16 x 1-3/8 x 7/64") 1/2"

1шт.

19

A60202

PUMP ASSY. - hand, steering (See Page 147)

1шт.

20

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

SCREW - cap, hand pump to strg. column (5/16 x 1" N.C.)

4шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - (1/2" tube O.D. x 3/4" thread), Incl. Ref 22

2шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

Выбрано товаров: 22
