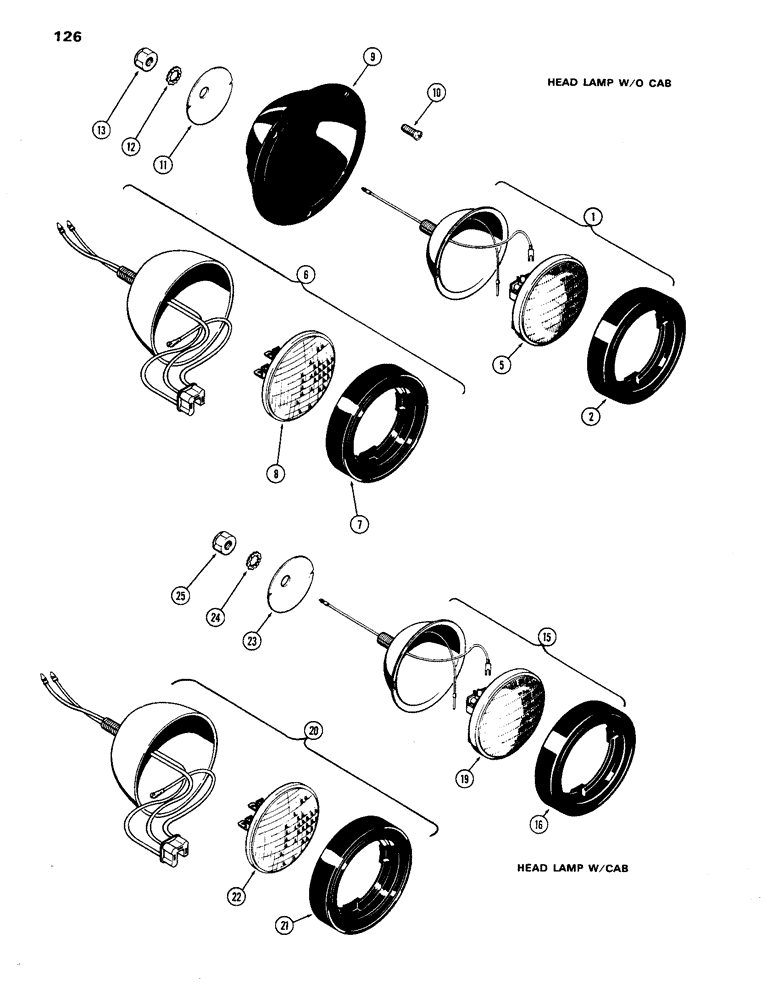

Запчасти Case IH 770 (126) - LIGHTING EQUIPMENT, HEAD LAMPS, W/O CAB AND W/CAB (04) - ELECTRICAL SYSTEMS

1

A59701

LAMP

- head (single beam), Includes: Ref. 2 - 5, Serial Range: -8693001

2шт.

2

A25213

RETAINER

- sealed beam

1шт.

A24572

LAMP

KIT - head lamp, Includes: Ref. 5

1шт.

A11276

GASKET

- head lamp (not applicable)

1шт.

5

A24572

LAMP

HEAD LAMP - sealed beam

1шт.

6

A64498

LAMP

- head (2 beam), Includes: Ref. 7 and 8, Start Serial: 8693001

2шт.

7

A25213

RETAINER

- sealed beam

1шт.

8

A43712

LAMP

- sealed unit (#4457)

1шт.

9

A59698

BEZEL

- front head lamp mounting, R.H.

1шт.

9

A59699

BEZEL

- front head lamp mounting, L.H.

1шт.

10

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - (#10-24 x 1/2" self-tapping) (plated)

6шт.

11

A59702

RETAINER

- front head lamp

2шт.

12

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

15

A59701

LAMP

- head (single beam), w/cab, Includes: Ref. 16 - 19, Serial Range: -8693001

2шт.

16

A25213

RETAINER

- sealed beam, w/cab

1шт.

A24572

LAMP

KIT - head lamp, w/cab, Includes: Ref. 19

1шт.

A11276

GASKET

- head lamp (not applicable), w/cab

1шт.

19

A24572

LAMP

HEAD LAMP - sealed beam, w/cab

1шт.

20

A64498

LAMP

- head (2 beam), w/cab, Includes: Ref. 21 and 22, Start Serial: 8693001

2шт.

21

A25213

RETAINER

- sealed beam, w/cab

1шт.

22

A43712

LAMP

- sealed unit (#4457), w/cab

1шт.

23

A59702

RETAINER

- front head lamp, w/cab

2шт.

24

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , w/Cab Ext-Int Tooth, 1/2"

2шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/Cab 1/2"-13, G5

2шт.
