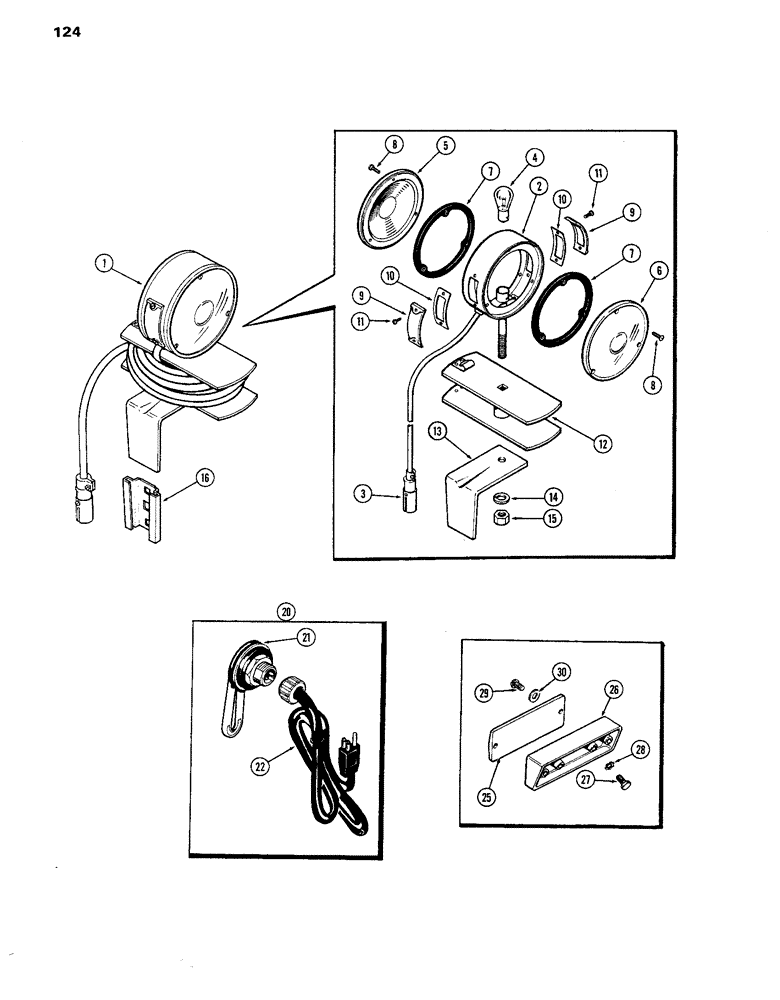

Запчасти Case IH 770 (124) - IMPLEMENT WARNING LAMP, CYLINDER BLOCK HEATER AND RED REFLECTOR (04) - ELECTRICAL SYSTEMS

A11066M

LAMP - attachment - warning, Includes: Ref. 1 - 16

1шт.

1

NS

NOT SERVICED

LAMP ASSY. - (Order A11066M), Includes: Ref. 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSY. - w/cord (Order A11066M)

1шт.

3

B50259

PLUG

- (to auxiliary socket)

1шт.

4

33686

BULB

- lamp (21 C.P.)

1шт.

5

B50337

LENS

- lamp (amber)

1шт.

6

B53962

LENS

- lamp (red)

1шт.

7

B50317

GASKET - lens

2шт.

8

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- lens (#6 x 1/2" N.C. rd. hd.)

6шт.

9

B50328

LENS - lamp, side (clear)

2шт.

10

B50329

GASKET - side lens

2шт.

11

182-43

SCREW - side lens (#6 x 5/16" N.C. rd. hd.)

4шт.

12

B50330

SPOOL - lamp cord reel

1шт.

13

B50331

BRACKET - lamp mounting

1шт.

14

92-7

LOCK WASHER,7/16"

1шт.

15

25-117

NUT,7/16"-20, G5

- (7/16" N.F. hex.)

1шт.

16

A8179

SOCKET

- lamp positioning

1шт.

20

A42279

HEATER

ASSY. - water, cylinder block, Includes: Ref. 21 and 22

1шт.

21

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - heater, retaining, cylinder block

1шт.

22

A42297

LAMP

CORD - electric, w/plugs, cylinder block, heater

1шт.

25

A62415

REFLECTOR

- red, fender rear

2шт.

26

A62416

BRACKET

- reflector, red

2шт.

27

187-1043

SCREW

- self tapping (1/4" N.C. x 1/2" hex.) (plated), red reflector

4шт.

28

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock (1/4" int./ext. teeth Shakeproof), red reflector

4шт.

29

187-1058

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self tapping (#10 x 5/8" round hd.) (plated), red reflector

4шт.

30

195-512

WASHER,#10

- plain () (plated), red reflector #10

4шт.
