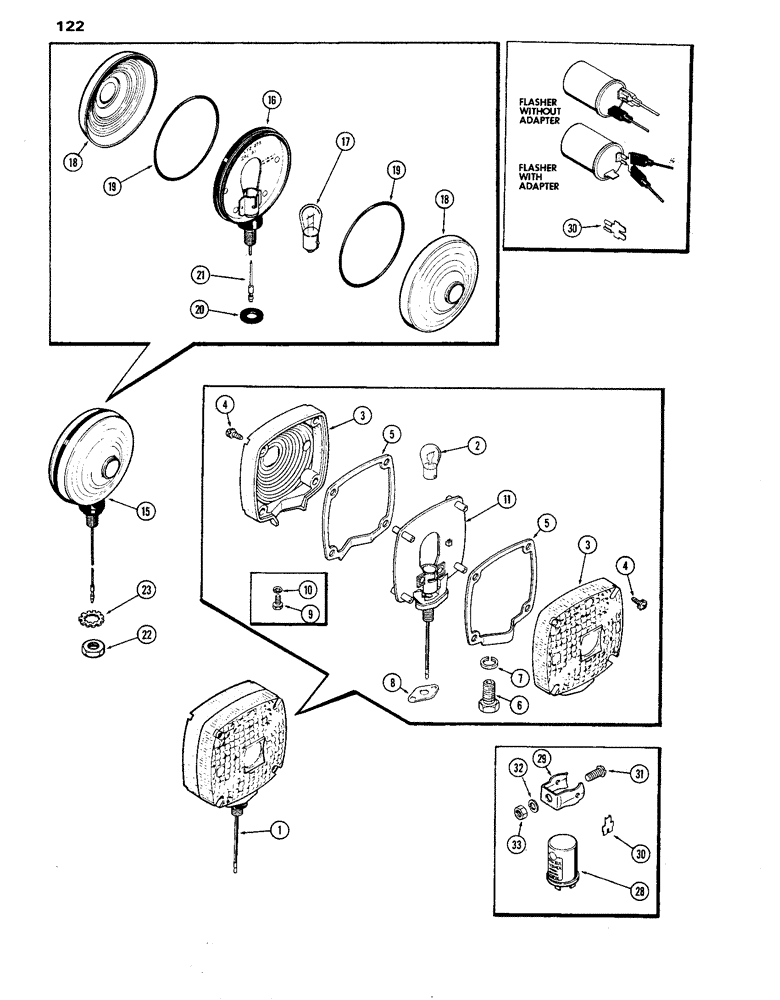

Запчасти Case IH 770 (122) - FLASHER LIGHT ATTACHMENT (04) - ELECTRICAL SYSTEMS

A44201

LIGHT ASSY.

KIT - replacement, flasher lamp, (Replaced A473730 kit), Includes: Ref. 1 - 11, Start Serial: 8693001

2шт.

1

NSS

NOT SOLD SEPARAT

LAMP ASSY. - flasher, double face - square (Replaced A64587 & F89713) (Order A44201)

1шт.

2

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

A44202

KIT

- lens replacement, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

LENS - long boss (amber) (Replaced F63434) (Order A44202)

2шт.

4

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - lens (#8-32 x 5/8" Phillips)

8шт.

5

A43731

GASKET

- sealing, lamp lens

2шт.

6

NSS

NOT SOLD SEPARAT

STUD - mounting (used w/o cab)

1шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used w/o cab 1/2"

1шт.

8

F63435

GASKET

- lamp base

1шт.

9

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- (1/4 x 1/2" N.C. hex.) (used w/cab)

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (used w/Cab) 1/4"

2шт.

11

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A44201)

1шт.

15

A34853

LAMP

ASSY. - flasher, Includes: Ref. 16 - 21, Serial Range: -8693001

2шт.

16

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A34853)

1шт.

17

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

18

A41261

LENS

- lamp

2шт.

19

NLS

NO LONGER SERVICED

"O" RING - lamp

2шт.

20

A41263

GASKET - lamp

1шт.

21

A41260

WIRE - lamp

1шт.

22

129-125

NUT,1/2"-20, G5

2шт.

23

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

28

A65550

FLASHER UNIT

FLASHER - 12 volt w/sealing gasket (Replaced A34867)

1шт.

29

A34869

BRACKET

- flasher element mounting

1шт.

30

A34862

KIT

- adapter, flasher by-pass

1шт.

31

173-217

SCREW,Sl Rnd Hd, 5/16" - 18 x 3/4"

- machine, 5/16 x 3/4" N.C. round head

1шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

33

9635082

NUT,5/16" - 18, Gr 5

1шт.
