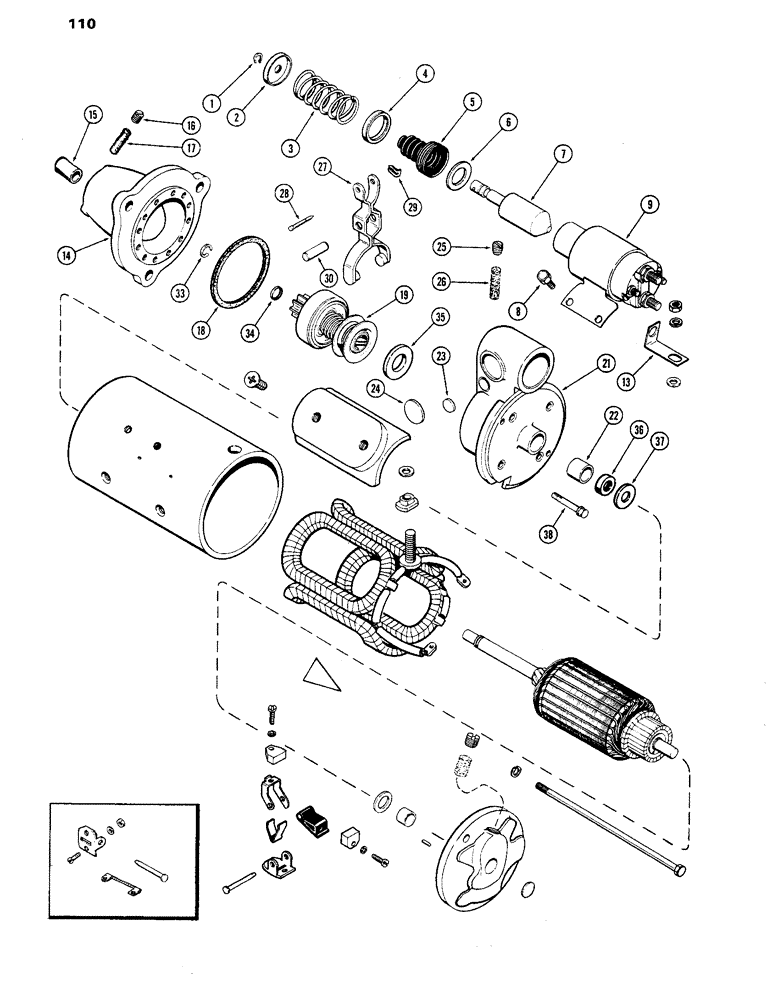

Запчасти Case IH 770 (110) - A59670 STARTER, 267B DIESEL ENGINE, USED PRIOR TO TRACTOR S/N 8696850 (CONT) (04) - ELECTRICAL SYSTEMS

A59670

MOTOR

STARTER ASSY. - (Delco-Remy #1113688), Includes: Ref. 1 - 38 and 40 - 75 on Fig. 112

1шт.

1

G46146

SNAP RING,#37, Ext

RING - snap, , spring retaining #37, Ext

1шт.

2

R21572

RETAINER

- spring

1шт.

3

A41242

SPRING

- plunger return

1шт.

4

R21571

RETAINER

- spring

1шт.

5

A42308

BOOT

- dust, solenoid

1шт.

6

A42008

WASHER

- spring retainer

1шт.

7

A25394

PLUNGER

- solenoid

1шт.

8

R15067

SCREW - switch attaching

4шт.

9

A40461

IGNITION SWITCH

SWITCH ASSY. - solenoid (See Fig. 117)

1шт.

13

A25370

CONNECTOR, ELEC

CONNECTOR - switch

1шт.

14

A25347

HOUSING - drive, Includes: Ref. 15 - 17

1шт.

15

A40868

BUSHING

- drive housing (9/16 x 3/4 x 3/4")

1шт.

16

221-1041

PLUG

- pipe, oil wick hole

1шт.

17

R15023

WICK

- oil

1шт.

18

A41508

GASKET

- drive housing to lever housing

1шт.

19

A41550

DRIVE

ASSY. - starter

1шт.

21

A41243

HOUSING - lever, Includes: Ref. 22 - 26

1шт.

22

A40944

BUSHING

- lever housing (47/64 x 57/64 x 3/4")

1шт.

23

A42064

PLUG

- expansion (1/2" diameter)

1шт.

24

A42013

PLUG

- expansion (1-3/16" diameter)

1шт.

25

221-1041

PLUG

- pipe, oil wick hole

1шт.

26

A41417

WICK

- oil

1шт.

27

A25398

LEVER

- shift

1шт.

28

A25400

PIN

- lever, starter shifter

1шт.

29

A25406

OIL SEAL

RING - lever pin

1шт.

30

A25402

STUD

- lever

1шт.

33

R15048

RING

- pinion stop retainer

1шт.

34

R15049

COLLAR

- pinion stop

1шт.

35

R15043

WASHER

- brake, lever housing & drive

1шт.

36

A25407

OIL SEAL

- oil, lever housing (21/32 x 1-3/8 x 25/64")

1шт.

37

A42202

WASHER

- spacer, lever housing & armature

1шт.

38

A42012

BOLT (SPREADER),5/16" x 2 13/32"

BOLT - lever housing to drive housing

4шт.
