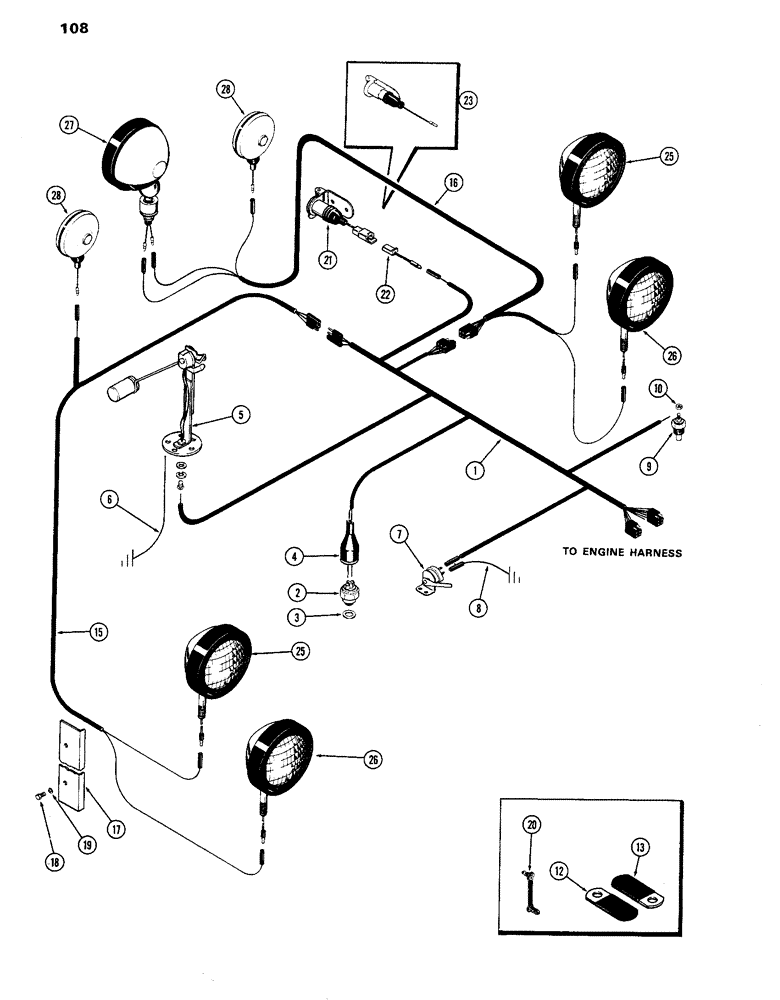

Запчасти Case IH 770 (108) - ELECTRICAL EQUIPMENT AND WIRING, 251B SPARK IGNITION ENGINE, TRANSMISSION HARNESS, W/ CAB (04) - ELECTRICAL SYSTEMS

1

A62413

HARNESS

- wire, transmission

1шт.

2

A20990

SWITCH

- safety, neutral start

1шт.

3

G49401

SHIM,.005" Thk

Neutral start switch (Mechanical shift) .005" Thk

1шт.

3

G49402

SHIM,.010" Thk

Neutral start switch (Mechanical shift) .010" Thk

1шт.

4

A61028

BOOT

- neutral start switch

1шт.

5

A62092

UNIT

- fuel sending

1шт.

6

A59710

ELECTRICAL WIRE

WIRE - ground, fuel gauge sender

1шт.

7

A33977

SWITCH

- hand brake warning

1шт.

8

A59711

ELECTRICAL WIRE

WIRE - ground, hand brake switch

1шт.

9

A21462

SENDER UNIT

UNIT - sending, transmission temperature

1шт.

10

129-661

NUT

- (#10 N.F. hex.) (Brass)

1шт.

12

A37179

CLIP

- transmission sending wire

1шт.

13

A22880

CLIP

- trans. wire harness & fuel sending unit

1шт.

15

A62414

HARNESS

- wire, fender, R.H.

1шт.

16

A61146

HARNESS

- wire, fender, L.H.

1шт.

17

A59720

SHIELD - fender wire harness, R.H. (w/12" fender)

1шт.

17

A59721

SHIELD - fender wire harness, L.H. (w/12" fender)

1шт.

17

A60892

SHIELD - fender wire harness, R.H. & L.H. (w/15" fender)

2шт.

18

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

20

A62547

CLAMP

- self retaining, fender light wires

7шт.

21

A65059

SOCKET/RECEPTACLE

SOCKET - auxiliary outlet w/male blade terminal (Replaced A8170)

1шт.

22

A65060

ELECTRICAL WIRE

WIRE - socket adapter lead

1шт.

23

A8170

SOCKET

- auxiliary outlet w/male bullet terminal (Order A65059 & A65060)

1шт.

25

A59701

LAMP

- head, (See Fig. 126), Serial Range: -8693001

2шт.

25

A64498

LAMP

- head, (See Fig. 126), Start Serial: 8693001

2шт.

26

A59724

HEADLAMP

LAMP - cultivator, front (See Fig. 128) (For 12" fender)

2шт.

26

A59723

LAMP

- cultivator, front (See Fig. 128) (For 15" fender)

2шт.

27

A59703

LAMP

- rear flood & tail (See Fig. 130)

1шт.

28

REF

INSTRUCTION

LAMP - flasher (See Fig. 122)

2шт.
