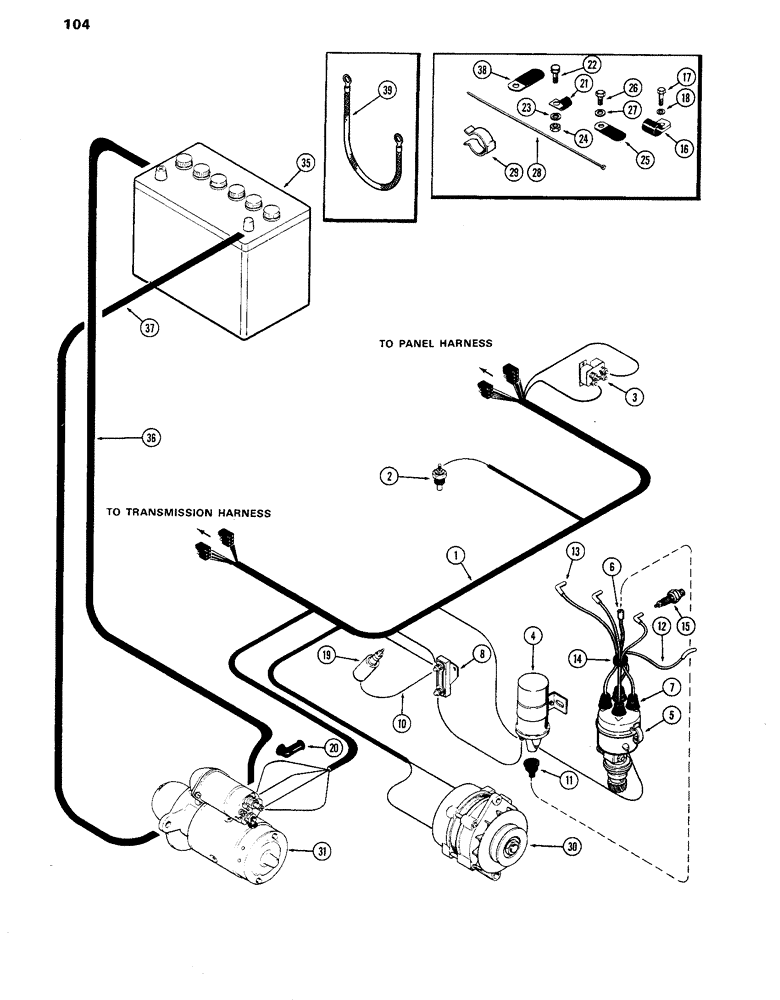

Запчасти Case IH 770 (104) - ELECTRICAL EQUIPMENT AND WIRING, 251B SPARK IGNITION ENGINE, ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

A62411

HARNESS

- wire, engine

1шт.

2

A61787

TRANSMITTER

UNIT - sending, engine temperature

1шт.

3

A59704

BREAKER

- circuit (See Fig. 100)

1шт.

4

A40778

COIL

- 6 volt (See Fig. 100)

1шт.

5

A58810

DISTRIBUTOR - (See Fig. 100 & 120)

1шт.

6

A29180

CABLE

WIRE - distributor cap to coil (See A62857)

1шт.

6

A62857

ELECTRICAL WIRE

WIRE - distributor cap to coil (noise supression type)

1шт.

7

A29338

COVER

NIPPLE - distributor & coil wire

5шт.

8

A24504

RESISTOR

- 12 volt

1шт.

10

A59716

WIRE - carburetor solenoid to ignition resistor

1шт.

11

G46803

BOOT

NIPPLE - ignition coil wire

1шт.

12

A61212

WEDGE

WIRE - #1 & #4 spark plug (15") (See A62853)

2шт.

12

A62853

CABLE

WIRE - #1 & #4 spark plug (15") (noise suppression type)

2шт.

13

A20144

ELECTRICAL WIRE

WIRE - #2 & #3 spark plug (11") (See A62854)

2шт.

13

A62854

CABLE

WIRE - #2 & #3 plug (11") (noise suppression type)

2шт.

14

A23258

RING - ignition wires

1шт.

15

G44840

SPARK PLUG

PLUG - spark

4шт.

16

A7922

CLIP

- wire, carburetor solenoid

1шт.

17

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Clip Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

A58808

SOLENOID

- carburetor

1шт.

20

A21753

CAP

- starter positive terminal

1шт.

21

A59718

CLAMP

CLIP - engine wire harness

1шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Clip Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

q24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

25

A37179

CLIP

- fender & alternator wires

1шт.

26

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Clip Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - engine wire hanress

1шт.

29

A60894

CLIP

- alternator wire harness to breather tube

1шт.

30

A61062

ALTERNATOR ASSY. - (See Fig. 118)

1шт.

31

A59671

MOTOR

STARTER MOTOR - (See Fig. 114)

1шт.

35

A58559

BATTERY

- 12 volt

1шт.

36

A62140

CABLE

- battery, positive

1шт.

37

A59677

CABLE - battery, negative (ground)

1шт.

38

A22883

CLIP

- battery cable

1шт.

39

A64704

STRAP

- ground, firewall

1шт.
