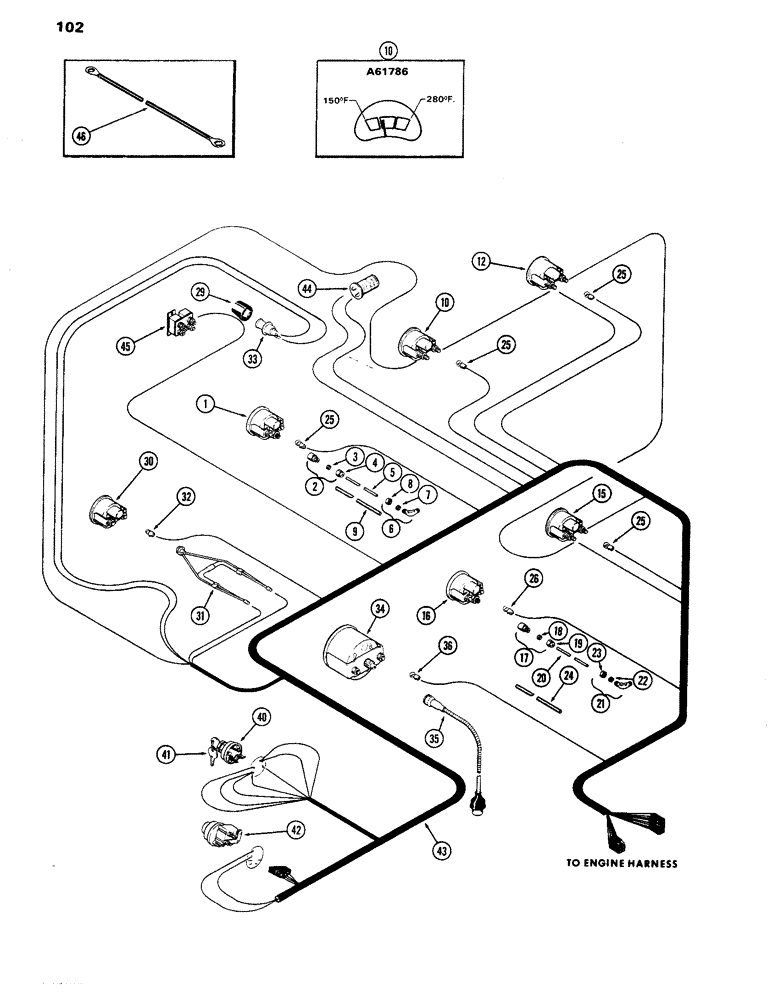

Запчасти Case IH 770 (102) - INSTRUMENTS AND WIRING, 251B SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A62006

GAUGE

- engine oil pressure

1шт.

2

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - (1/8" tube x 1/8" P.T.), Includes: Ref. 3 and 4

1шт.

3

222-100

TUBE NUT,1/8" Tube

SLEEVE - (for ) 1/8" Tube

1шт.

4

222-110

TUBE NUT,3/8"-24

NUT - (for 1/8" tube)

1шт.

5

A59679

TUBE

- engine oil pressure

1шт.

6

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 90 Deg. (1/8" tube x 1/8" P.T.), Includes: Ref. 7 and 8

1шт.

7

222-100

TUBE NUT,1/8" Tube

SLEEVE - (for ) 1/8" Tube

1шт.

8

222-100

TUBE NUT,1/8" Tube

NUT - (for ) 1/8" Tube

1шт.

9

A59680

LOOM

- engine oil pressure tube

1шт.

10

A61786

ELECTRICAL GAUGE

GAUGE - engine temperature (Replaces A61785)

1шт.

12

A59682

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

15

A64491

ELECTRICAL GAUGE

GAUGE - transmission temperature (Replaced A59683)

1шт.

16

A59684

ELECTRICAL GAUGE

GAUGE - transmission pressure

1шт.

Used on powershift models with and without PTO and on mechanical shift models with PTO.

1шт.

17

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - (1/8" tube x 1/8" P.T.), Includes: Ref. 18 and 19

1шт.

18

222-100

TUBE NUT,1/8" Tube

SLEEVE - (for ) 1/8" Tube

1шт.

19

222-110

TUBE NUT,3/8"-24

NUT - (for 1/8" tube)

1шт.

20

A59685

TUBE

- transmission pressure gauge

1шт.

21

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 90 Deg. (1/8" tube x 1/8" P.T.), Includes: Ref. 22 and 23

1шт.

22

222-100

TUBE NUT,1/8" Tube

SLEEVE - (for ) 1/8" Tube

1шт.

23

222-110

TUBE NUT,3/8"-24

NUT - (for 1/8" tube)

1шт.

24

A59686

LOOM

- transmission pressure gauge tube

1шт.

25

A14553

BULB

- gauges

4шт.

26

A14553

BULB

- transmission pressure gauge

1шт.

Used on powershift models with and without PTO and on mechanical shift models with PTO.

1шт.

205-68

HOLE PLUG BUTTON,2 3/32"

PLUG - button (2-9/16") (used w/mech. shift, w/o P.T.O.)

1шт.

29

A62677

GUARD

SHROUD - hand brake warning lamp

1шт.

30

A59687

DIAL

CASE - alternator warning lamp

1шт.

31

A59688

SPRING

RECEPTACLE & WIRE - alternator warning lamp

1шт.

32

A14553

BULB

- alternator warning lamp

1шт.

33

A59689

LAMP

- warning, hand brake

1шт.

A42296

BULB

- 12 volt flasher (red)

1шт.

34

A62648

ELECTRICAL GAUGE

TACHOMETER ASSY.

1шт.

35

A59692

CABLE

- tachometer drive

1шт.

A24523

KIT

- repair, tachometer cable

1шт.

36

A145853

BULB - tachometer light

1шт.

40

A59693

SWITCH

ASSY. - ignition & starting

1шт.

41

A60319

KEY

ASSY. - starting (Set of 2)

1шт.

42

A59694

SWITCH

- lights, (See Fig. 130), Serial Range: -8693001

1шт.

42

A141607

SWITCH

- lamp (See Fig. 130) (Replaces A64499), Start Serial: 8693001

1шт.

CIRCUIT BREAKER NOT INCLUDED. IF REQUIRED USE A45686.

1шт.

43

A59705

HARNESS

- wire, instrument panel

1шт.

44

A65550

FLASHER UNIT

- 12 volt w/sealing gasket (Repl. A34867)

1шт.

45

A59704

BREAKER

- circuit, 80 amp. (See Fig. 100)

1шт.

46

A60882

STRAP

- ground, instrument panel

1шт.
