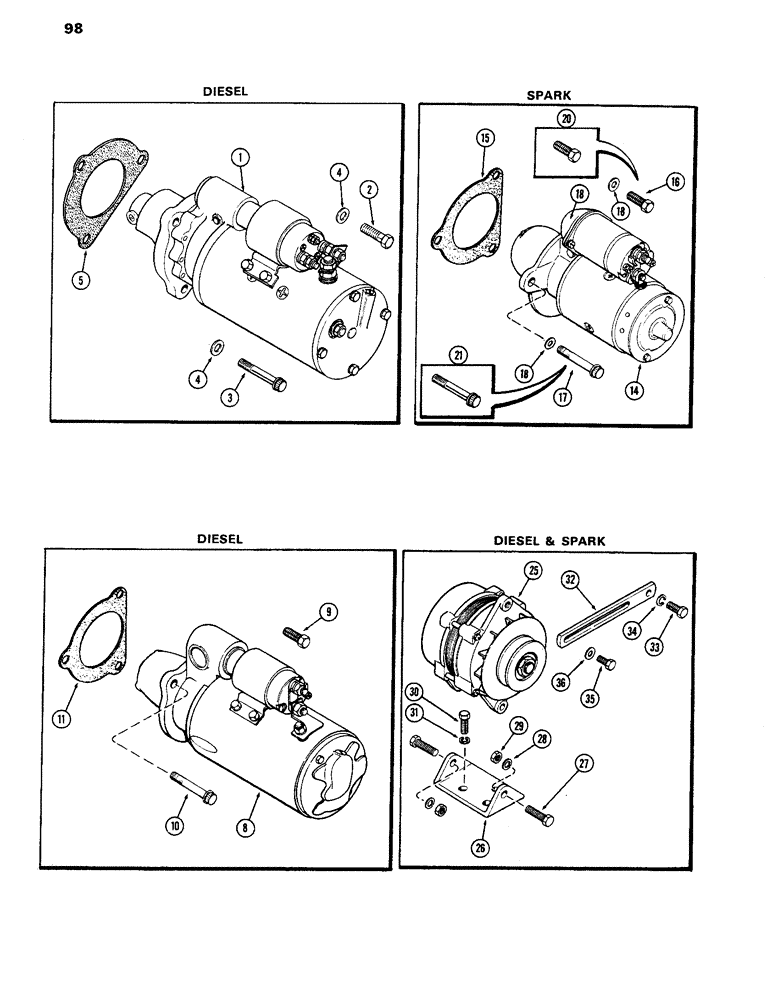

Запчасти Case IH 770 (098) - ELECTRICAL EQUIPMENT MOUNTING, 267B DIESEL AND 251B SPARK IGNITION ENGINES (04) - ELECTRICAL SYSTEMS

1

A64906

MOTOR

STARTER MOTOR - (1st used trac. ser. no. 8696850) (See Figures 115A & 115C)

1шт.

1

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104212A1C

CORE-STARTER

Return Part Number

1шт.

2

113-483

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

BOLT - (1/2 x 1-3/4" N.C. hex., Nylock)

2шт.

3

166-964

SCREW - cap (1/2 x 3-1/4" N.C. Ferry Head)

1шт.

4

L30674

WASHER

WASHER - plain (1/2 x 1 x 1/8")

3шт.

5

A27933

GASKET

GASKET - starter motor (w/Power Shift only)

1шт.

8

A59670

MOTOR

STARTER MOTOR, (See Figures 110 & 112) (Order 1-A64906, 2-113-483, 1-166-91 & 3-L30674), Serial Range: -8696850

1шт.

9

A10009

SCREW,Stud, Hex, 1/2" - 13 x 1 1/4", Nylon Insert

SCREW - (1/2 x 1-1/4" N.C. hex., Nylock)

2шт.

10

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW - cap (1/2 x 3" N.C. Ferry Head)

1шт.

11

A27933

GASKET

GASKET - starter motor (w/Power Shift only)

1шт.

14

A59671

MOTOR

STARTER MOTOR - (Spark) (See Figure 114), (251B) ignition engine

1шт.

15

A27933

GASKET

GASKET - starter motor (w/Power Shift Only), (251B) spark ignition engine

1шт.

16

113-483

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

BOLT - (1/2 x 1-1/2" N.C. hex., Nylock), (251B) spark ignition engine, Start Serial: 8696850

2шт.

17

166-94

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - cap (1/2 x 3-1/4" N.C. Ferry head), (251B) spark ignition engine, Start Serial: 8696850

1шт.

18

L30674

WASHER

WASHER - (1/2 x 1 x 1/8"), (251B) spark ignition engine, Start Serial: 8696850

3шт.

20

A10009

SCREW,Stud, Hex, 1/2" - 13 x 1 1/4", Nylon Insert

BOLT - (1/2 x 1-1/4" N.C. hex., Nylock), (251B) spark ignition engine, Serial Range: -8696850

2шт.

21

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW - cap (1/2 x 3" N.C. Ferry Head), (251B) spark ignition engine, Serial Range: -8696850

1шт.

25

A61062

SPARE PART ALTERNATOR ASSY. - (See Figure 118), (267B) diesel & (251B) spark ignition engines

1шт.

26

A61063

BRACKET

BRACKET - alternator mounting, (267B) diesel & (251B) spark ignition engines

1шт.

27

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT, , (267B) diesel & (251B) spark ignition engines Hex, 3/8"-16 x 1 1/2", G5

2шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (267B) diesel & (251B) spark ignition engines 3/8"

2шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , (267B) Diesel & (251B) Spark ignition engines 3/8"-16, G5

2шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , (267B) diesel & (251B) spark ignition engines Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

31

92-6

LOCK WASHER,3/8"

LOCK WASHER, (267B) diesel & (251B) spark ignition engines 3/8"

3шт.

32

A59167

STRAP

STRAP - alternator adjusting, (267B) diesel & (251B) spark ignition engines

1шт.

33

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , (267B) diesel & (251B) spark ignition engines Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

34

92-6

LOCK WASHER,3/8"

LOCK WASHER, (267B) diesel & (251B) spark ignition engines 3/8"

1шт.

35

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd, (267B) diesel & (251B) spark ignition engines

1шт.

36

195-521

WASHER,5/16", SAE

WASHER - (11/32 x 11/16 x 1/16"), (267B) diesel & (251B) spark ignition engines

1шт.
