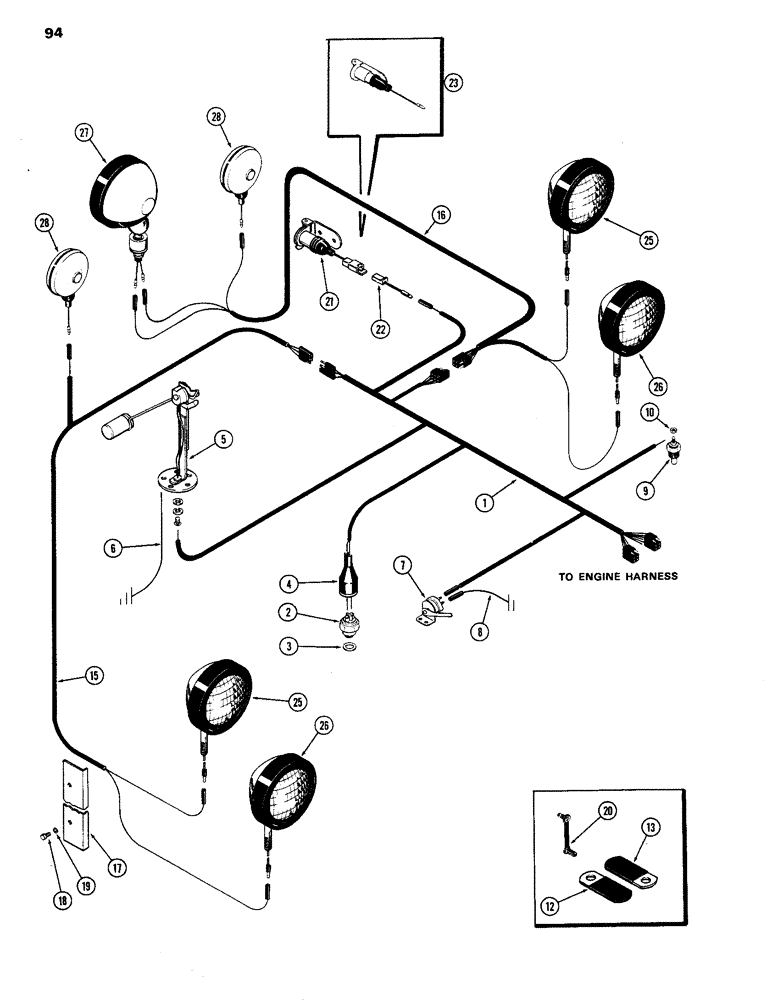

Запчасти Case IH 770 (094) - ELECTRICAL EQUIPMENT AND WIRING, 267B DIESEL ENGINE, TRANSMISSION HARNESS, W/ CAB (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A62413
HARNESS
- wire, transmission
1шт.
2
A20990
SWITCH
- safety, neutral start
1шт.
3
G49401
SHIM,.005" Thk
Neutral start switch (Mechanical shift) .005" Thk
1шт.
3
G49402
SHIM,.010" Thk
Neutral start switch (Mechanical shift) .010" Thk
1шт.
4
A61028
BOOT
- neutral start switch
1шт.
5
A62092
UNIT
- sending, fuel
1шт.
6
A59710
ELECTRICAL WIRE
WIRE - ground, fuel gauge sender
1шт.
7
A33977
SWITCH
- warning, hand brake
1шт.
8
A59711
ELECTRICAL WIRE
WIRE - ground, hand brake switch
1шт.
9
A21462
SENDER UNIT
UNIT - sending, transmission temperature
1шт.
10
129-661
NUT
- (#10 N.F. hex., brass)
1шт.
12
A37179
CLIP
- transmission sending wire
1шт.
13
A22880
CLIP
- trans. wire harness & fuel sending unit
1шт.
15
A62414
HARNESS
- fender wire, R.H.
1шт.
16
A61146
HARNESS
- fender wire, L.H.
1шт.
17
A59720
SHIELD - fender wire harness, L.H. (w/12" fender)
1шт.
17
A59721
SHIELD - fender wire harness, R.H. (w/12" fender)
1шт.
17
A60892
SHIELD - fender wire harness, R.H. & L.H. (w/15" fender)
2шт.
18
113-101
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
4шт.
19
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
4шт.
20
A62547
CLAMP
- self retaining, fender light wires
7шт.
21
A65059
SOCKET/RECEPTACLE
SOCKET - auxiliary outlet w/male blade terminal (Replaced A8170)
1шт.
22
A65060
ELECTRICAL WIRE
WIRE - socket adapter lead
1шт.
23
A8170
SOCKET
- auxiliary outlet w/male bullet terminal (Order A65059 & A65060)
1шт.
25
A59701
LAMP
- head, (See Fig. 126), Serial Range: -8693001
2шт.
25
A64498
LAMP
- head, (See Fig. 126), Start Serial: 8693001
2шт.
26
A59724
HEADLAMP
LAMP - front cultivator (See Fig. 128) (For 12" fender)
2шт.
26
A59723
LAMP
- front cultivator (See Fig. 128) (For 15" fender)
2шт.
27
A59703
LAMP
- rear flood & tail (See Fig. 130)
1шт.
28
REF
INSTRUCTION
LAMP - flasher (See Fig. 122)
2шт.
Выбрано товаров: 30
