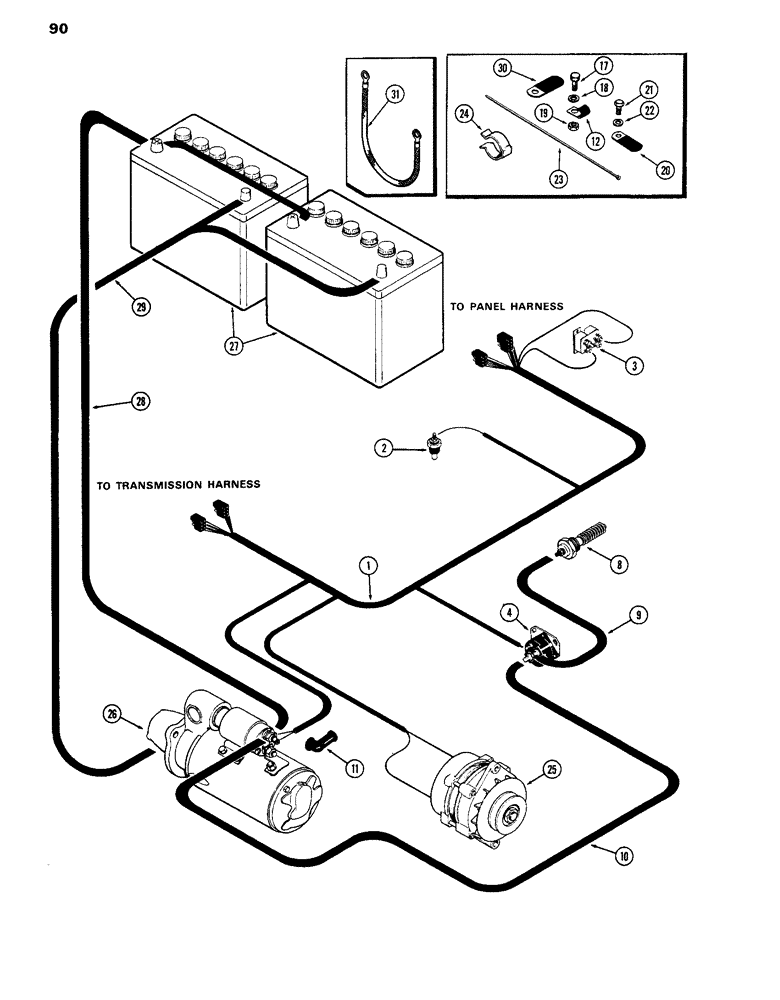

Запчасти Case IH 770 (090) - ELECTRICAL EQUIPMENT AND WIRING, 267B DIESEL ENGINE, ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

A65133

WIRE HARNESS

HARNESS - wire, engine (Replaced A59706)

1шт.

2

A61787

TRANSMITTER

UNIT - sending, engine temperature

1шт.

3

A59704

BREAKER

BREAKER - circuit (See Fig. 100)

1шт.

4

A39079

SOLENOID

SOLENOID - heater, manifold (See Fig. 100)

1шт.

8

A37775

HEATER

HEATER - manifold

1шт.

9

A59712

SPARE PART WIRE - manifold, Serial Range: heater-solenoid

1шт.

10

A59713

ELECTRICAL WIRE

WIRE WIRE - heater, Serial Range: solenoid-starter

1шт.

11

A21753

CAP

CAP - rubber, starter positive terminal & heater solenoid battery terminal

2шт.

12

A59718

CLAMP

SPARE PART CLIP - engine wire harness

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, , Clip Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

20

A37179

CLIP

CLIP - fender & alternator wires

1шт.

21

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

BOLT, , Clip Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

22

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP STRAP - engine wire harness

1шт.

24

A60894

CLIP

CLIP - alternator wire harness to breather tube

1шт.

25

A61062

SPARE PART ALTERNATOR ASSY. - (See Fig. 118)

1шт.

26

A64906

MOTOR

STARTER MOTOR, (See Figs. 115A & 115C), Start Serial: 8696850

1шт.

26

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

26

104212A1C

CORE-STARTER

Return Part Number

1шт.

26

A59670

MOTOR

STARTER MOTOR, (See Figs. 110 & 112), Serial Range: -8696850

1шт.

27

A58559

BATTERY

BATTERY - 12 volt

2шт.

28

A62139

NEG BATTERY CABLE

CABLE - battery, positive

1шт.

29

A59675

NEG BATTERY CABLE

SPARE PART CABLE - battery, negative (ground)

1шт.

30

A22883

CLIP

CLIP - battery cable

1шт.

31

A64704

STRAP

STRAP - ground (20")

1шт.
