Запчасти Case IH 770 (083A) - FUEL TANK MOUNTING, 251B SPARK IGNITION ENGINE (03) - FUEL SYSTEM

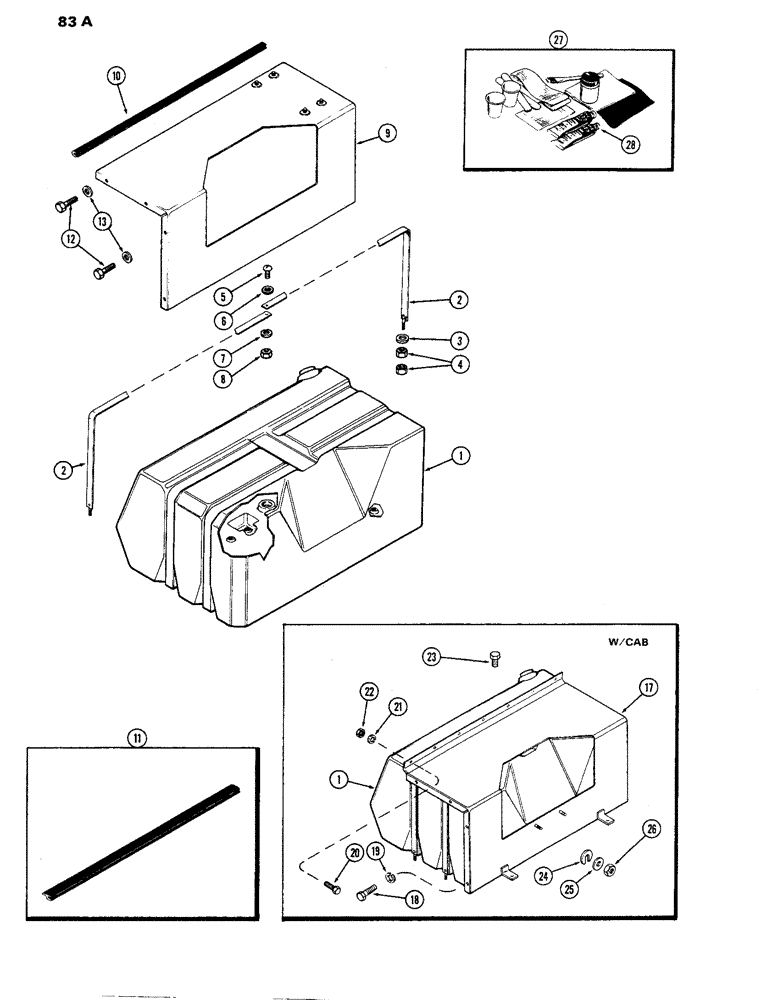

Схема запчастей Case IH 770 - (083A) - FUEL TANK MOUNTING, 251B SPARK IGNITION ENGINE (03) - FUEL SYSTEM
10
22
3
11
8
27
21
13
12
5
19
20
2
1
6
26
2
23
18
17
9
1
28
24
25
7
4

Артикул

Название

Примечание

Количество

1

A59490

FUEL TANK

TANK - fuel

1шт.

2

A62055

STRAP

ASSY. - fuel tank mounting

4шт.

3

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64")

4шт.

4

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

8шт.

5

475-49

SCREW - machine (1/4 x 9/16" N.C. rd. hd.)

2шт.

6

95-4

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

A59270

COVER - fuel tank (w/o cab)

1шт.

10

A64866

GUARD

MOULDING - fuel tank (used w/o cab), Start Serial: 8693037

1шт.

11

A59498

MOLDING - fuel tank cover (used w/o cab) (Order A64866), Serial Range: -8693037

1шт.

12

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

13

195-104

WASHER,3/8"

- (7/16 x 1 x 3/32")

8шт.

17

A62680

COVER

- fuel tank (w/cab)

1шт.

18

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

20

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

7шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

7шт.

22

129-120

NUT - (5/16" N.C. hex.)

7шт.

23

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8 x 3/4" N.C. hex.

2шт.

24

A62687

SHIM,.11" Thk

Tank cover and casting .11" Thk

1шт.

25

195-81

WASHER

- (7/16 x 7/8 x 3/32")

2шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

27

A44265

KIT

- nylon repair, fuel tank (Replaced A42782)

1шт.

28

A44266

KIT

ADHESIVE - repair kit

1шт.

Выбрано товаров: 25
