(082) - FUEL TANK AND LINES, 251B SPARK IGNITION ENGINE

Запчасти Case IH 770 (082) - FUEL TANK AND LINES, 251B SPARK IGNITION ENGINE (03) - FUEL SYSTEM

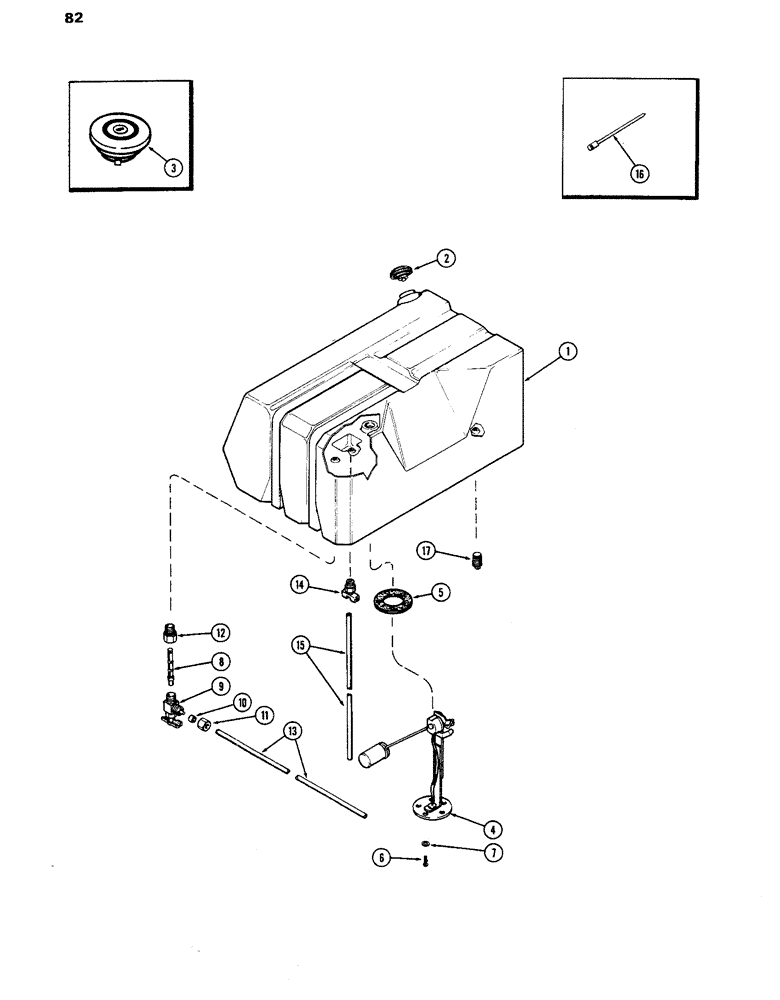

Схема запчастей Case IH 770 - (082) - FUEL TANK AND LINES, 251B SPARK IGNITION ENGINE (03) - FUEL SYSTEM
5
8
17
2
11
7
1
9
15
14
4
16
10
12
13
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A59490

FUEL TANK

TANK - fuel

1шт.

2

A32119

CAP

- fuel tank filler (w/o lock)

1шт.

3

A32120

CAP

- fuel tank filler (w/lock)

1шт.

4

A62092

UNIT

- sending, fuel gauge

1шт.

5

A11822

GASKET

- sending unit

1шт.

6

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- machine (#10 x 7/16" N.F. rd. hd.)

5шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

8

A64596

STRAINER ELEMENT

FILTER - fuel tank (Replaces A62353)

1шт.

9

A62354

VALVE

- fuel tank, Includes: Ref. 10 and 11

1шт.

10

222-5186

SLEEVE,3/8" Tube

- (for ) 3/8" Tube

1шт.

11

222-5161

NUT - (for 3/8" tube)

1шт.

12

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- outlet (1/4 x 1/4")

1шт.

13

A62027

TUBE

- tank, Serial Range: outlet-engine

1шт.

14

217-107

VALVE

- drain cock

1шт.

15

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water trap drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tube

2шт.

17

221-13

PLUG,Sq Hd, 3/8"-18

- pipe (3/8" square head)

1шт.
