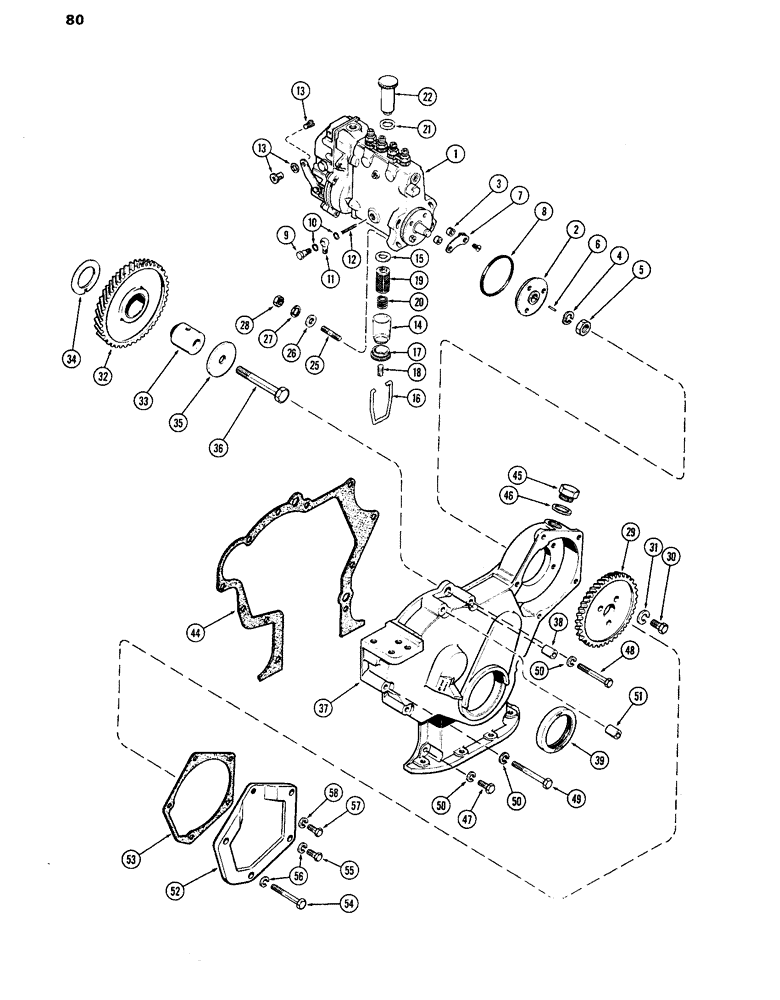

Запчасти Case IH 770 (080) - FUEL INJECTION PUMP AND DRIVE, 267B DIESEL ENGINE (03) - FUEL SYSTEM

1

A62568

PUMP ASSY. - fuel injection (2600 R.P.M.) (Bosch Pump #PES4A80C4201LS2263) (Bosch Governor #EP/RSV 375-1000A2B), Includes: Ref. 2 - 22

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - pump timing pointer

2шт.

4

A42312

LOCK WASHER

- lock, pump drive hub nut

1шт.

5

A42313

NUT

- pump drive hub

1шт.

6

A20933

KEY

- pump drive, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - pump adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - seal, pump mounting

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- copper, tube fitting

2шт.

11

A25191

FITTING

- banjo, oil, Serial Range: tube-pump

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

A42829

SCREW,M4 x 3/4" x 0.75mm

- lock, pump stop control cable

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAILNUT - retaining

1шт.

18

A43349

STUD

- retaining, bowl

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter, transfer pump

1шт.

20

A43345

SPRING

- retaining, element

1шт.

21

A43351

SEAL

- primer & port copper gasket

2шт.

22

A43343

CARTRIDGE

PRIMER - hand, fuel pump

1шт.

25

A58689

STUD

- pump mounting (3/8" N.C. x 1-7/8")

4шт.

26

A57470

WASHER

- (13/32 x 11/16 x 16 ga.)

4шт.

27

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

28

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

4шт.

29

A58693

GEAR

- injection pump (w/o hub) (48 teeth)

1шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

31

92-6

LOCK WASHER,3/8"

3шт.

32

A62542

GEAR

ASSY. - idler (53 teeth) (Replaces A58686)

1шт.

33

A58690

SHAFT

- idler gear

1шт.

34

A58691

WASHER

- thrust, idler shaft

1шт.

35

A58692

PLATE

- thrust, idler shaft

1шт.

36

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.

37

A58609

COVER

ASSY. - timing gear, Includes: Ref. 38

1шт.

38

A58611

PIN

- dowel, cover

2шт.

39

A62049

OIL SEAL

- crankshaft, front

1шт.

44

A58612

GASKET

- cover, timing gear

1шт.

45

21140

PLUG - timing window

1шт.

46

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

47

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

48

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- (3/8 x 2-1/2" N.C. hex.)

2шт.

49

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- (3/8 x 3-1/2" N.C. hex.)

3шт.

50

92-6

LOCK WASHER,3/8"

9шт.

51

A19771

SPACER - alternator pry point

1шт.

52

A61053

COVER

- fuel pump

1шт.

53

A58615

GASKET

- fuel pump cover

1шт.

54

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- (3/8 x 3" N.C. hex.)

2шт.

55

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

56

92-6

LOCK WASHER,3/8"

4шт.

57

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

58

92-5

LOCK WASHER,5/16"

1шт.
