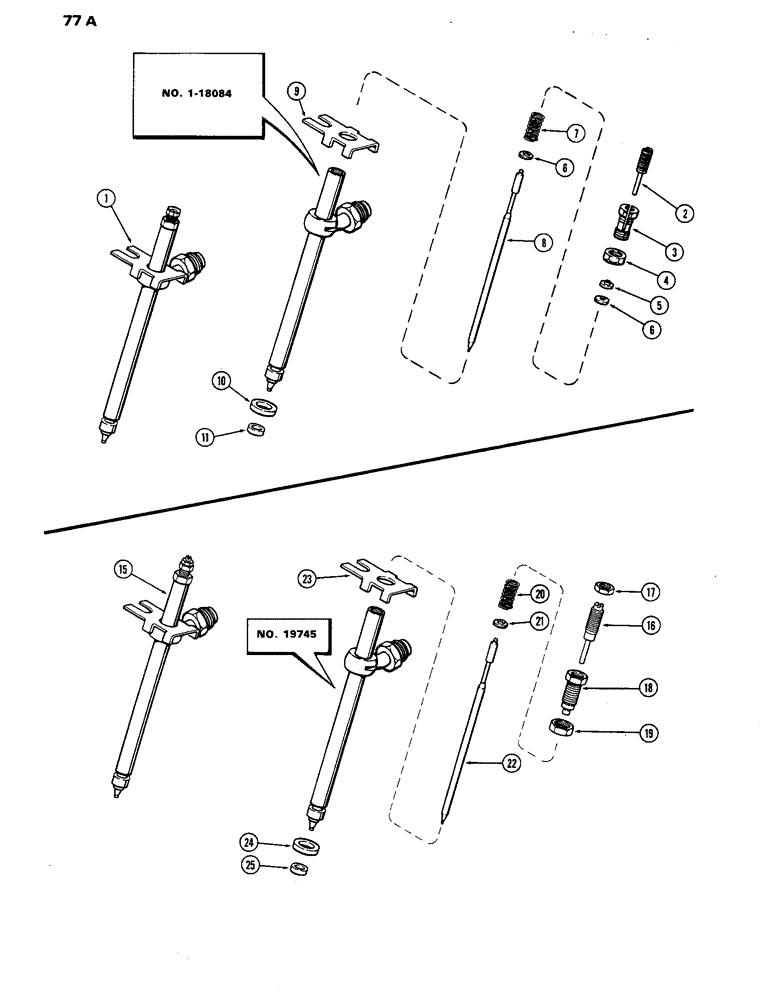

Запчасти Case IH 770 (077A) - FUEL INJECTION NOZZLE, 267B DIESEL ENGINE (03) - FUEL SYSTEM

1

A58694

NOZZLE

ASSY. - injection (Supplier's No. I-18084 stamped on body), Includes: Ref. 2 - 11

4шт.

Whenever nozzle is removed from head, the seal, A41402 & washer A41403 must be replaced before nozzle is installed back into head.

1шт.

A138322R

REMAN-INJECT NOZZLE

770 S/N 8675001 & AFTER (1/69-12/72) REMAN FOR NEW P/N A58694

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting

1шт.

3

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

4

A42424

LOCK NUT

- hex.

1шт.

5

A41407

WASHER

- ball

1шт.

6

A41401

SEAT

- spring

2шт.

7

A41444

VALVE SPRING

SPRING - pressure adjusting (17/32" free length)

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

9

A41768

PLATE

- nozzle locating

1шт.

10

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

15

A62809

NOZZLE CAP

NOZZLE ASSY. - injection (Supplier's No. 19745 stamped on body) (color code red), Includes: Ref. 16 - 25, Start Serial: 2504221

1шт.

Whenever nozzle is removed from head, the seal, A41402 & washer A41403 must be replaced before nozzle is installed back into head.

1шт.

A138322R

REMAN-INJECT NOZZLE

770 (S/N 8675001 & AFTER) (1/69-12/72) REMAN FOR NEW P/N A62809

1шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

16

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting, Start Serial: 2504221

1шт.

17

A43602

NUT

- lock, lift adjusting (#10-56 thrd.), Start Serial: 2504221

1шт.

18

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting, Start Serial: 2504221

1шт.

19

A42424

LOCK NUT

- lock, pressure adjusting (5/16"-48 thrd.), Start Serial: 2504221

1шт.

20

A43601

SPRING

- pressure adjusting (bown color code) (33/64" free length), Start Serial: 2504221

1шт.

21

A41401

SEAT

- spring, Start Serial: 2504221

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - nozzle, Start Serial: 2504221

1шт.

23

A41768

PLATE

- nozzle locating, Start Serial: 2504221

1шт.

24

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain, Start Serial: 2504221

1шт.

25

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop 21, Start Serial: 2504221

1шт.
