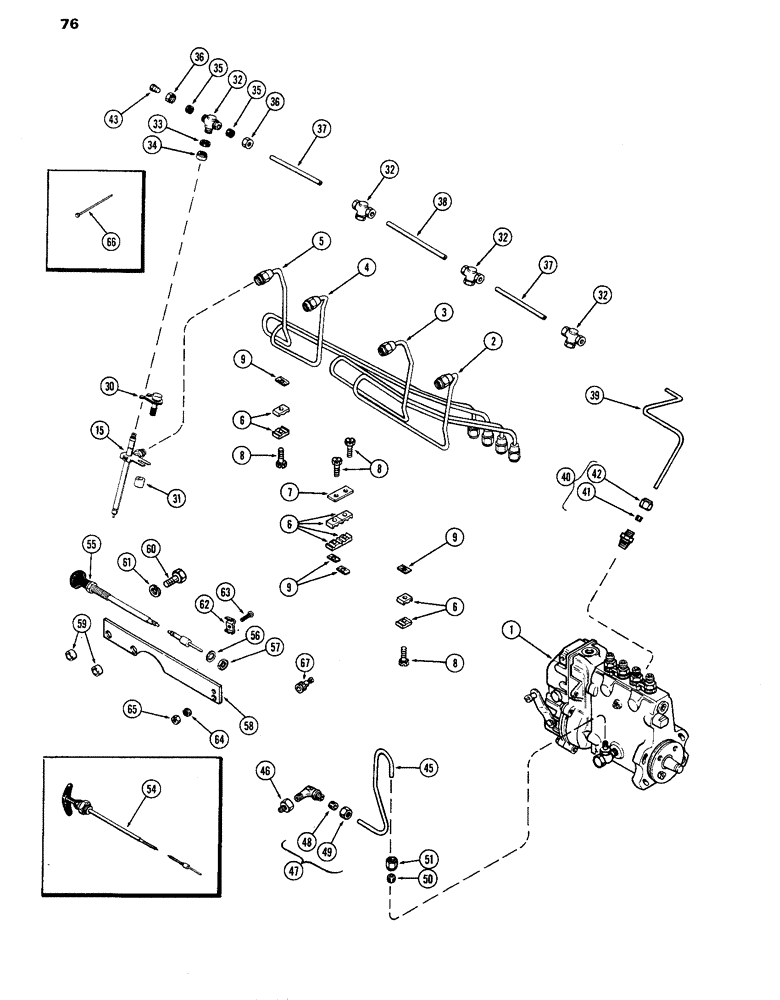

Запчасти Case IH 770 (076) - FUEL INJECTION SYSTEM, 267B DIESEL ENGINE (03) - FUEL SYSTEM

1

A62568

PUMP ASSY. - fuel injection (See Fig. 80)

1шт.

2

A58702

TUBE

ASSY. - fuel injection (#1 cylinder)

1шт.

3

A58703

TUBE

ASSY. - fuel injection (#2 cylinder)

1шт.

4

A58704

TUBE

ASSY. - fuel injection (#3 cylinder)

1шт.

5

A58705

TUBE

ASSY. - fuel injection (#4 cylinder)

1шт.

6

A58709

BRACKET

- injection tube

8шт.

7

A58710

PLATE

- injection tube bracket

1шт.

8

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- machine (#10 x 1" N.C. sltd. hex. hd.) (Replaced 173-102)

4шт.

9

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - (#10 flat, Tinnerman)

4шт.

15

REF

INSTRUCTION

NOZZLE ASSY. - injection (Order from Fig. 77A)

4шт.

30

A58695

CLAMP

ASSY. - nozzle

4шт.

31

A58696

SPACER

- nozzle clamp

4шт.

32

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

CAP ASSY. - nozzle leak-off

4шт.

33

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- cap

4шт.

34

A58961

NUT

- cap

4шт.

35

222-102

SLEEVE,1/4" Tube

8шт.

36

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

8шт.

37

A58965

TUBE

- leak-off (4-5/8" long)

2шт.

38

A58964

TUBE

- leak-off (5-5/8" long)

1шт.

39

A58963

TUBE

HOSE - leak-off (#1, Serial Range: nozzle-adapter)

1шт.

40

A59097

VALVE

- leak-off check (In injection pump), Includes: Ref. 41 and 42

1шт.

41

222-102

SLEEVE,1/4" Tube

2шт.

42

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

2шт.

43

47-47

RIVET,FH, 1/4" x 7/16"

- leak-off tee (1/4 x 7/16" flat hd.)

1шт.

45

A58775

TUBE

- oil, Serial Range: gallery-pump

1шт.

46

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducing, hex. (3/8 x 1/4")

1шт.

47

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

- male (1/4" tube O.D. x 1/4" P.T.), Includes: Ref. 48 and 49

1шт.

48

222-102

SLEEVE,1/4" Tube

1шт.

49

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

1шт.

50

222-102

SLEEVE,1/4" Tube

Oil gallery to pump 1/4" Tube

1шт.

51

87017024

TUBE NUT,1/2"-24

NUT - oil gallery to pump

1шт.

54

A62112

CONTROL

- flexible stop (w/oval knob) (Order A64848)

1шт.

55

A64848

CONTROL

- flexible stop (w/round knob)

1шт.

56

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

57

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

1шт.

58

A62095

BRACKET - cable

1шт.

59

A62096

SPACER

- bracket

2шт.

60

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

61

92-6

LOCK WASHER,3/8"

2шт.

62

B51765

CLIP

- cable

1шт.

63

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- (#8 x 1/2" N.C. rd. hd., slotted)

1шт.

64

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER - lock, #8

1шт.

65

129-16

NUT,#8-32

1шт.

66

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - nylon

2шт.

67

A59101

PIVOT

- stop control

1шт.
