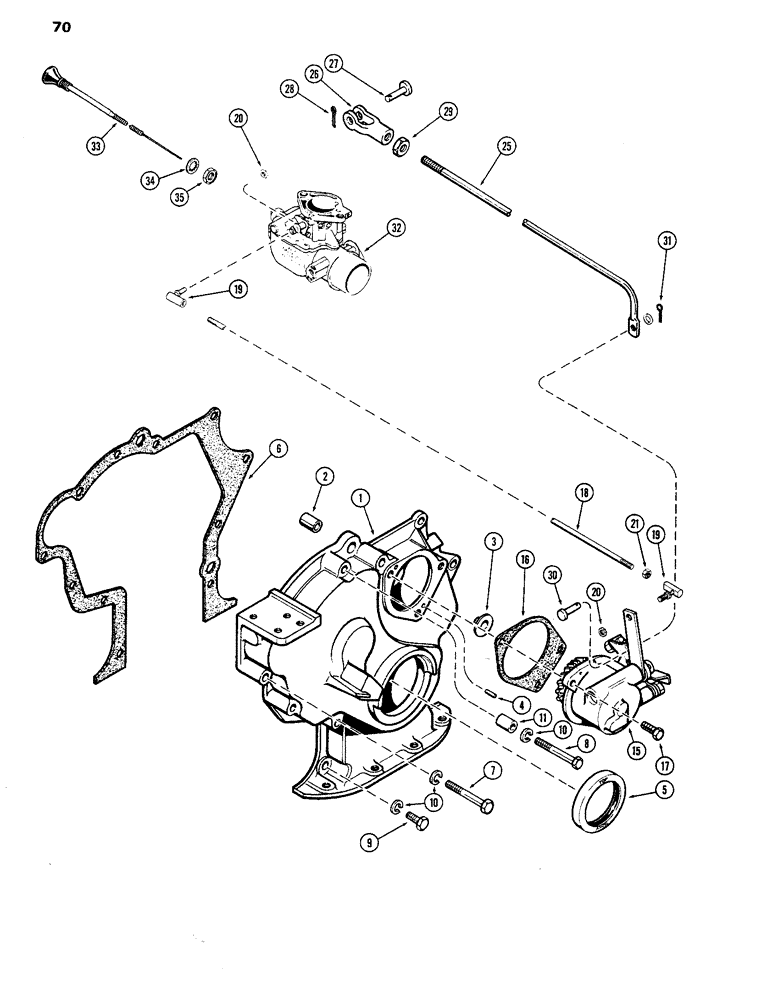

Запчасти Case IH 770 (070) - TIMING GEAR COVER AND GOVERNOR LINKAGE, 251B SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A58815

COVER ASSY. - timing gear, Includes: Ref. 2 - 4

1шт.

2

A58611

PIN

DOWEL - timing gear cover

2шт.

3

A58817

BUSHING - governor shaft

1шт.

4

A58818

PIN - governor mounting

2шт.

5

A62049

OIL SEAL

- front, crankshaft

1шт.

6

A58612

GASKET

-, Serial Range: cover-block

1шт.

7

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- (3/8 x 3-1/2" N.C. hex.)

3шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

9

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- (3/8 x 2-1/2" N.C. hex.)

2шт.

10

92-6

LOCK WASHER,3/8"

11шт.

11

A19774

BUSHING

SPACER - alternator pry point

1шт.

15

A58819

GOVERNOR - (Pierce) (See Fig. 72)

1шт.

16

A58820

GASKET

- governor mounting

1шт.

17

113-217

PREV TORQUE BOLT,Locking, 3/8"-16 x 1", G5, Full Thd

BOLT, (Nylok) Locking, 3/8"-16 x 1", G5, Full Thd

3шт.

18

A61056

ROD -, Serial Range: governor-carburetor

1шт.

19

A62901

BALL

JOINT - ball, governor rod (Replaced A10326)

2шт.

20

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. (Keps)

2шт.

21

129-27

NUT,Hex, #10 - 32

- (#10 N.F. hex.)

1шт.

25

A61233

ROD - throttle control

1шт.

26

213-3

ADJUSTABLE CLEVIS,5/16"-24

ROD END - clevis (5/16")

1шт.

27

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

28

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

29

25-155

JAM NUT,Jam, 5/16"-24, G5

- (5/16" N.F. hex., jam)

1шт.

30

A59553

PIN - clevis

1шт.

31

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

32

A62716

CARBURETOR - (See Fig. 86)

1шт.

33

A38458

CONTROL

- flexible choke

1шт.

34

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

35

86585245

SPECIAL NUT,JAM, 5/8" - 18

- (3/8" N.C. hex.)

1шт.
