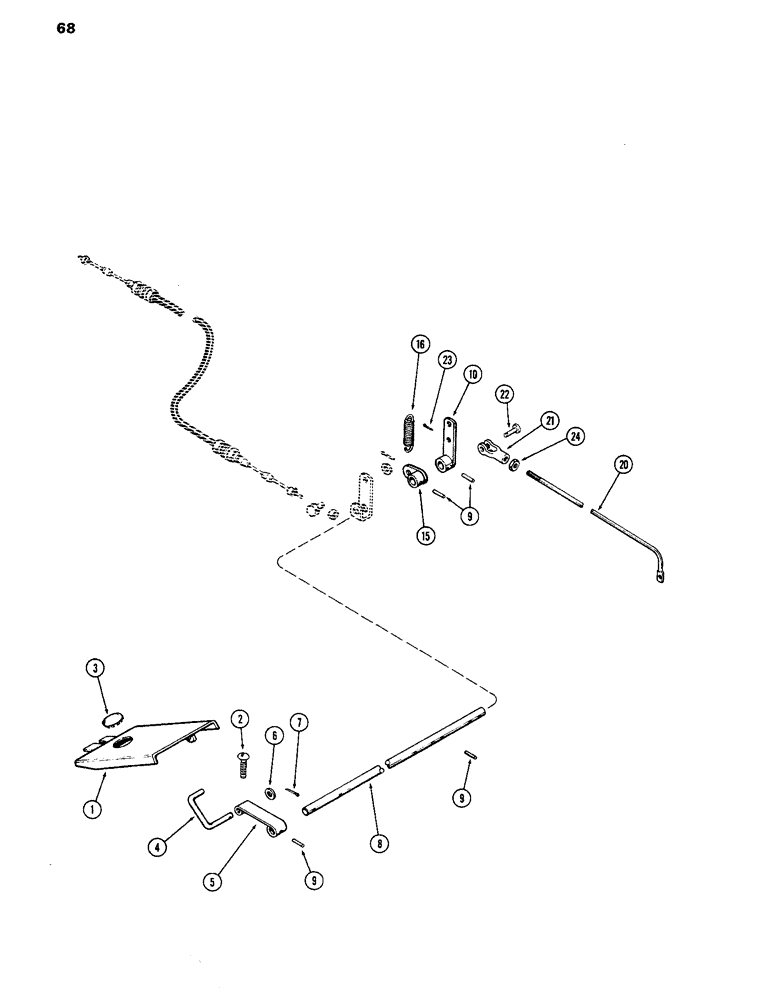

Запчасти Case IH 770 (068) - FOOT THROTTLE CONTROLS, 251B SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A61706

PEDAL

foot throttle

1шт.

2

A60718

BOLT - throttle stop

1шт.

3

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button (1-1/2" dia.)

1шт.

4

A61713

LINK

- foot, Serial Range: pedal-lever

1шт.

5

A61712

LEVER

- foot throttle

1шт.

6

95-5

WASHER,3/8" x 7/8" x .083"

- (3/8 x 7/8 x 5/64")

1шт.

7

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

1шт.

8

A59544

SHAFT - foot throttle

1шт.

9

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

5шт.

10

A61101

LEVER

- throttle cross shaft

1шт.

15

A59549

LEVER - accelerator return spring

1шт.

16

A59551

SPRING

- accelerator return

1шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(Spring anchor) Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

25-144

JAM NUT,Jam, 1/4"-20, G5

- (1/4" N.C. hex., jam) (spring anchor bolt)

2шт.

20

A61233

ROD - throttle control

1шт.

21

213-3

ADJUSTABLE CLEVIS,5/16"-24

ROD END - clevis (5/16")

1шт.

22

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

23

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

24

25-155

JAM NUT,Jam, 5/16"-24, G5

- (5/16" N.F. hex., jam)

1шт.
