Запчасти Case IH 770 (042) - FOOT THROTTLE CONTROLS, 267B DIESEL ENGINE (03) - FUEL SYSTEM

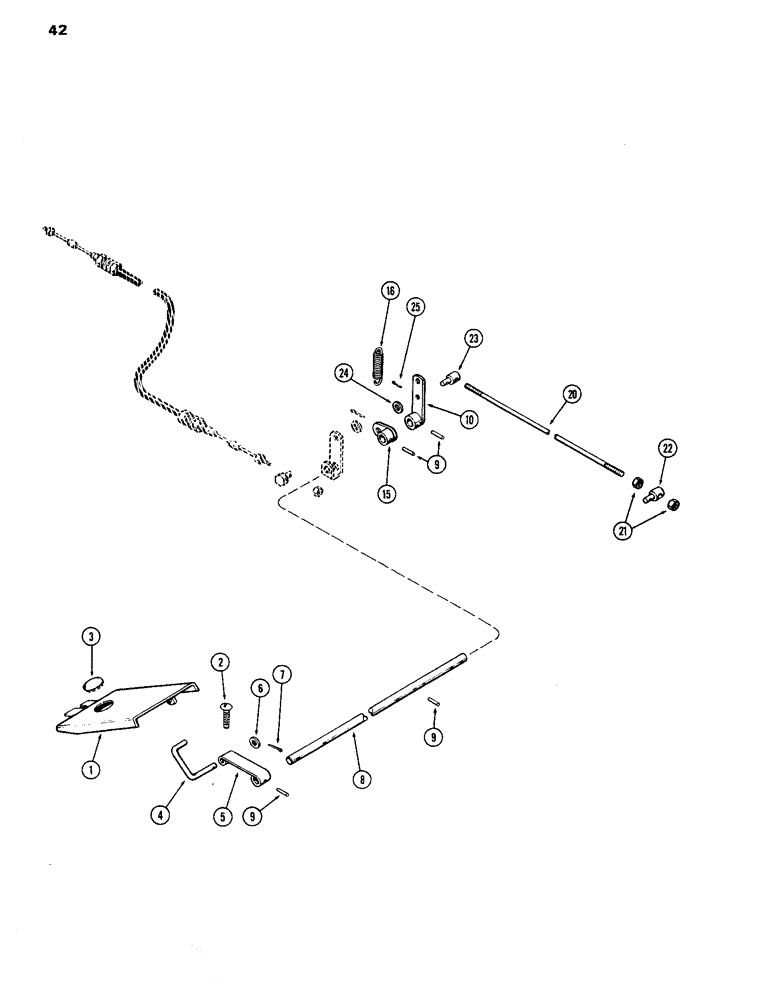

Схема запчастей Case IH 770 - (042) - FOOT THROTTLE CONTROLS, 267B DIESEL ENGINE (03) - FUEL SYSTEM
8
1
21
24
22
25
2
9
10
7
23
15
9
16
20
5
3
9
4
6

Артикул

Название

Примечание

Количество

1

A61706

PEDAL

ASSY. - foot throttle

1шт.

2

A60718

BOLT - throttle stop

1шт.

3

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - botton (1-1/2" dia.)

1шт.

4

A61713

LINK

- foot, Serial Range: pedal-lever

1шт.

5

A61712

LEVER

- foot throttle

1шт.

6

95-5

WASHER,3/8" x 7/8" x .083"

- (3/8 x 7/8 x 5/64")

1шт.

7

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

1шт.

8

A59544

SHAFT - foot throttle

1шт.

9

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

5шт.

10

A61101

LEVER

ASSY. - throttle cross shaft

1шт.

15

A59549

LEVER ASSY. - accelerator return spring

1шт.

16

A59551

SPRING

- accelerator return

1шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(Spring anchor) Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

25-144

JAM NUT,Jam, 1/4"-20, G5

- (1/4" N.C. hex., jam) (Spring anchor bolt)

2шт.

20

A59169

ROD - diesel pump

1шт.

21

25-155

JAM NUT,Jam, 5/16"-24, G5

- (5/16" N.F. hex., jam)

2шт.

22

A59251

PIVOT

- throttle (pump end)

1шт.

23

A62419

PIVOT

- throttle (foot throttle end)

1шт.

24

95-4

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

2шт.

25

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

Выбрано товаров: 20
