Запчасти Case IH 770 (041A) - HAND THROTTLE CONTROLS, 267B DIESEL ENGINE, 1ST USED TRACTOR S/N 8693001 (03) - FUEL SYSTEM

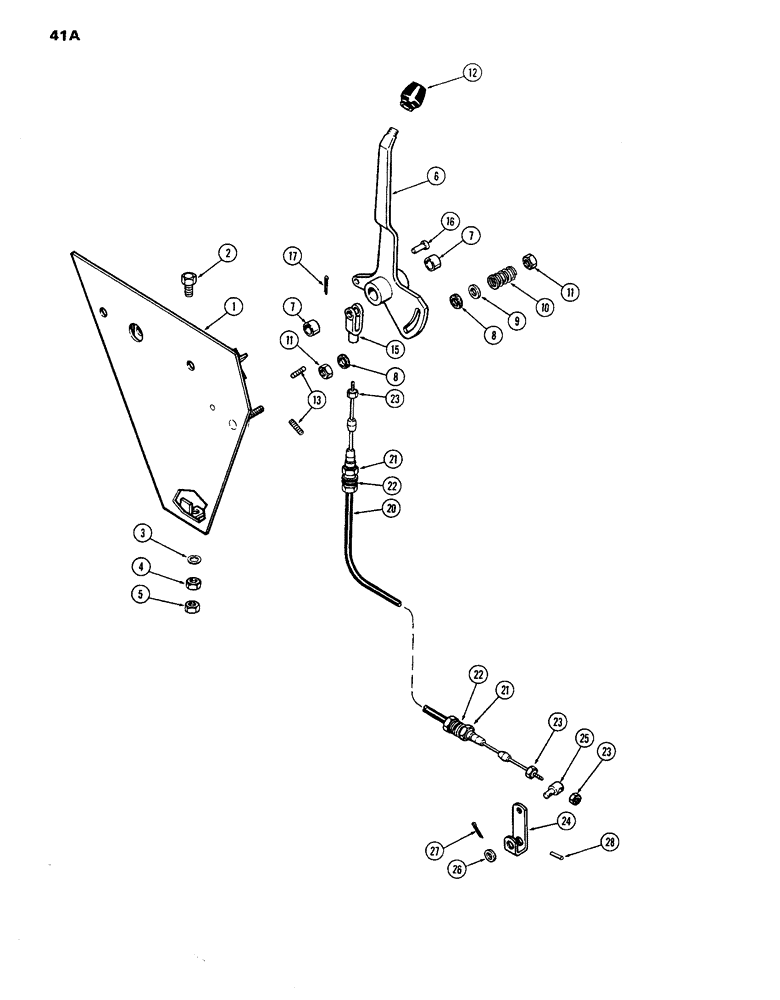

Схема запчастей Case IH 770 - (041A) - HAND THROTTLE CONTROLS, 267B DIESEL ENGINE, 1ST USED TRACTOR S/N 8693001 (03) - FUEL SYSTEM
22
27
6
21
23
22
10
7
12
24
23
16
28
2
1
25
7
15
8
20
11
3
9
8
11
4
26
21
17
23
5
13

Артикул

Название

Примечание

Количество

1

A65027

PLATE

- console front shaft support

1шт.

2

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

3

92-6

LOCK WASHER,3/8"

1шт.

4

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

5

131-1306

JAM NUT,Jam, 3/8"-16

NUT - jam, 3/8" N.C. hex.

1шт.

6

A63010

LEVER

ASSY. - hand throttle, Includes: Ref. 7

1шт.

7

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever (5/8 x 3/4 x 1/2" bronze)

2шт.

8

A61069

DISC

- friction

2шт.

9

195-2172

WASHER,7/16" x 1 1/4" x .083"

- (7/16 x 1-1/4" x 14 ga.) (plated) (Repl. 195-2035)

1шт.

10

A65583

SPRING

- friction disc (Replaced A26546)

1шт.

11

131-1306

JAM NUT,Jam, 3/8"-16

NUT - jam, 3/8" N.C. hex.

4шт.

12

A65699

KNOB

- lever (Replaced A62078 & A65541)

1шт.

13

A59433

SCREW,1/4" - 20 x 1 1/4"

- lever stop (1/4 x 1-1/4" N.C. slotted Nylok) (plated)

2шт.

15

A62015

HOSE

YOKE - control, Serial Range: cable-lever

1шт.

16

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

1шт.

17

132-285

PIN - cotter, 3/32 x 5/8"

1шт.

20

A59434

CABLE

ASSY. - throttle control, Includes: Ref. 21 - 23

1шт.

21

25-157

JAM NUT,Jam, 7/16"-20, G5

- jam, 7/16" N.F. hex.

4шт.

22

193-31

LOCK WASHER,Int Tooth, 7/16"

WASHER - lock, 7/16" int. Shakeproof

4шт.

23

129-27

NUT,Hex, #10 - 32

- jam, hex. #10-32

2шт.

24

A61702

LEVER

- override, throttle control

1шт.

25

A61703

PIVOT

- override lever

1шт.

26

95-5

WASHER,3/8" x 7/8" x .083"

- plain, 3/8 x 7/8 x 5/64"

1шт.

27

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

28

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, , Lever to cross shaft 3/16" x 1 1/2", Slotted

1шт.

Выбрано товаров: 25
