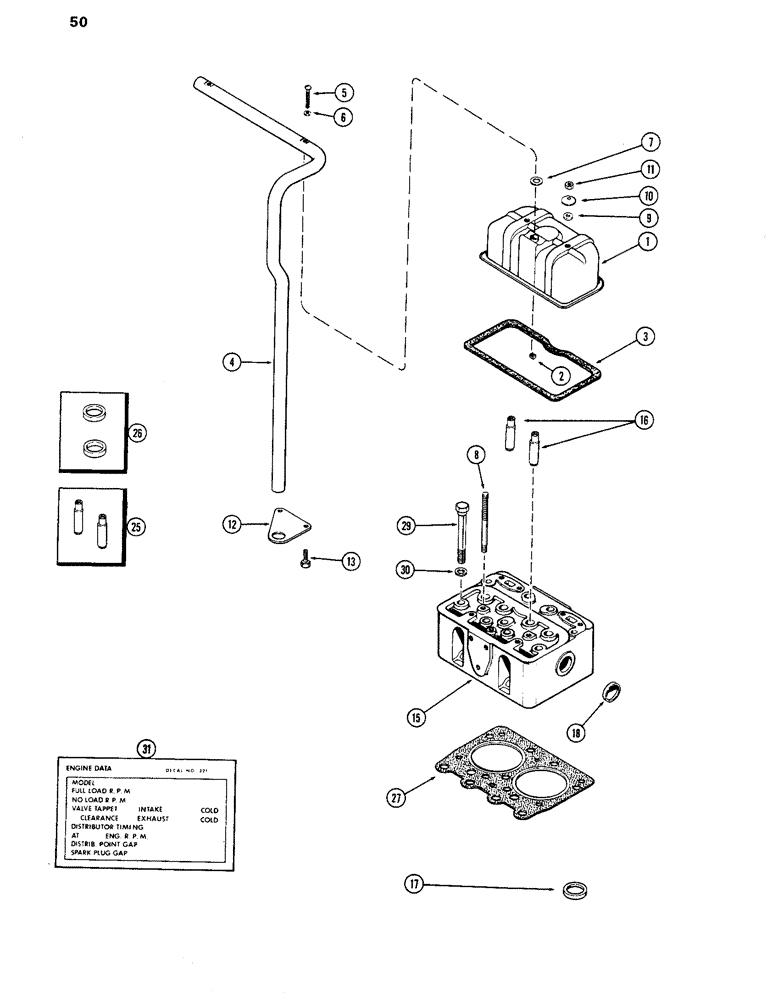

Запчасти Case IH 770 (050) - CYLINDER HEAD AND COVER, 251B SPARK IGNITION ENGINE (02) - ENGINE

1

A58929

COVER

ASSY. - cylinder head, Includes: Ref. 2

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - (1/4" N.C. Tinnerman)

1шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover (Replaced A58928)

2шт.

4

A59055

TUBE - breather

1шт.

5

75-440

SCREW

- machine (1/4 x 2-1/2" N.C. rd. hd.)

2шт.

6

A34133

GASKET

- breather tube srew

2шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

-, Serial Range: tube-cover

2шт.

8

A60885

STUD

- rocker arm support & valve cover

4шт.

9

A23684

GASKET

GASKET - cover stud

4шт.

10

A23683

WASHER

- cover stud, beveled

4шт.

11

25-107

NUT,7/16"-14, G5

- (7/16" N.C. hex.)

4шт.

12

A59054

BRACKET

- breather tube

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - (3/8 x 1-1/2" N.C. sems)

2шт.

15

A58793

HEAD ASSY. - cylinder (Casting No. A58520), Includes: Ref. 16 - 18

2шт.

16

NSS

NOT SOLD SEPARAT

GUIDES - intake & exhaust valves (Order ref. 25)

4шт.

17

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 26)

2шт.

18

A34124

PLUG,Cup, 1 5/8", Stainless

- (1-5/8" cup type)

2шт.

25

A21673

GUIDE

KIT - intake & exhaust valves (Set of 2)

4шт.

26

A33453

KIT

INSERT KIT - exhaust valve (Set of 2)

2шт.

27

A58795

CYLINDER HEAD GASKET

- cylinder head

2шт.

29

A58798

BOLT - (5/8 x 6-38" N.C. hex.)

18шт.

30

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

18шт.

31

321-1364

DECAL

- engine data

1шт.
