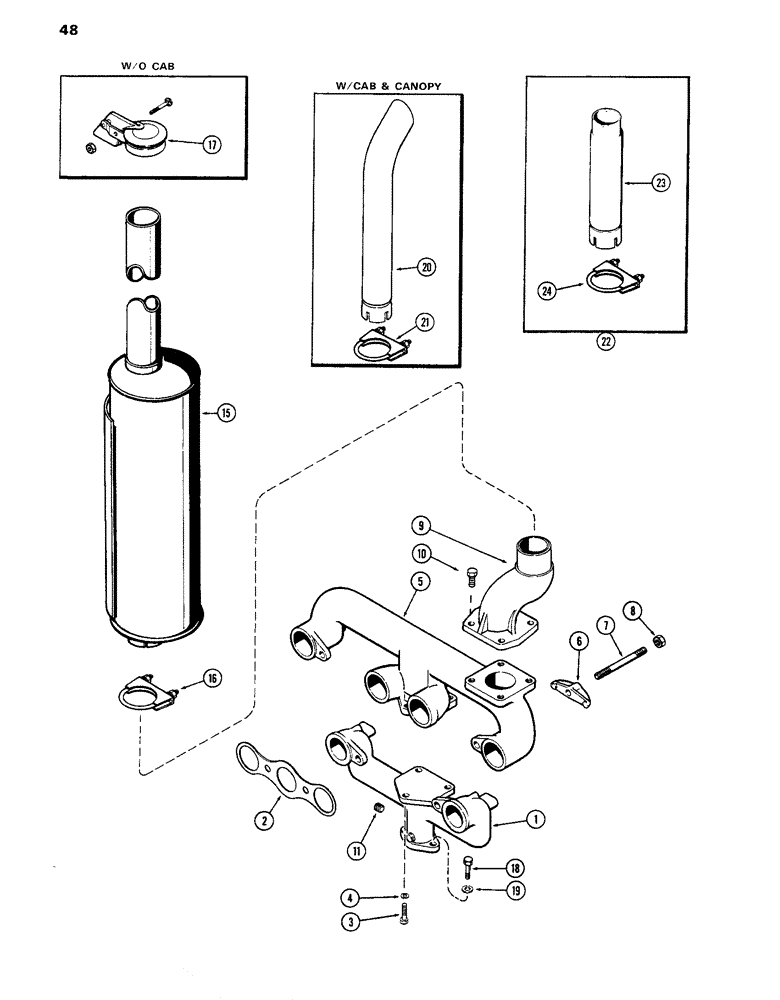

Запчасти Case IH 770 (048) - MANIFOLD AND MUFFLER, 251B SPARK IGNITION ENGINE (02) - ENGINE

1

A58803

MANIFOLD

NANIFOLD - intake (Order A61008 & 221-1843)

1шт.

1

A61008

MANIFOLD - intake (Also Order Ref. 11)

1шт.

2

A58804

GASKET

- intake & exhaust manifolds

2шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

A58805

MANIFOLD - exhaust

1шт.

6

A24368

CLAMP

- intake & exhaust manifolds

4шт.

7

A61051

STUD - intake & exhaust manifolds (7/16" N.F. x 6")

4шт.

8

25-117

NUT,7/16"-20, G5

- (7/16" N.F. hex.)

4шт.

9

A61168

STACK - exhaust manifold

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

11

221-1843

PLUG

- intake manifold, 3/8" P.T. hex. socket

1шт.

15

A59764

MUFFLER

- (Black)

1шт.

16

A27115

CLAMP

- muffler

1шт.

17

D28028

CAP

- rain, muffler (used w/o cab)

1шт.

18

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

A62470

EXTENSION

- exhaust pipe (curved) (used w/cab & canopy) (black)

1шт.

21

A62874

CLAMP

- exhaust pipe extension

1шт.

22

A62718

KIT

EXHAUST EXTENSION KIT - (for tractors w/o cab & also an added extension for tractors w/cab or canopy), Includes: Ref. 23 and 24

1шт.

23

A61109

EXTENSION

- exhaust pipe

1шт.

24

A62874

CLAMP

- extension

1шт.
