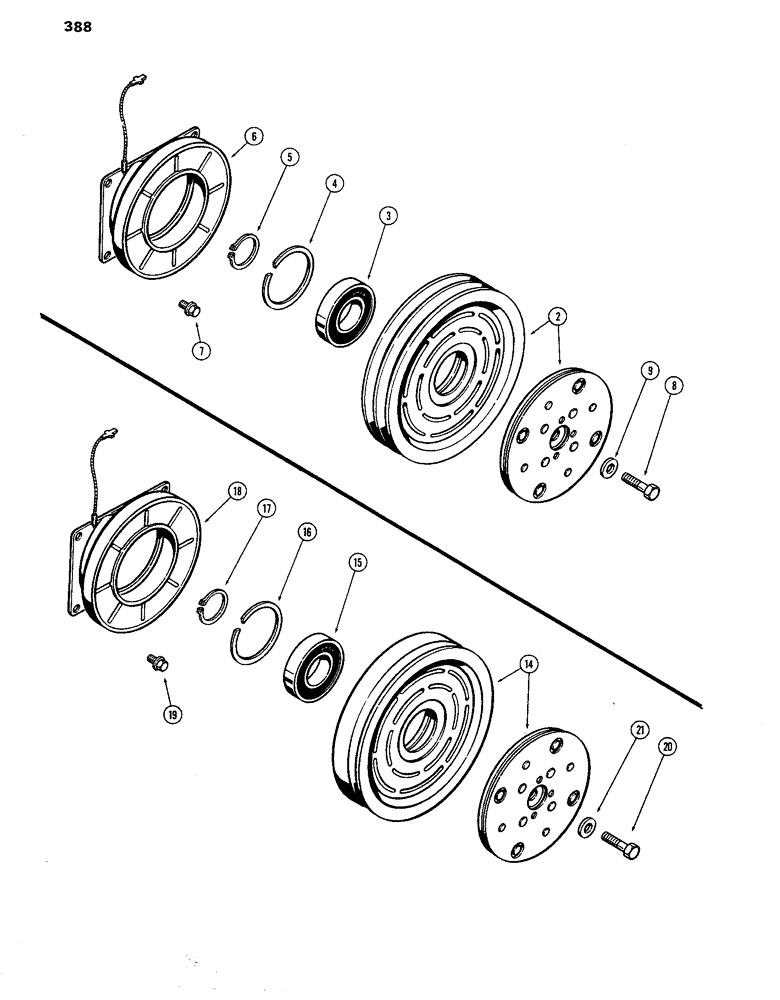

Запчасти Case IH 770 (388) - CAB, COMPRESSOR CLUTCH, FOR 1/2" BELT AND 11 MM BELT (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A64956
CLUTCH
ASSY. - (Warner Electric #I-1405-17), Includes: Ref. 2 - 9
1шт.
2
NSS
NOT SOLD SEPARAT
PULLEY ASSY. - rotor
1шт.
3
NSS
NOT SOLD SEPARAT
BEARING - pulley rotor
1шт.
4
NSS
NOT SOLD SEPARAT
RING - snap, brg. retaining, outer
1шт.
5
NSS
NOT SOLD SEPARAT
RING - snap, brg. retaining, inner
1шт.
6
A42941
COIL
FIELD ASSY. - pulley
1шт.
7
113-6
BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd
4шт.
8
114-100
BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5
- 5/16 x 1-1/4" N.F. hex.
1шт.
9
A27343
BUSHING
SPACER - clutch attaching bolt
1шт.
A61149
CLUTCH
ASSY. - (Warner Electric #I-1405-14), for 11 m.m. belt, Includes: Ref. 14 - 21
1шт.
14
NSS
NOT SOLD SEPARAT
PULLEY ASSY. - rotor, for 11 m.m. belt
1шт.
15
NSS
NOT SOLD SEPARAT
BEARING - pulley rotor, for 11 m.m. belt
1шт.
16
NSS
NOT SOLD SEPARAT
RING - snap, brg. retaining, outer, for 11 m.m. belt
1шт.
17
NSS
NOT SOLD SEPARAT
RING - snap, brg. retaining, inner, for 11 m.m. belt
1шт.
18
A42941
COIL
FIELD ASSY. - pulley, for 11 m.m. belt
1шт.
19
113-6
BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd
for 11 m.m. belt Hex, 1/4"-20 x 3/8", G5, Full Thd
4шт.
20
114-100
BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5
- 5/16 x 1-1/4" N.F. hex., for 11 m.m. belt
1шт.
21
A27343
BUSHING
SPACER - clutch attaching bolt, for 11 m.m. belt
1шт.
Выбрано товаров: 18
