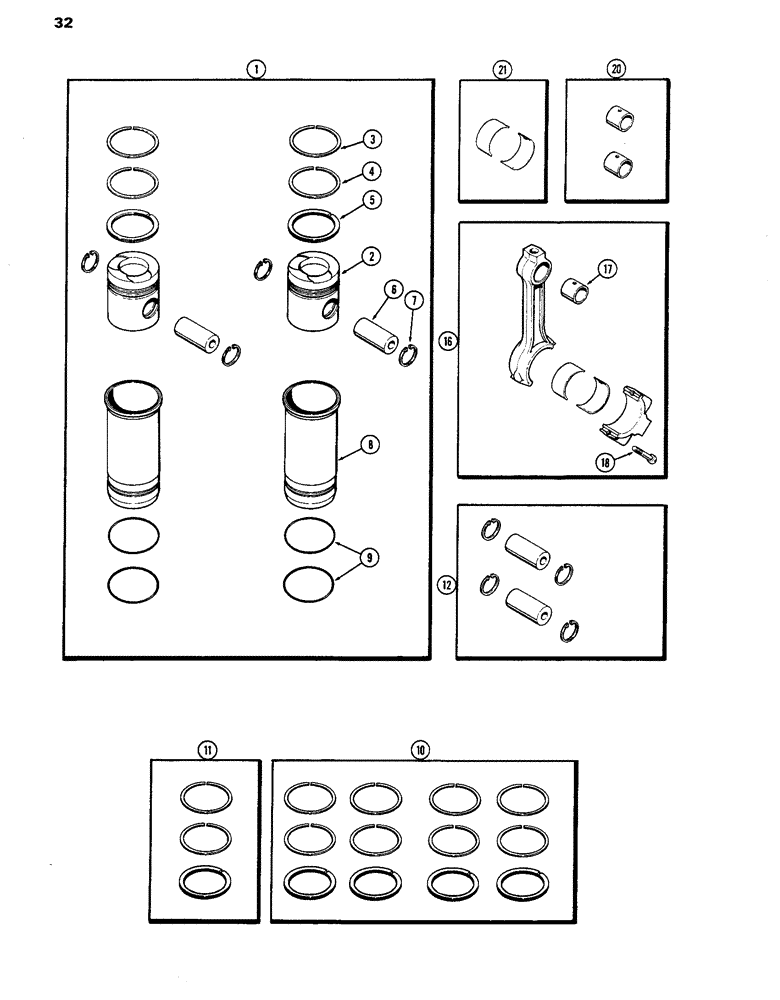

Запчасти Case IH 770 (032) - PISTON ASSEMBLY AND CONNECTING RODS, 267B DIESEL ENGINE (02) - ENGINE

1

A43116

SLEEVE

PISTON & SLEEVE KIT - (Set of 2) (Repl. A43106 & A41964), Includes: Ref. 2 - 9

2шт.

2

A65127

PISTON

- cyl. (4-1/8" bore) (Replaced A64874 & A61937)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (bottom groove) (Order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

T28550

SNAP RING,1.50", Int, #150

RING - snap, , piston pin 1.50", Int, #150

4шт.

8

A58883

SLEEVE

- piston (cylinder liner)

2шт.

9,

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - sleeve packing

4шт.

10

A41968

RING

KIT - re-ring (set of 4), Includes: Ref. 11

1шт.

11

A41967

RING, PISTON

RING KIT - re-ring (Set of 1)

4шт.

12

A24517

PIN

KIT - w/retaining rings (Set of 2)

2шт.

16

A58862

ROD

ASSY. - connecting, Includes: Ref. 17 and 18, Serial Range: -2331248

4шт.

16

A62952

ROD

ASSY. - connecting, Includes: Ref. 17 and 18, Start Serial: 2331248

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod cap (Replaced A62184)

2шт.

20

A21722

BUSHING

KIT - piston pin (Set of 2)

2шт.

21

A20393

LINING

INSERT ASSY. - connecting rod bearing (Standard)

4шт.

21

A20569

JOURNAL

INSERT ASSY. - connecting rod bearing (-.002")

4шт.

21

A20571

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.010")

4шт.

21

A20573

KIT

INSERT ASSY. - connecting rod bearing (-.020")

4шт.

21

A20576

LINING

INSERT ASSY. - connecting rod bearing (-.030")

4шт.
