Запчасти Case IH 770 (384) - CAB, TECUMSEH COMPRESSOR (09) - CHASSIS/ATTACHMENTS

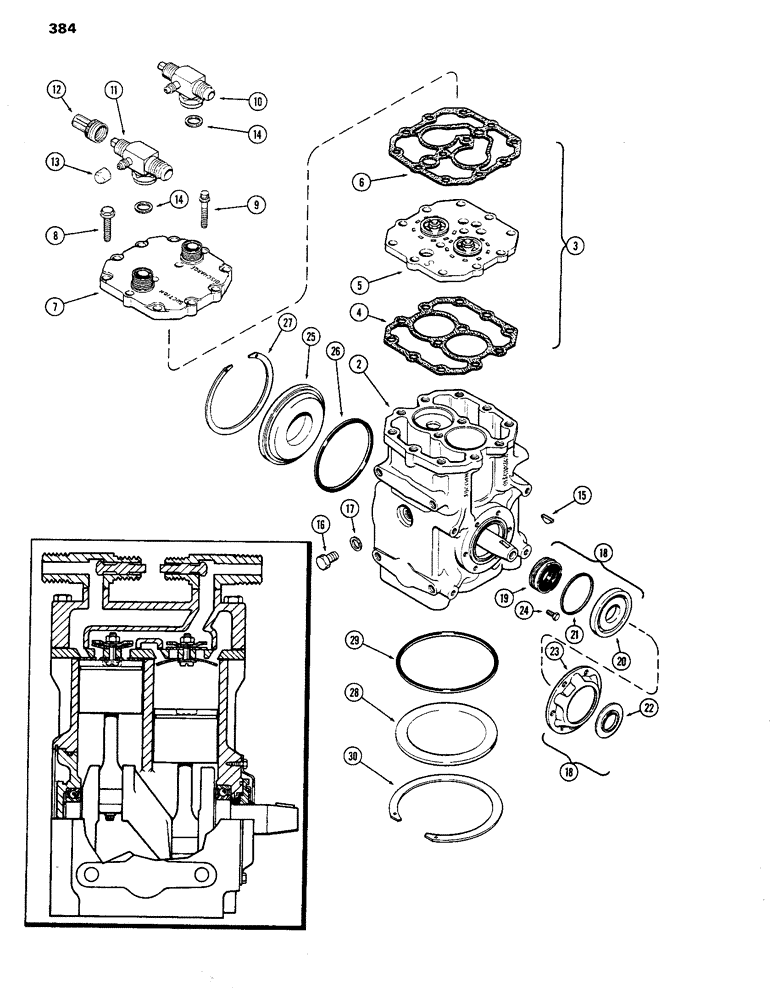

Схема запчастей Case IH 770 - (384) - CAB, TECUMSEH COMPRESSOR (09) - CHASSIS/ATTACHMENTS
4
23
28
26
14
2
9
22
14
19
21
29
17
27
10
18
7
8
25
13
24
3
11
12
15
16
30
6
18
20
5

Артикул

Название

Примечание

Количество

A42953

SPARE PART COMPRESSOR ASSY. - (Tecumseh #HG1000) (Order A64810), Includes: Ref. 2 - 30

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured Compressor

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKCASE ASSY.

1шт.

3

A42935

PLATE

KIT - valve plate, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - plate to crankcase (Order A42943)

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - cyl. hd. to valve plate (Order A42943)

1шт.

7

NSS

NOT SOLD SEPARAT

CYLINDER HEAD

1шт.

8

114-125

BOLT - 5/16 x 1-3/8" N.F. hex. washer hd.

8шт.

9

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

SPARE PART SCREW - 5/16 x 1-3/8" N.C. Ferry hd., 12 pt. cap

4шт.

10

A42936

VALVE

VALVE ASSY. - roto lock, discharge, 1/2" port

1шт.

11

A42937

VALVE

VALVE ASSY. - roto lock, suction, 5/8" port, Includes: Ref. 12 and 13

1шт.

12

A42944

CAP

CAP - sleeve, valve stem

1шт.

13

221-981

CAP - valve stem

1шт.

14

A42938

GASKET

GASKET - roto lock to cyl. hd.

2шт.

15

A42939

KEY

KEY - crankshaft, No. 6 non-rok

1шт.

16

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

PLUG - crankcase, filler & level

2шт.

17

NSS

NOT SOLD SEPARAT

GASKET - filler & level plug (Order A42943)

2шт.

18

A42934

SEAL

KIT - seal, front crankshaft, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - crankshaft

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER - seal, outer

1шт.

21

NSS

NOT SOLD SEPARAT

"O" RING - (Order A42943)

1шт.

22

NSS

NOT SOLD SEPARAT

RETAINER - seal, inner

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - crankshaft seal

1шт.

24

NSS

NOT SOLD SEPARAT

BOLT - seal, Serial Range: plate-crankshaft

6шт.

25

NSS

NOT SOLD SEPARAT

HOUSING - rear bearing

1шт.

26

NSS

NOT SOLD SEPARAT

"O" RING - rear brg. hsg. (Order A42943)

1шт.

27

NSS

NOT SOLD SEPARAT

RING - snap, rear brg. hsg. retaining

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - bottom

1шт.

29

NSS

NOT SOLD SEPARAT

"O" RING - bottom plate (Order A42943)

1шт.

30

NSS

NOT SOLD SEPARAT

RING - snap, bottom plate retaining

1шт.

A42943

SPARE PART KIT - gasket, complete overhaul (Incl. Items 4, 6, 17, 21, 26 & 29)

1шт.

Выбрано товаров: 33
