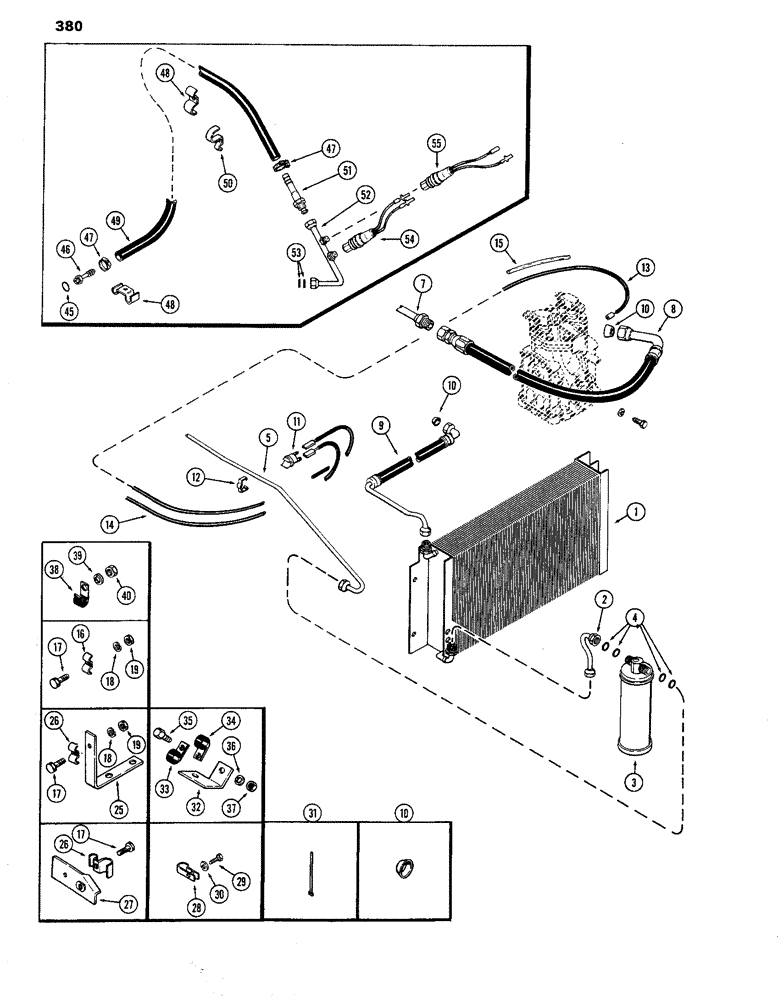

Запчасти Case IH 770 (380) - CAB, AIR CONDITIONER (09) - CHASSIS/ATTACHMENTS

1

A61687

COIL

- condenser

1шт.

2

A61690

TUBE

-, Serial Range: condenser-receiver

1шт.

3

A61688

TANK

RECEIVER - dryer

1шт.

4

A61198

O-RING,0.07" Thk x 0.301" ID, -11

"O" RING - 5/16 x 7/16 x 1/16"

4шт.

5

A61692

TUBE

- receiver, Serial Range: dryer-cab

1шт.

7

A62226

TUBE

- cab to compressor hose

1шт.

8

A61207

HOSE

-, Serial Range: tube-compressor

1шт.

9

A61208

HOSE ASSY.

HOSE -, Serial Range: compressor-condenser

1шт.

10

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

10

222-994

GASKET,1/2 Tube, Fl, Copper

- flare, copper (for 1/2" tube)

1шт.

10

222-995

SEALING WASHER,15.88mm ID

- flare, copper (for 5/8" tube)

1шт.

11

A61291

THERMOSTAT

- high temperature

1шт.

12

A61789

CLAMP

- thermostat

1шт.

13

A61755

ELECTRICAL WIRE

WIRE - thermostat to compressor clutch

1шт.

14

A42931

ELECTRICAL WIRE

WIRE - thermostat to cab upper harness

1шт.

15

A62053

HARNESS

LOOM - wire

1шт.

16

A61199

CLIP

- tube

1шт.

17

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

25-104

NUT,1/4"-20, G5

2шт.

25

A61200

BRACKET - air cond. tube mtg.

1шт.

26

A61704

CLAMP - tubes

2шт.

27

A64397

BRACKET

- air cond. tube mtg. (Replaces A62254)

1шт.

28

A7922

CLIP

- clutch lead wire

1шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

30

92-6

LOCK WASHER,3/8"

1шт.

31

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wires to tubes & water trap, R.H.

4шт.

32

A62206

BRACKET - air cond. tube mtg.

1шт.

33

NLS

NO LONGER SERVICED

CLIP - tube, 5/8"

1шт.

34

49845

CLAMP

CLIP - tube, 3/8"

2шт.

35

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

36

92-6

LOCK WASHER,3/8"

1шт.

37

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

38

A59718

CLAMP

CLIP - water trap tube, L.H.

1шт.

39

92-6

LOCK WASHER,3/8"

(attach to step bolt) 3/8"

1шт.

40

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (attach to step bolt)

1шт.

A65772

SWITCH

KIT - air conditioner safety switch, Includes: Ref. 45 - 55

1шт.

45

A61195

O-RING,0.364" ID x 0.5" OD

"O" RING - adapter to quick coupler, air conditioner safety switch kit

1шт.

46

A65796

ADAPTER - quick disconnect coupling to hose, air conditioner safety switch kit

1шт.

47

A65795

COLLAR CLAMP

CLAMP - hose (5/16" I.D. worm), air conditioner safety switch kit

2шт.

48

A65773

CLIP - hose & tube support (3/4" & 5/8" dia.), air conditioner safety switch kit

2шт.

49

A65802

HOSE

- rubber (5/16" I.D.) (88" long), air conditioner safety switch kit

1шт.

50

A65786

CLIP

- hose & tube support (3/4" & 3/8" dia.), air conditioner safety switch kit

1шт.

51

A65793

FITTING - 45 deg. flare hose, air conditioner safety switch kit

1шт.

52

A65792

TUBE

- receiver dryer to hose, air conditioner safety switch kit

1шт.

53

A61198

O-RING,0.07" Thk x 0.301" ID, -11

"O" RING - receiver dryer to tube, air conditioner safety switch kit

2шт.

54

A65785

SWITCH

- low pressure cut out, air conditioner safety kit

1шт.

55

A65779

SWITCH

- high pressure cut out, air conditioner safety kit

1шт.
