Запчасти Case IH 770 (376) - CAB, COMPRESSOR CLUTCH DRIVE, USED PRIOR TO TRACTOR S/N 8693001, FOR 11 MM PULLEY AND BELT (09) - CHASSIS/ATTACHMENTS

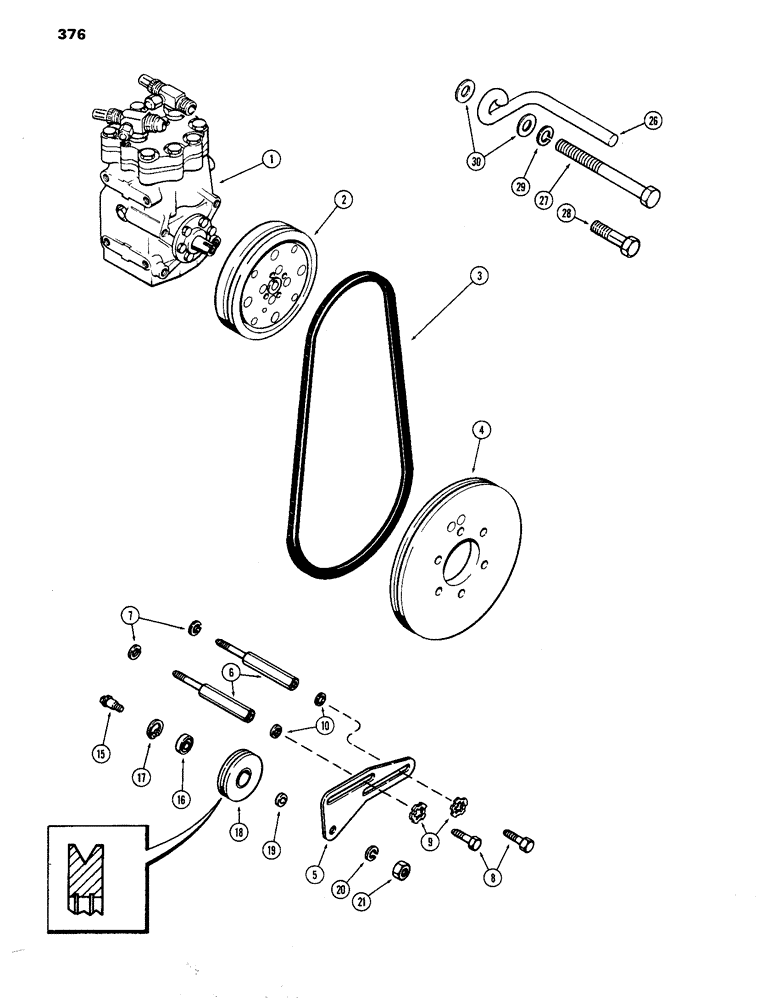

Схема запчастей Case IH 770 - (376) - CAB, COMPRESSOR CLUTCH DRIVE, USED PRIOR TO TRACTOR S/N 8693001, FOR 11 MM PULLEY AND BELT (09) - CHASSIS/ATTACHMENTS
4
30
17
9
20
16
10
7
29
26
2
1
27
28
21
19
8
3
6
18
5
15

Артикул

Название

Примечание

Количество

1

A64810

AIRCOND. COMPRESSOR

COMPRESSOR ASSY. - (York) (See Fig. 382) (Replaces A61148)

1шт.

1

417888C93

AIRCOND. COMPRESSOR

Assy., A/C

1шт.

1

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C93

1шт.

1

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

1

A42953

COMPRESSOR ASSY. - (Tecumseh) (See Fig. 384) (Order A64810)

1шт.

1

A42954

COMPRESSOR ASSY. - (York) (See Fig. 386) (Order A64810)

1шт.

2

A61149

CLUTCH

ASSY. - compressor (11 M.M.) (See Fig. 388)

1шт.

3

A65692

BELT,72.83" L

Compressor Drive, Replaces A61158 72.83" L

1шт.

4

A61156

compressor drive (11 m.m.)

1шт.

5

A62969

LARGE PLATE

idler adjusting

1шт.

6

A62970

POST

idler plate mounting

2шт.

To install remove two 13-640 bolts from front timing gear cover.

1шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

9

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

shakeproof (3/8" int./ext.)

2шт.

10

195-25

WASHER,3/8"

13/32 x 13/16 x 1/16"

1шт.

15

A62967

PIN

idler pulley

1шт.

16

A62965

BALL BEARING,0.3937" ID x 1.0236" OD x 0.315"

idler pulley

1шт.

17

A62966

SNAP RING,1.02", Int, #102

RING - snap, , pulley brg 1.02", Int, #102

1шт.

18

A64203

PULLEY

idler (11 m.m.)

1шт.

19

A62968

SPACER

idler pulley

1шт.

20

192-110

LOCK WASHER,5/16"

lock () 5/16"

1шт.

21

25-145

JAM NUT,Jam, 5/16"-18, G5

5/16" N.C. hex., jam

1шт.

A65719

KIT

air conditioner drive belt rub bar, Includes: Ref. 26 - 30

1шт.

26

A65718

GUARD

air conditioner belt rub bar kit

1шт.

27

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

(Diesel Only), Air conditioner belt rub bar kit Hex, 3/8"-16 x 4", G5

1шт.

28

113-2201

BOLT,Locking, 3/8" - 16 x 1-1/2", Gr 5

(3/8 x 1-1/2" N.C. hex., Nylok) (Gas Only), air conditioner belt rub bar kit

1шт.

29

92-6

LOCK WASHER,3/8"

air conditioner belt rub bar kit 3/8"

1шт.

30

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64"), air conditioner belt rub bar kit

2шт.

Выбрано товаров: 29
