Запчасти Case IH 770 (374) - CAB, COMPRESSOR CLUTCH DRIVE, 1ST USED TRACTOR S/N 8693001, FOR 1/2" PULLEY AND BELT (09) - CHASSIS/ATTACHMENTS

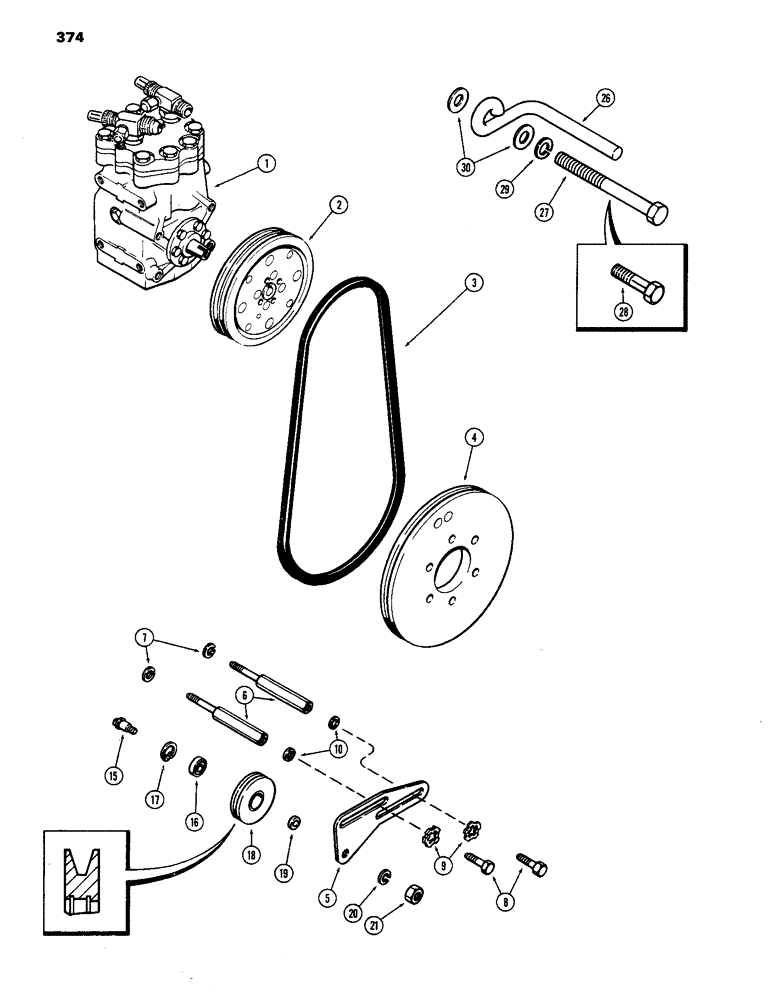

Схема запчастей Case IH 770 - (374) - CAB, COMPRESSOR CLUTCH DRIVE, 1ST USED TRACTOR S/N 8693001, FOR 1/2" PULLEY AND BELT (09) - CHASSIS/ATTACHMENTS
7
26
28
17
19
18
5
3
4
9
20
15
16
29
21
27
6
2
8
10
30
1

Артикул

Название

Примечание

Количество

1

A64810

AIRCOND. COMPRESSOR

COMPRESSOR ASSY. - (York) (See Fig. 382) (Replaces A61148)

1шт.

1

417888C93

AIRCOND. COMPRESSOR

Assy., A/C

1шт.

1

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C93

1шт.

1

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

1

A42953

COMPRESSOR ASSY. - (Tecumseh) (See Fig. 384) (Order A64810)

1шт.

1

A42954

COMPRESSOR ASSY. - (York) (See Fig. 386) (Order A64810)

1шт.

2

A64956

CLUTCH

ASSY. - compressor (1/2") (See Fig. 388)

1шт.

3

A62962

V-BELT,0.50" W x 72.80" L

V-BELT, , Compressor Drive, Order A65717 0.50" W x 72.80" L

1шт.

3

A65716

V-BELT,0.50" W x 72.80" L

Compressor Drive, Replaced A62962, Order A65717 0.50" W x 72.80" L, Start Serial: 8705614

1шт.

3

A65717

V-BELT,0.50" W x 72.80" L

Compressor Drive, Replaces A62962 0.50" W x 72.80" L, Start Serial: 8705614

1шт.

4

A62960

PULLEY - compressor drive (1/2")

1шт.

5

A62969

LARGE PLATE

PLATE - idler adjusting

1шт.

6

A62970

POST

- idler plate mounting

2шт.

To install remove two 13-640 bolts from front timing gear cover.

1шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

9

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - shakeproof, 3/8" int./ext.

2шт.

10

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

1шт.

15

A62967

PIN

- idler pulley

1шт.

16

A62965

BALL BEARING,0.3937" ID x 1.0236" OD x 0.315"

BEARING - idler pulley

1шт.

17

A62966

SNAP RING,1.02", Int, #102

RING - snap, , pulley brg 1.02", Int, #102

1шт.

18

A62964

PROTECTOR

PULLEY - idler (1/2")

1шт.

19

A62968

SPACER

- idler pulley

1шт.

20

192-110

LOCK WASHER,5/16"

WASHER - lock, 5/16"

1шт.

21

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex., jam

1шт.

A65719

KIT

- air conditioner drive belt rub bar, Includes: Ref. 26 - 30

1шт.

26

A65718

GUARD

BAR - rub, air conditioner belt kit

1шт.

27

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

(Diesel Only), Air conditioner belt rub bar kit Hex, 3/8"-16 x 4", G5

1шт.

28

113-2201

BOLT,Locking, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex., Nylok) (Gas Only), air conditioner belt rub bar kit

1шт.

29

92-6

LOCK WASHER,3/8"

air conditioner belt rub bar kit 3/8"

1шт.

30

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64"), air conditioner belt rub bar kit

2шт.

Выбрано товаров: 31
