Запчасти Case IH 770 (373A) - CAB, COMPRESSOR MOUNTING KIT, USED ON UNITS WITH 11 MM BELT (09) - CHASSIS/ATTACHMENTS

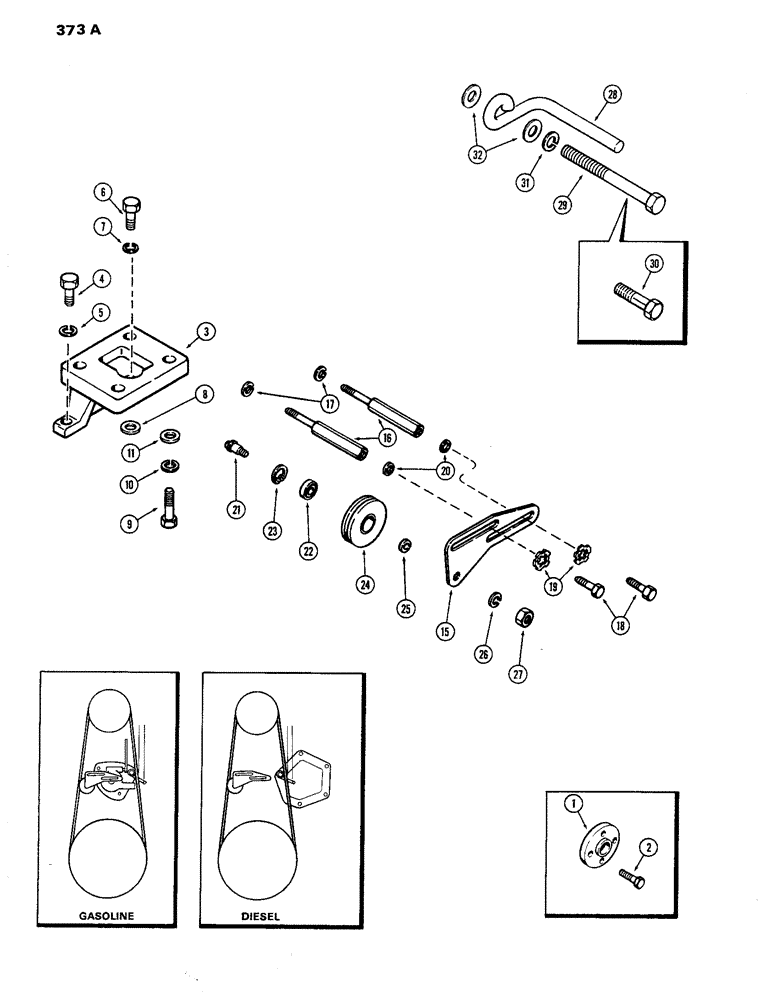

Схема запчастей Case IH 770 - (373A) - CAB, COMPRESSOR MOUNTING KIT, USED ON UNITS WITH 11 MM BELT (09) - CHASSIS/ATTACHMENTS
10
19
4
27
28
24
1
31
16
23
30
6
29
21
15
11
2
18
22
8
7
17
25
26
9
5
32
20
3

Артикул

Название

Примечание

Количество

A64202

KIT

- air cond. compressor mtg. (Used to Convert To One Piece Mtg. Brkt. On Units w/11 mm belts), Includes: Ref. 1 - 32

1шт.

1

A62465

BUSHING

SPACER - fan, 1-1/4"

1шт.

2

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

4шт.

3

A64147

BRACKET

- compressor mounting

1шт.

4

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

1шт.

7

92-7

LOCK WASHER,7/16"

1шт.

8

195-2067

WASHER,33/64" x 7/8" x .065"

- 7/8 x 33/64 x 16 ga.

3шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

95-6

WASHER,3/8"

- 1/2 x 1 x 5/64"

4шт.

15

A62969

LARGE PLATE

PLATE - idler adjusting

1шт.

16

A62970

POST

- idler plate mounting

2шт.

To install remove two 13-640 bolts from front timing gear cover.

1шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

19

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext.

2шт.

20

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

8шт.

21

A62967

PIN

- idler pulley

1шт.

22

A62965

BALL BEARING,0.3937" ID x 1.0236" OD x 0.315"

BEARING - idler pulley

1шт.

23

A62966

SNAP RING,1.02", Int, #102

RING - snap, , pulley brg 1.02", Int, #102

1шт.

24

A64203

PULLEY

- idler (11 M.M.)

1шт.

25

A62968

SPACER

- idler pulley

1шт.

26

192-110

LOCK WASHER,5/16"

WASHER - lock, 5/16"

1шт.

27

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex., jam

1шт.

28

A65718

GUARD

BAR - rub

1шт.

29

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

(Diesel Only) Hex, 3/8"-16 x 4", G5

1шт.

30

113-2201

BOLT,Locking, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex., Nylok) (Gas Only)

1шт.

31

92-6

LOCK WASHER,3/8"

1шт.

32

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64")

2шт.

Выбрано товаров: 31
