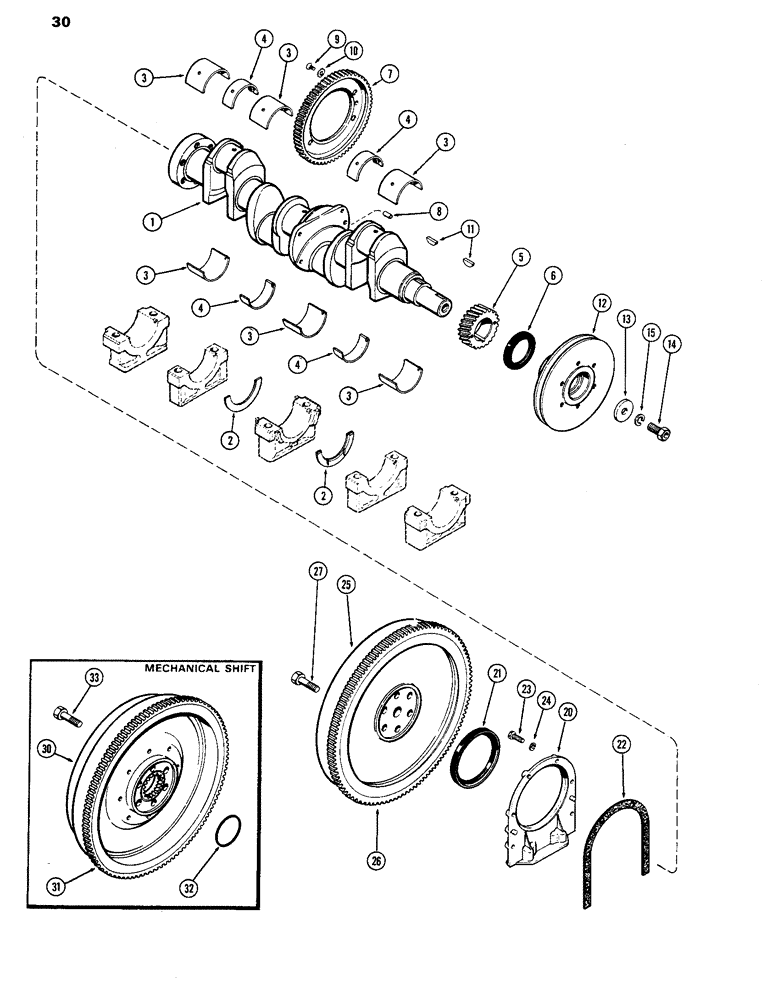

Запчасти Case IH 770 (030) - CRANKSHAFT AND FLYWHEEL, 267B DIESEL ENGINE (02) - ENGINE

1

A58889

CRANKSHAFT

- engine

1шт.

2

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, crankshaft (standard) (Replaced A58786)

2шт.

2

A43932

WASHER - thrust, crankshaft (.006" oversize) (aluminum)

2шт.

3

A42490

BEARING LINER

LINER KIT - main bearing, wide (Standard) (Replaced A41987)

3шт.

3

A42191

LINING

LINER KIT - main bearing, wide (-.002")

3шт.

3

A42192

BEARING LINER

LINER KIT - main bearing, wide (-.010")

3шт.

3

A42193

LINER

KIT - main bearing, wide (-.020")

3шт.

3

A42194

LINING

LINER KIT - main bearing, wide (-.030")

3шт.

4

A42492

KIT

LINER KIT - main bearing, narrow (Std.) (Replaced A20394)

2шт.

4

A20579

LINING

LINER KIT - main bearing, narrow (-.002")

2шт.

4

A20582

LINING

LINER KIT - main bearing, narrow (-.010")

2шт.

4

A20585

KIT

LINER KIT - main bearing, narrow (-.020")

2шт.

4

A20588

KIT

LINER KIT - main bearing, narrow (-.030")

2шт.

5

A58573

GEAR

- crankshaft

1шт.

6

A62049

OIL SEAL

- crankshaft, front (2-5/8 x 3-5/8 x 29/64")

1шт.

7

A62450

GEAR

- balancer drive (86 teeth)

1шт.

8

A8134

PIN

- dowel, balancer drive gear

1шт.

9

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - balancer drive gear

4шт.

10

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, Ext Csk Tooth, 3/8"

4шт.

11

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

2шт.

12

A58746

PULLEY - fan drive

1шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

- crankshaft rear oil seal

1шт.

21

A62050

OIL SEAL

- oil, crankshaft, rear (4-11/16 x 5-3/4 x 1/2")

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

A59034

FLYWHEEL ASSY. - w/o spline (Power Shift), Includes: Ref. 26

1шт.

26

A58778

GEAR

- ring (139 teeth)

1шт.

27

114-621

BOLT

- (5/8 x 1-3/4" N.C. hex.)

6шт.

30

A5777

FLYWHEEL ASSY. - w/spline (Mechanical Shift), Includes: Ref. 31

1шт.

31

A58778

GEAR

- ring (139 teeth)

1шт.

32

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crankhaft (2-3/4 x 3 x 1/8")

1шт.

33

114-622

X

BOLT - (5/8 x 2" N.F. hex.)

6шт.
