Запчасти Case IH 770 (364) - CAB, ELECTRICAL EQUIPMENT A WIRING, PLENUM (09) - CHASSIS/ATTACHMENTS

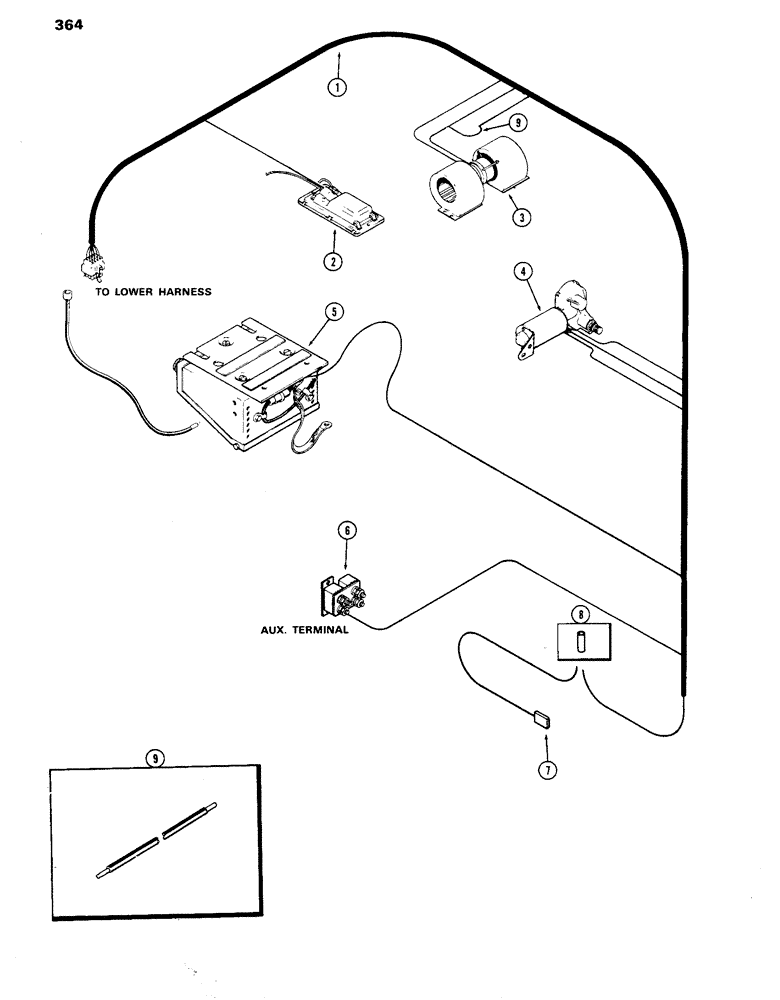

Схема запчастей Case IH 770 - (364) - CAB, ELECTRICAL EQUIPMENT A WIRING, PLENUM (09) - CHASSIS/ATTACHMENTS
9
5
2
6
1
8
7
4
9
3

Артикул

Название

Примечание

Количество

1

F63281

HARNESS

ASSY. - plenum wire

1шт.

2

A42658

INTERIOR LIGHT

LIGHT - dome

1шт.

3

NSS

NOT SOLD SEPARAT

BLOWER ASSY. - cab air (See Fig. 368)

1шт.

4

A42692

MOTOR

ASSY. - windshield wiper (See Fig. 366)

1шт.

5

A62456

RADIO

KIT - (See Fig. 370)

1шт.

6

A59704

BREAKER

- circuit, auxiliary terminal

1шт.

7

A42931

ELECTRICAL WIRE

WIRE - harness to high temp. therm. (See Fig. 380)

1шт.

8

A42671

CONNECTOR, ELEC

CONNECTOR - wire, solderless

4шт.

9

A42652

ELECTRICAL WIRE

WIRE - resistor, blower speed adjust

1шт.

Wire color is coded white, orange & purple and is connected between the white & brown 16" harness wires

1шт.

Выбрано товаров: 10
