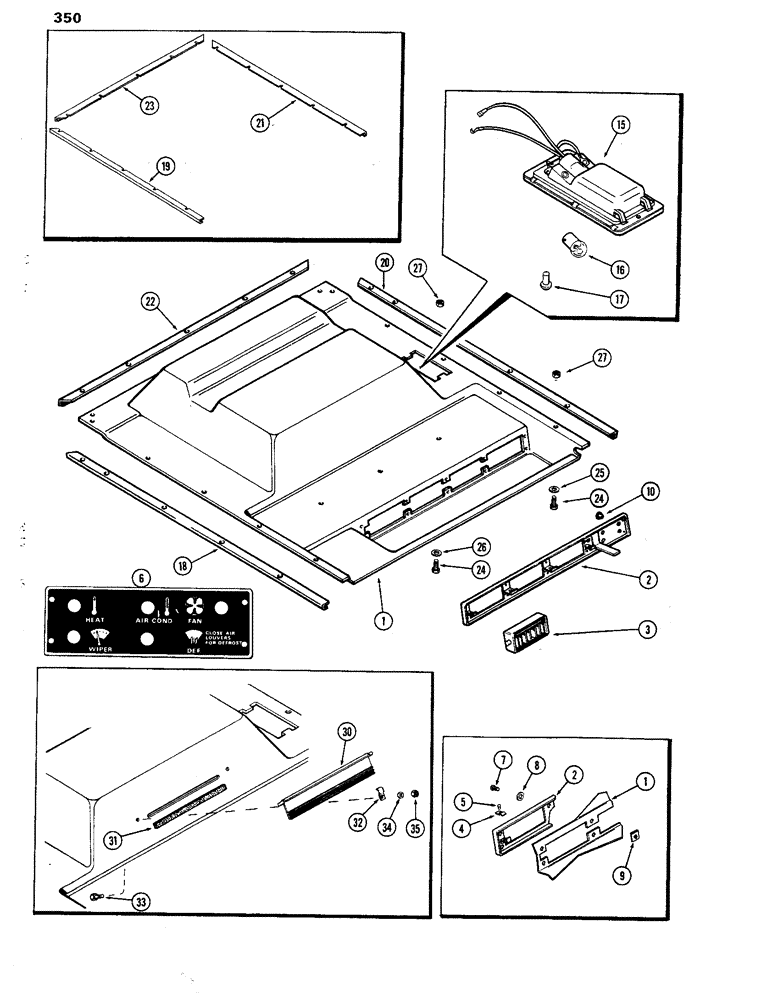

Запчасти Case IH 770 (350) - CAB, HEADLINER (09) - CHASSIS/ATTACHMENTS

F89664

CAB

HEADLINER ASSY. - cab, Includes: Ref. 1

1шт.

1

NSS

NOT SOLD SEPARAT

HEADLINER - cab

1шт.

F63416

COVER

- headliner acoustical (See Fig. 348), Start Serial: 8693001

1шт.

F63326

PROTECTIVE COVER

COVER - headliner acoustical (See Fig. 348), Serial Range: -8693001

1шт.

2

A42641

PANEL

ASSY. - control (Replaces A42552), Includes: Ref. 3 - 6

1шт.

3

F89673

GUARD

LOUVER - air direction control

3шт.

4

A42575

CLIP

- louver mounting

6шт.

5

151-502

RIVET,Pop, 1/8" x 5/16"

- pop

6шт.

6

321-1914

DECAL

- control panel

1шт.

7

173-281

SCREW,Phil Rnd Hd, #10 - 24 x 3/4"

- #10 x 3/4" N.C. phillips

10шт.

8

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16"

4шт.

9

131-861

SPRING NUT,Tinn, U, #10-24

10шт.

10

353-403

PLUG,Dome, .437" hole, Nylon

Panel, Switch holes Dome, .437" hole, Nylon

1шт.

15

A42658

INTERIOR LIGHT

LIGHT ASSY. - dome, Includes: Ref. 16

1шт.

16

A41742

BULB

- dome light

1шт.

17

151-526

RIVET,Pop, 1/8" x .337"

2шт.

18

F63452

SOFT TRIM

TRIM - headliner, R.H., Start Serial: 8693001

1шт.

19

F63270

ORNAMENTAL STRIP

TRIM - headliner, R.H., Serial Range: -8693001

1шт.

20

F63453

SOFT TRIM

TRIM - headliner, L.H., Start Serial: 8693001

1шт.

21

F63271

ORNAMENTAL STRIP

TRIM - headliner, L.H., Serial Range: -8693001

1шт.

22

F63454

SOFT TRIM

TRIM - headliner, rear, Start Serial: 8693001

1шт.

23

F63276

ORNAMENTAL STRIP

TRIM - headliner, rear, Serial Range: -8693001

1шт.

24

163-13

SCREW,Hex, #10 - 24 x 3/4"

- #10 x 3/4" N.C. hex.

18шт.

25

195-511

WASHER,#10

- 13/64 x 15/32 x 3/64"

15шт.

26

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16"

3шт.

26

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

3шт.

27

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

18шт.

30

F89764

FLAP

VALVE - pressure adjusting, front mounted

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - valve, 1/2 x 1/8 x 11" (Order A42905)

1шт.

A42905

FOAM

SEAL - valve (50' roll)

1шт.

32

F63260

CLIP

- valve hinge

2шт.

33

163-11

SCREW,Hex, #10 - 24 x 9/16"

- #10 x 9/16" N.C. hex.

2шт.

34

195-511

WASHER,#10

- 13/64 x 15/32 x 3/64"

2шт.

35

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

2шт.
