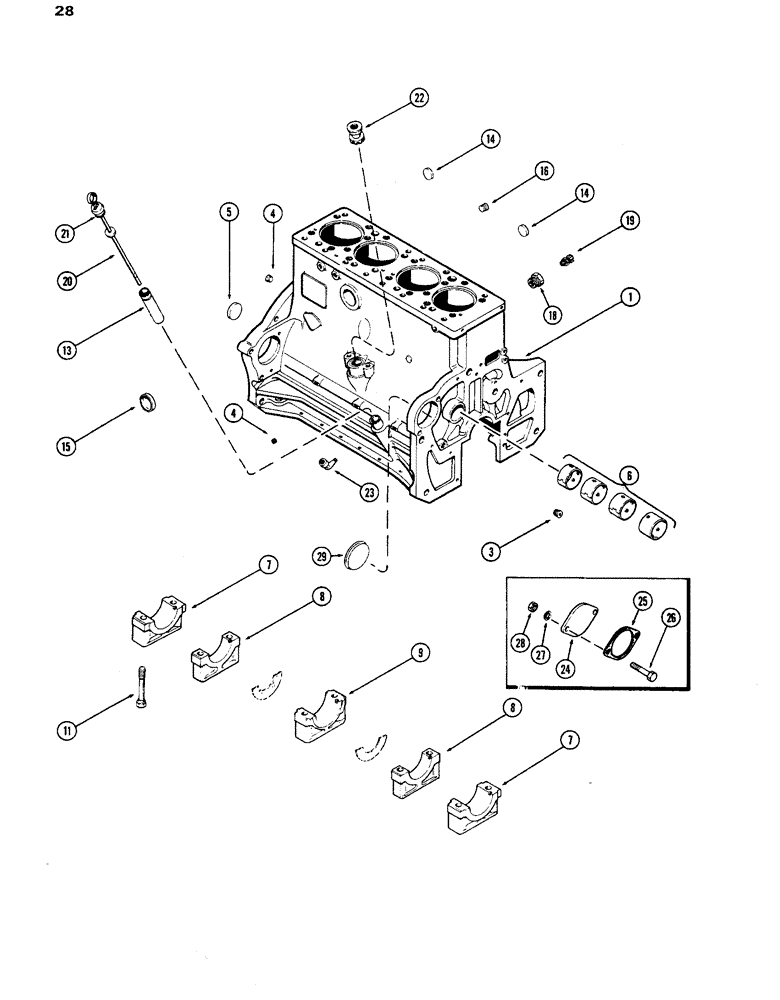

Запчасти Case IH 770 (028) - CYLINDER BLOCK ASSEMBLY, 267B DIESEL ENGINE (02) - ENGINE

A43051

SKELETON ENGINE

BLOCK ASSY. - short (Includes stripped block, pistons, conn. rods, & brgs., crankshaft & brgs., camshaft & bushings, timing gears & push rod lifters) (Casting #158501), Includes: Ref. 1 - 15

1шт.

1

A41961

BLOCK

ASSY. - stripped (Casting #A58501), Includes: Ref. 3 - 15

1шт.

3

221-1843

PLUG

- (3/8" P.T., hex. sckt. hd.)

4шт.

4

221-41

PLUG

- (1/8" P.T., slotted headless)

2шт.

5

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

6

A23577

KIT

BUSHING KIT - camshaft

1шт.

7

A58783

BEARING CAP

CAP - main bearing, wide

2шт.

8

A58784

BEARING CAP

CAP - main bearing, narrow

2шт.

9

A58785

BEARING CAP

CAP - main bearing, thrust

1шт.

11

A58566

STEP BOLT

BOLT - bearing cap (5/8 x 4-1/2" N.C.) (Special)

10шт.

13

A34540

TUBE

SOCKET - oil filler

1шт.

14

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery (1-3/8" cup type)

2шт.

15

A58569

PLUG,Cup, 2", Stainless

- (2" cup type)

1шт.

16

221-845

PLUG,Hex Soc, 3/4"-14

- pipe (3/4" hex. sckt. hd.) turbo drain hole

1шт.

18

221-58

BUSHING,Hex, 3/4" x 1/4" NPT

- reducer (3/4 x 1/4")

1шт.

19

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

20

A34541

DIPSTICK

- oil level, Includes: Ref. 21

1шт.

21

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - (3/4 x 1 x 1/8")

2шт.

22

A34266

DRIVE

ASSY. - tachometer

1шт.

23

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- (1/8 x 1/8 x 90 Deg.)

1шт.

24

A58732

COVER

- pump mounting (Order A58750)

1шт.

25

A58617

GASKET

- pump mounting cover

1шт.

26

13-65

BOLT - (3/8 x 3-1/2" N.C. hex.)

2шт.

27

492-6

WASHER - lock (3/8")

2шт.

28

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

29

A58750

PLUG,Cup, 3 1/4", Stainless

- pump opening cover (3-17/64" dia.) (Replaces ref. 24, 25, 26, 27 & 28)

1шт.
